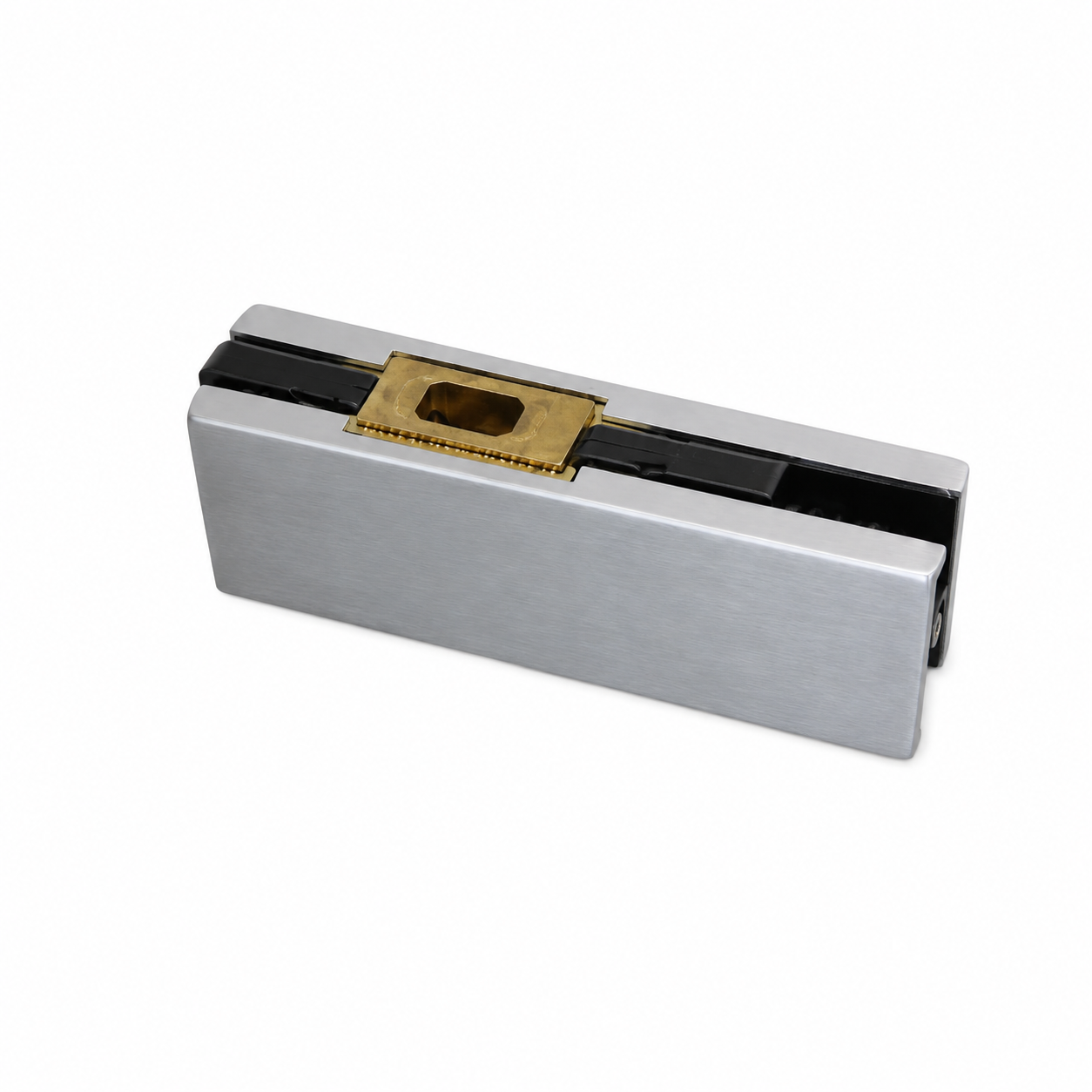

CAS41410 Bottom Patch Fitting with CAS19036 Insert for Floor Closer

Product Description

The CASMA Bottom Patch Fitting with CAS19036 Insert is engineered to provide smooth, reliable pivoting performance for frameless glass door systems. Designed for use with CASMA and Dorma floor closers, this heavy-duty patch fitting is compatible with the #53 spindle, ensuring dependable operation in commercial and residential applications.

Precision-engineered for durability and ease of installation, this bottom patch fitting features a 2-3/4" (70 mm) pivot point and includes gaskets for 3/8" (10 mm) and 1/2" (12 mm) tempered glass. Its robust construction and user-friendly design deliver smooth door movement and long-lasting performance.

Features & Specifications

• Bottom Patch Fitting

• Has Insert for Dorma and Casma #53 closer

• Cover Plates are available in a variety of finishes

• Maximum Door Width: 43-5/16"

• Glass Thickness: 5/16", 3/8", 1/2"

• Maximum Door Weight: 220 LBS.

• Glass Holding Power: 661 LBS.
