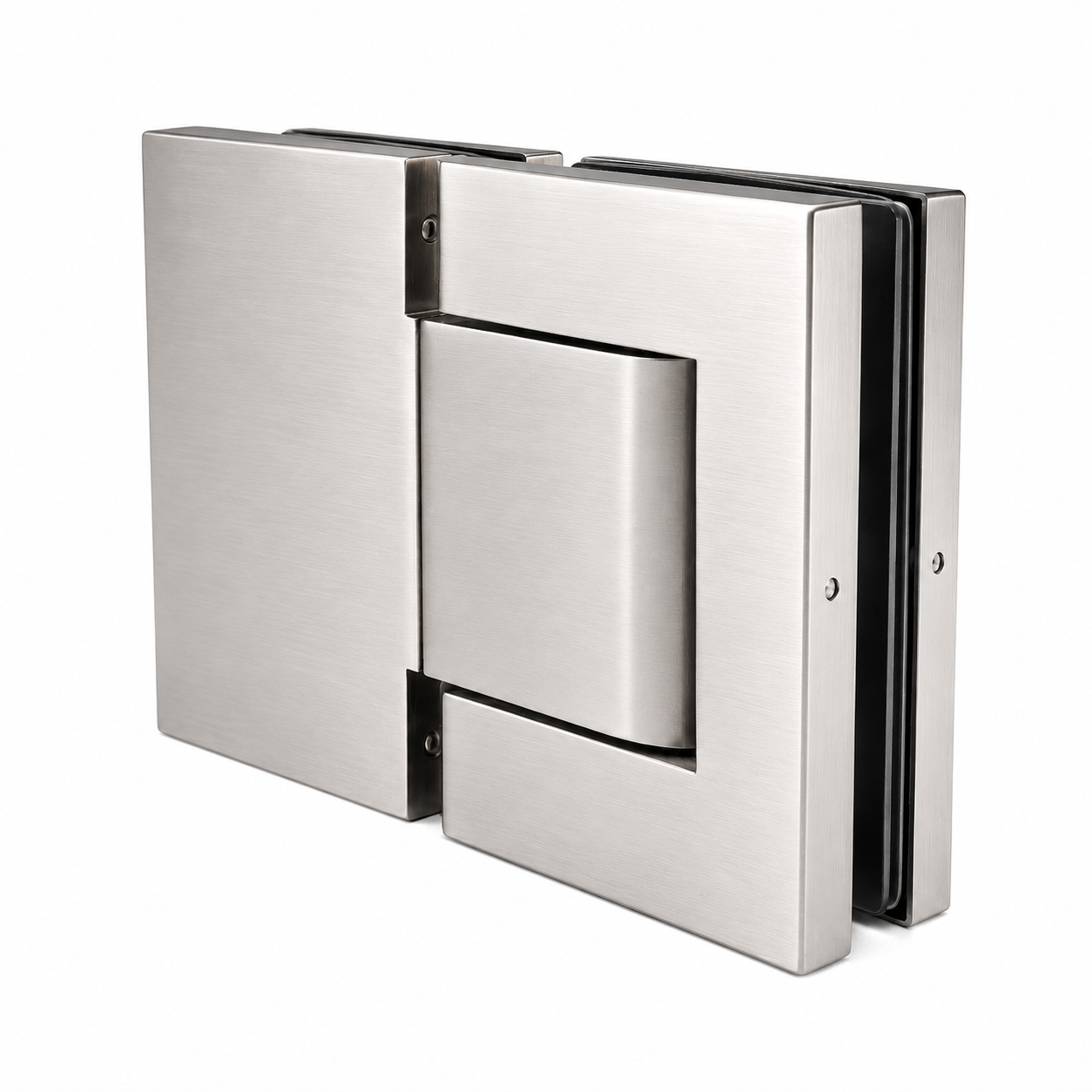

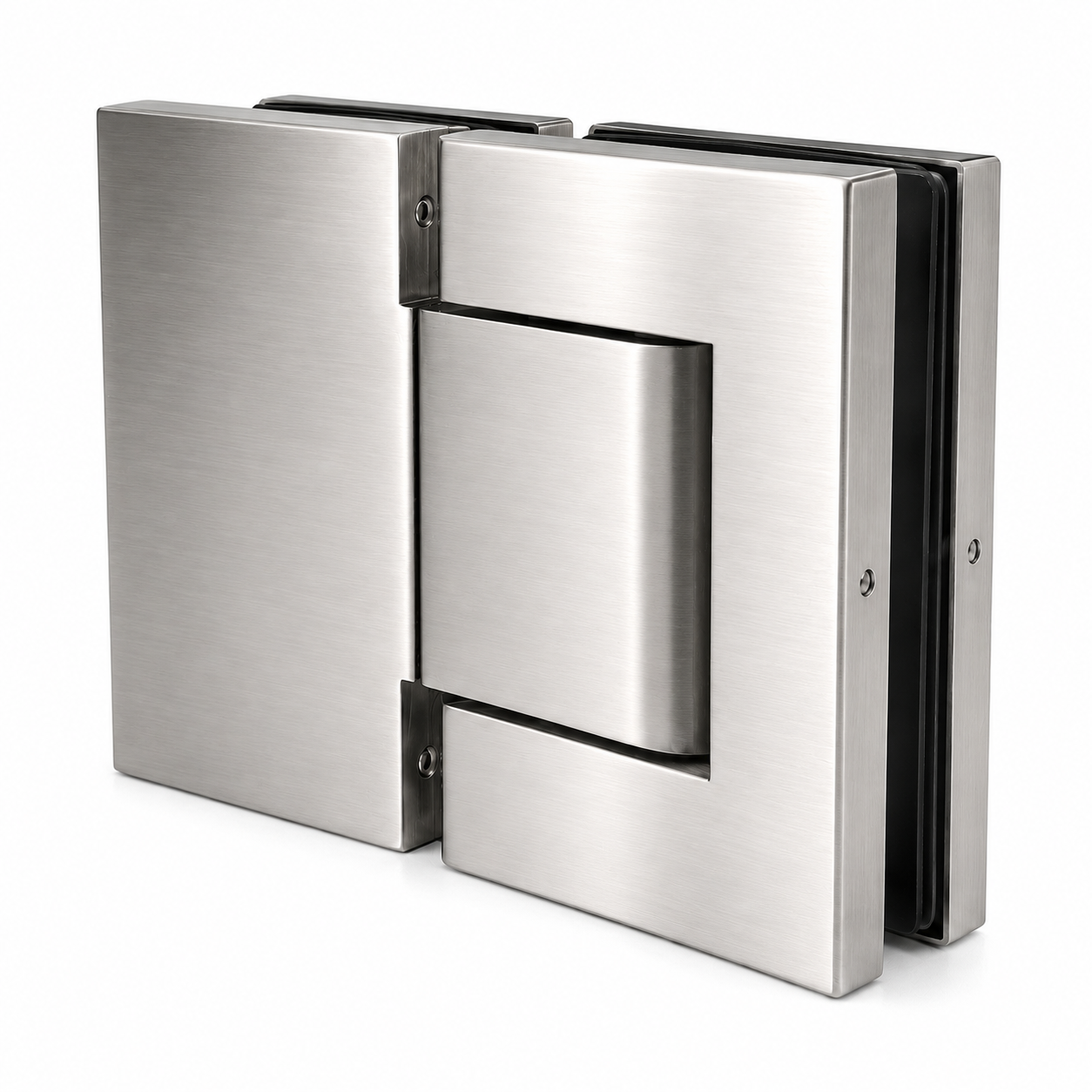

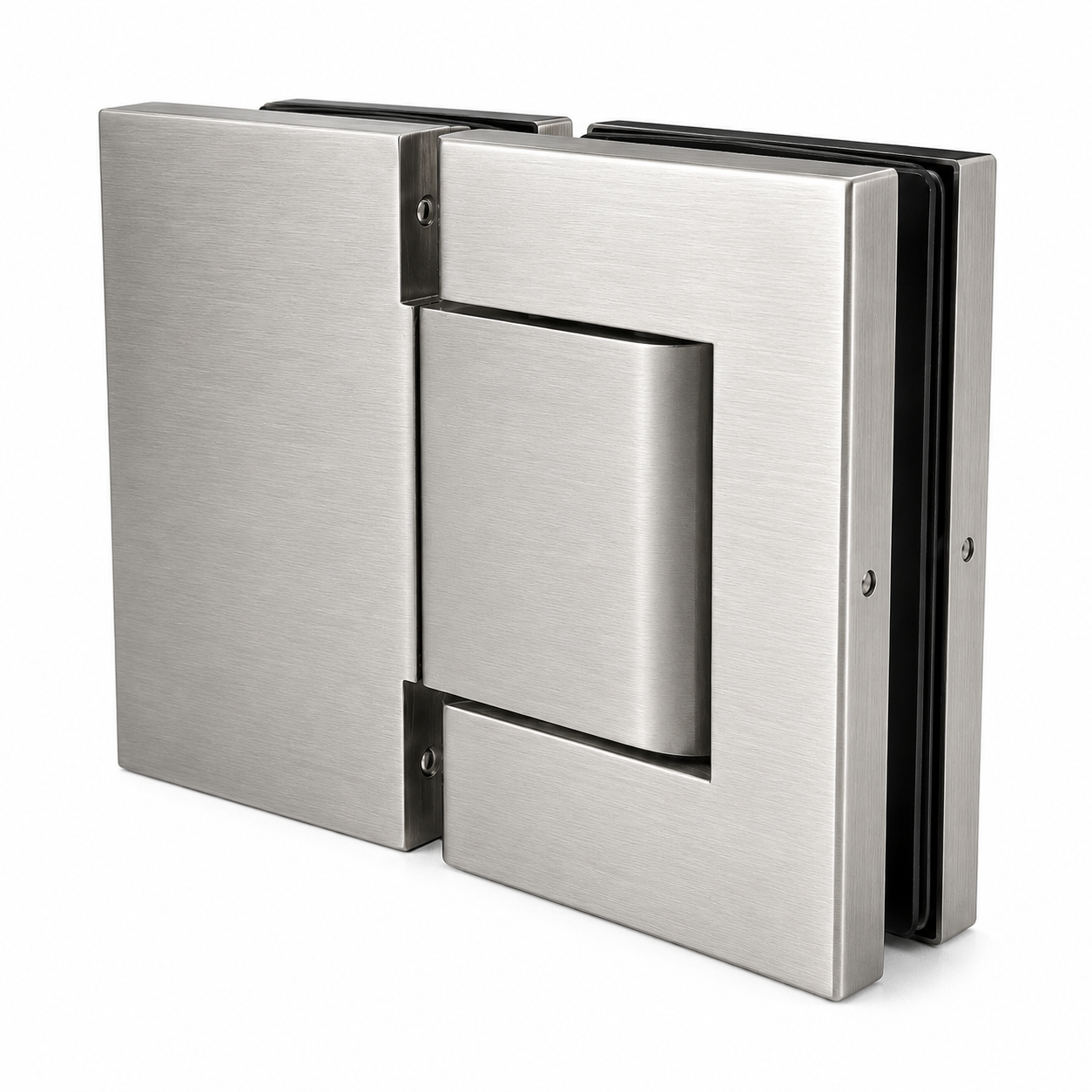

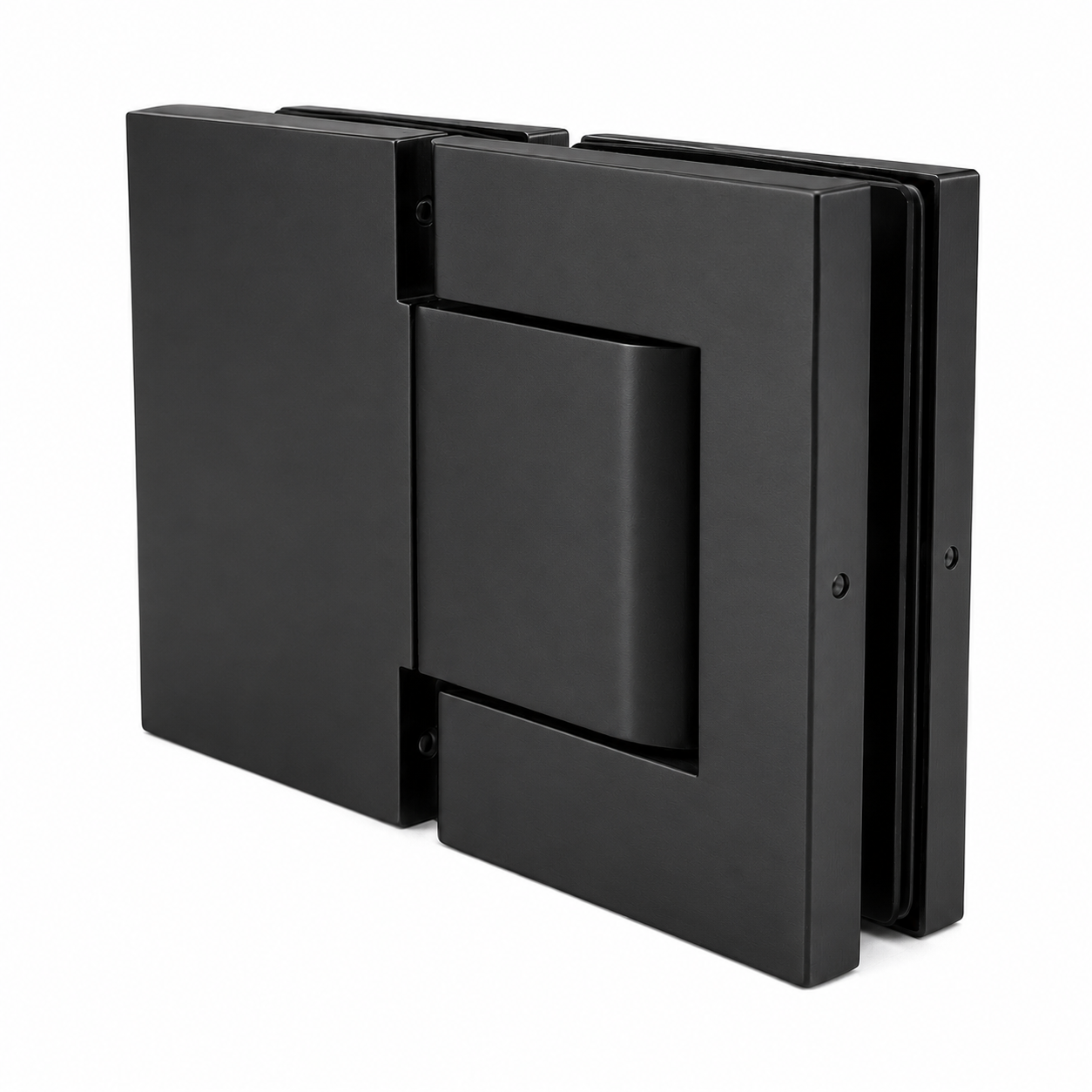

CAS4LVDS Latus Glass to Glass 180-degree Free Swinging Hinge

Product Description

The LATUS 80 Glass-to-Glass 180° Free-Swing Hinge is engineered to provide smooth, reliable performance for modern frameless glass door systems. Designed specifically for 180-degree glass-to-glass applications, this premium hinge combines robust construction with exceptional Italian craftsmanship, making it the ideal solution for commercial and residential interiors.

Manufactured entirely in Italy, the LATUS 80 Free-Swing Hinge delivers effortless door movement while maintaining a clean, contemporary appearance. Designed to work seamlessly with the LATUS 80 Hydraulic Hinge, it offers outstanding durability and dependable performance for offices, retail spaces, hotels, and interior glass partition systems.

Features & Specifications

• Tested 500.000 cycles

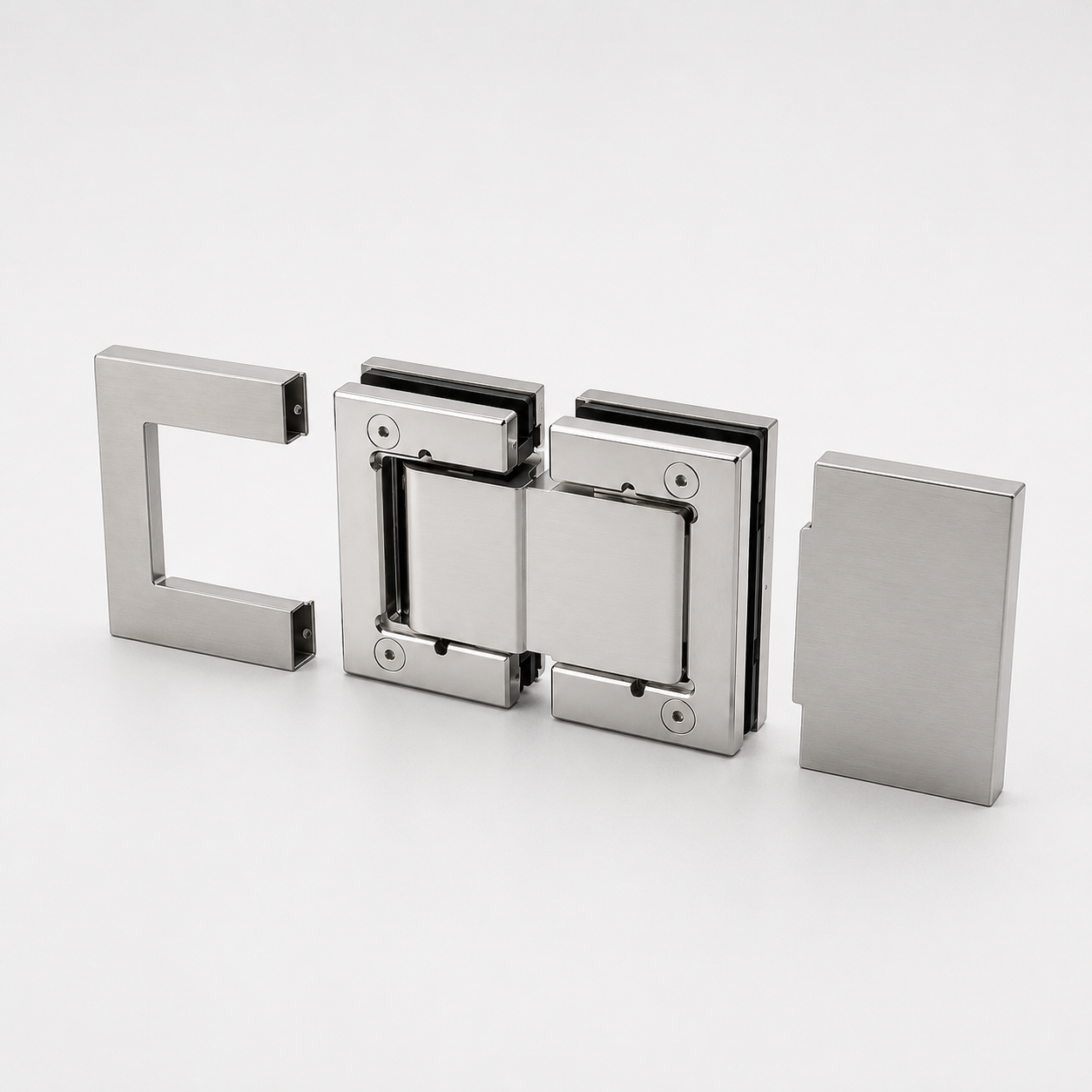

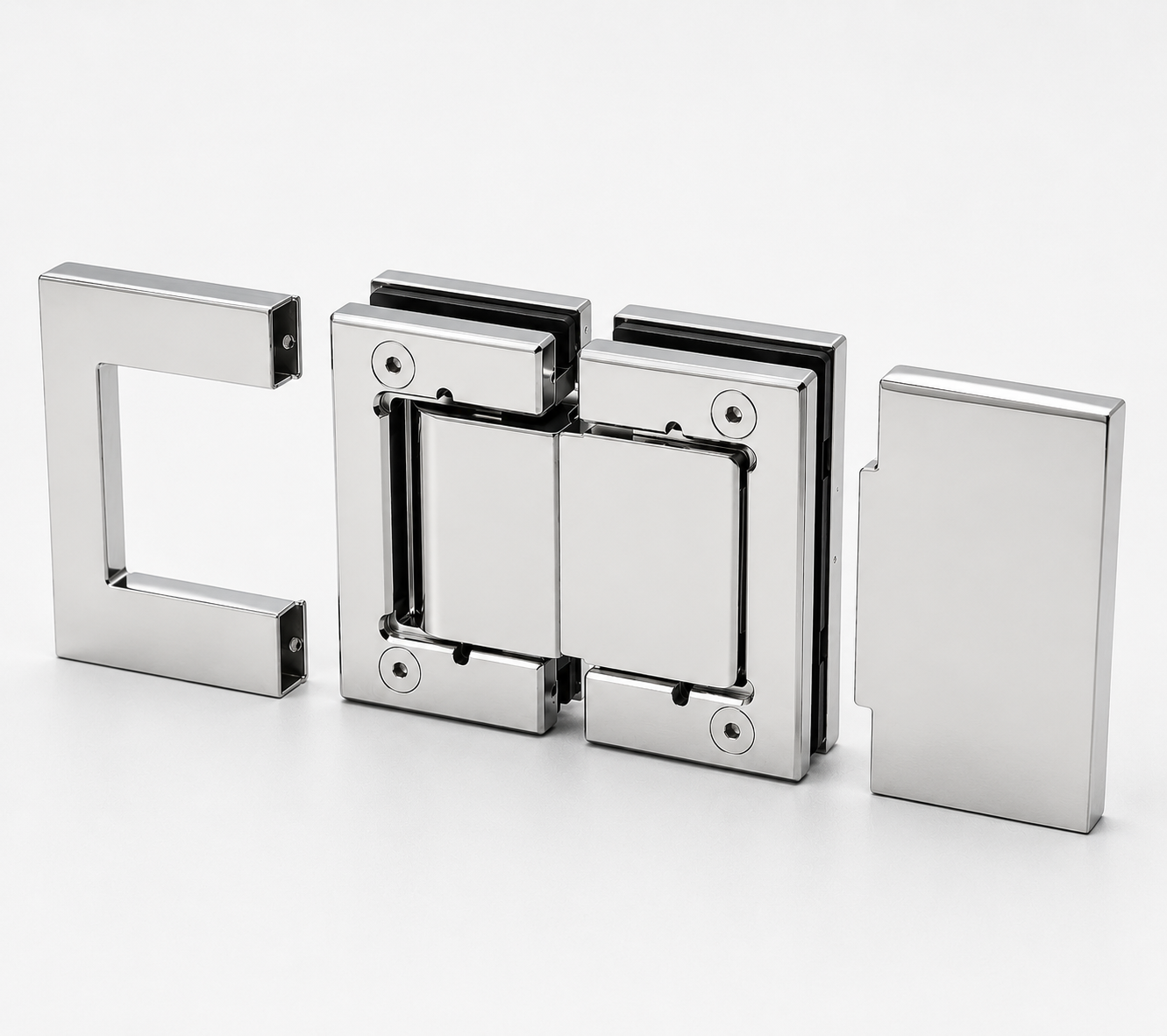

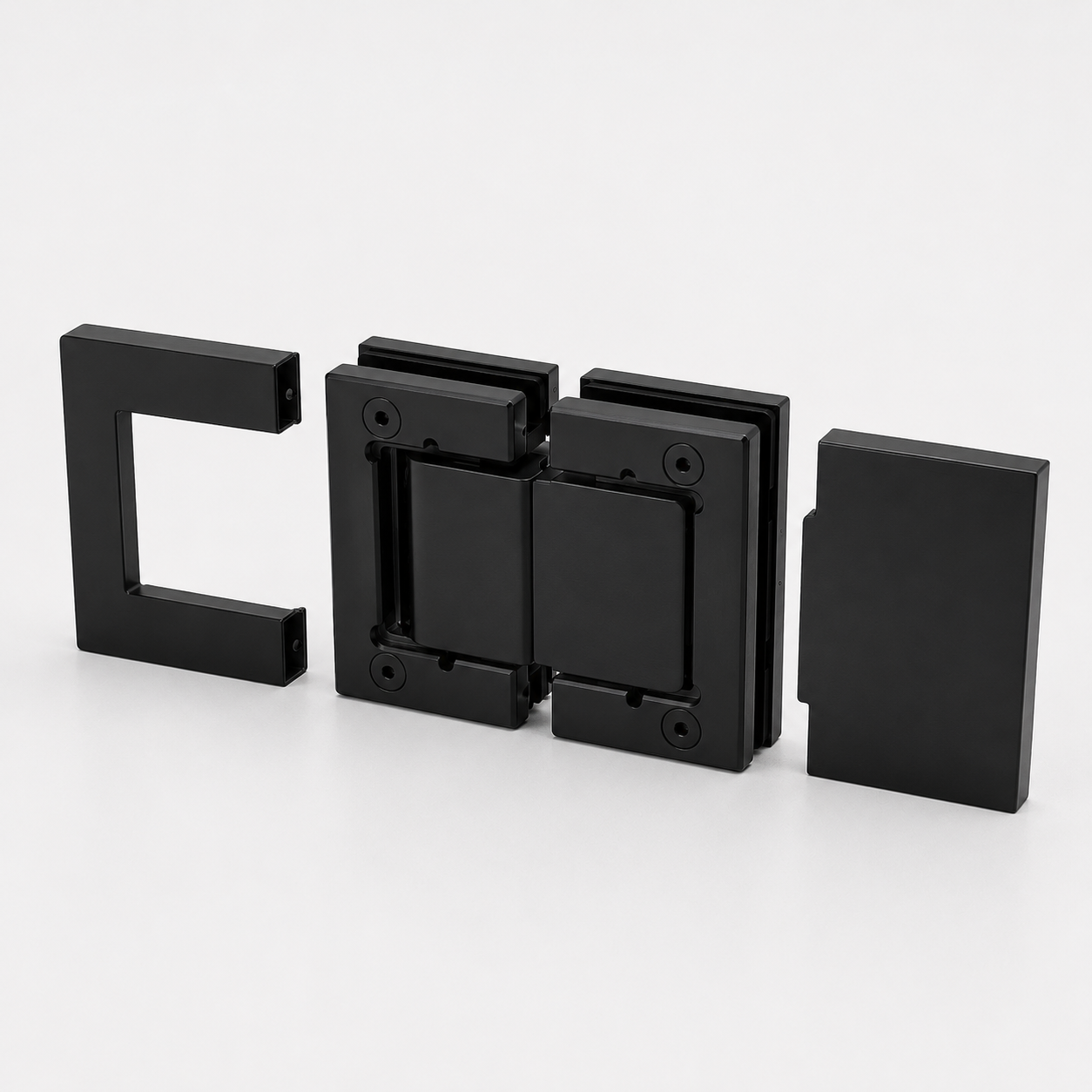

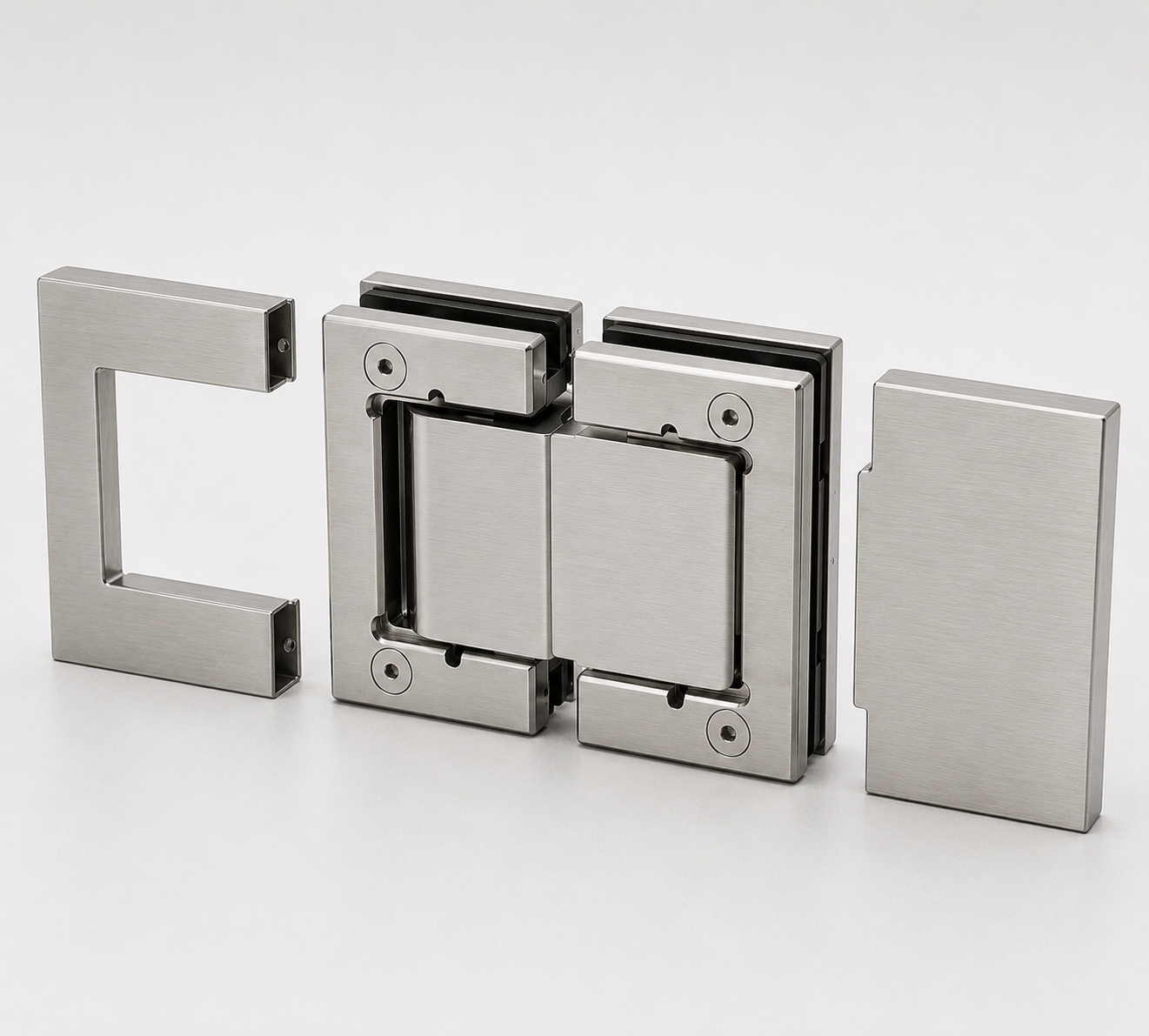

• Interchangeable covers

• Glass Thickness: 3/8”, 1/2" and 9/16”

• Max Door Width: 35-7/16" using two Free Swinging Hinges or one Free Swinging and one Hydraulic, 39-3/8" using two Hydraulic Hinges.

• Max Door Weight: 154 lbs. using two Free Swinging Hinges or one Free Swinging and one Hydraulic, 220 lbs using two Hydraulic Hinges.

• New design gasket
