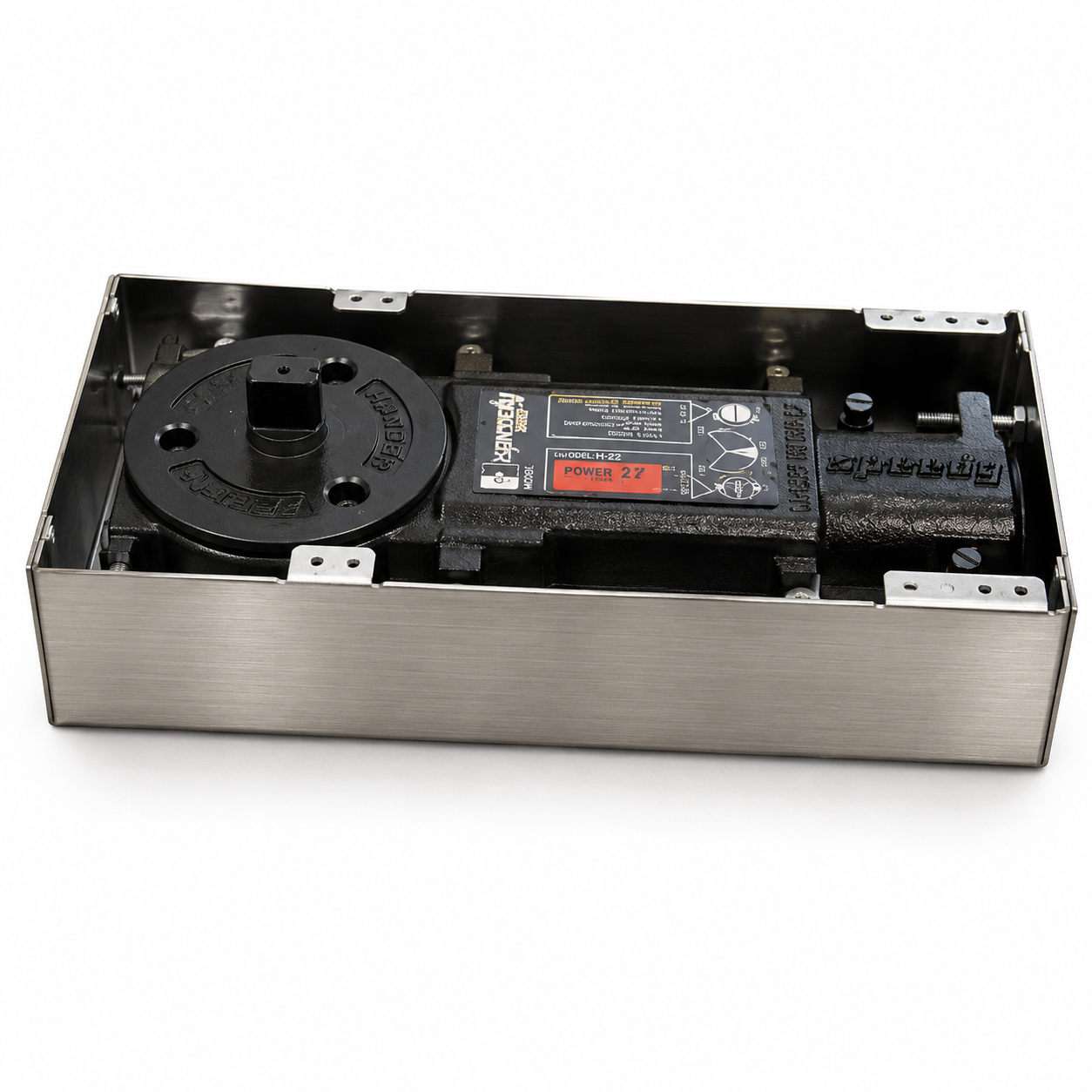

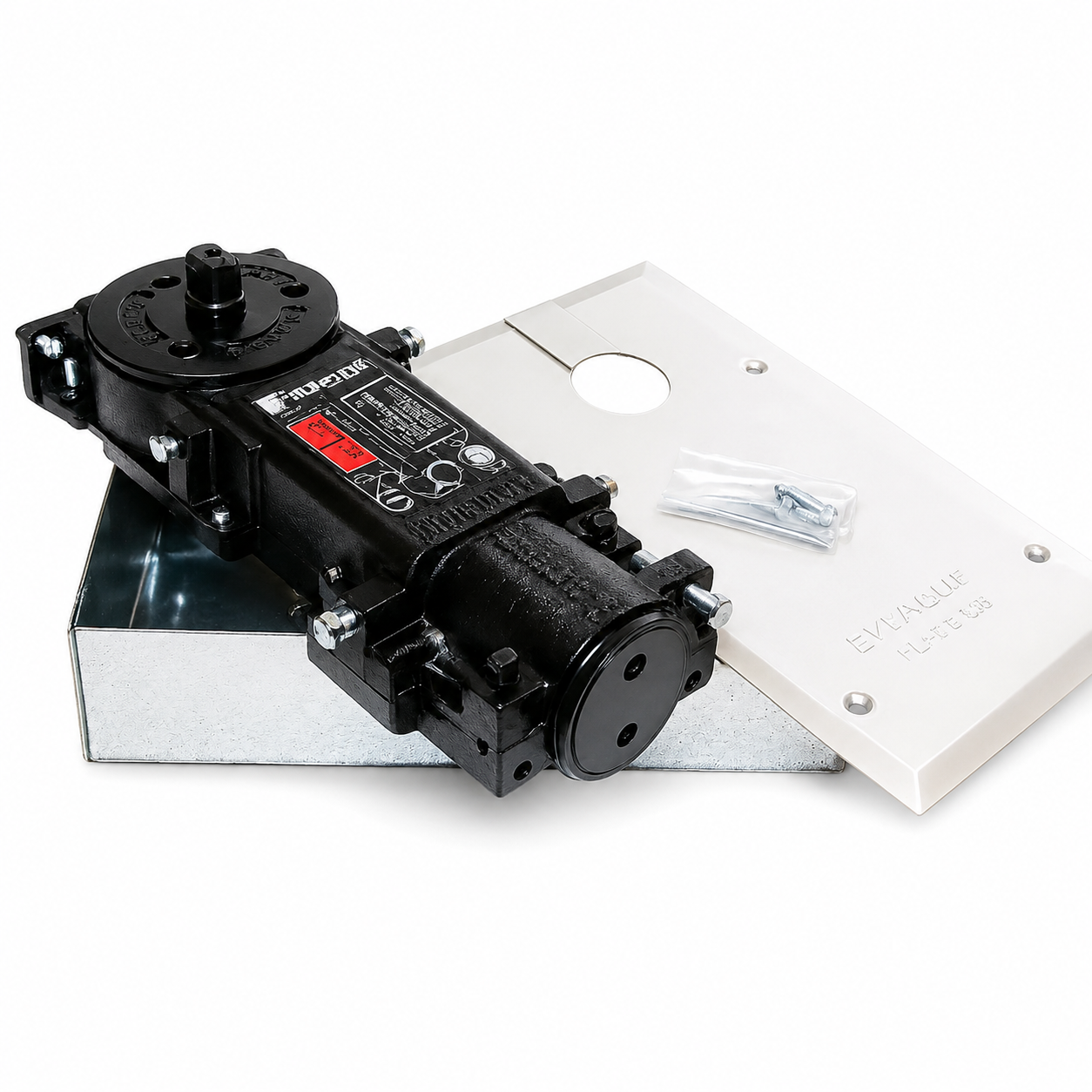

CASM25RH Red 90 Degree Hold Open Floor Closer

Product Description

Red 90 Degree Hold Open M25 Floor Closer for up to 40 IN Door opening. Casma has been a leading producer of Italian-made floor Springs since 1942. Our extensive experience in manufacturing hydraulic hinges using the same technology has garnered us a reputation for quality and reliability. Our products feature a cast iron main body and are designed for quick and straightforward installation. The yellow strength (EN2) meets ADA 5 PSF, and the red strength (EN3) meets ADA 8 PSF.

Cover plate sold separately.

Features & Specifications

• Max door weight is 264 lbs.

• Max door width 43- 5/16”

• Cement case is 11-9/64” by 5-1/8” depth 2-9/16”

• Available models

• no hold open

• 90 hold open

• 105 hold open

• Interchangeable Spindles have been installed over 5,000,000 times worldwide and can be specially ordered to accommodate doors weighing up to 700 lbs.
