  • SKU: LEG135-BN

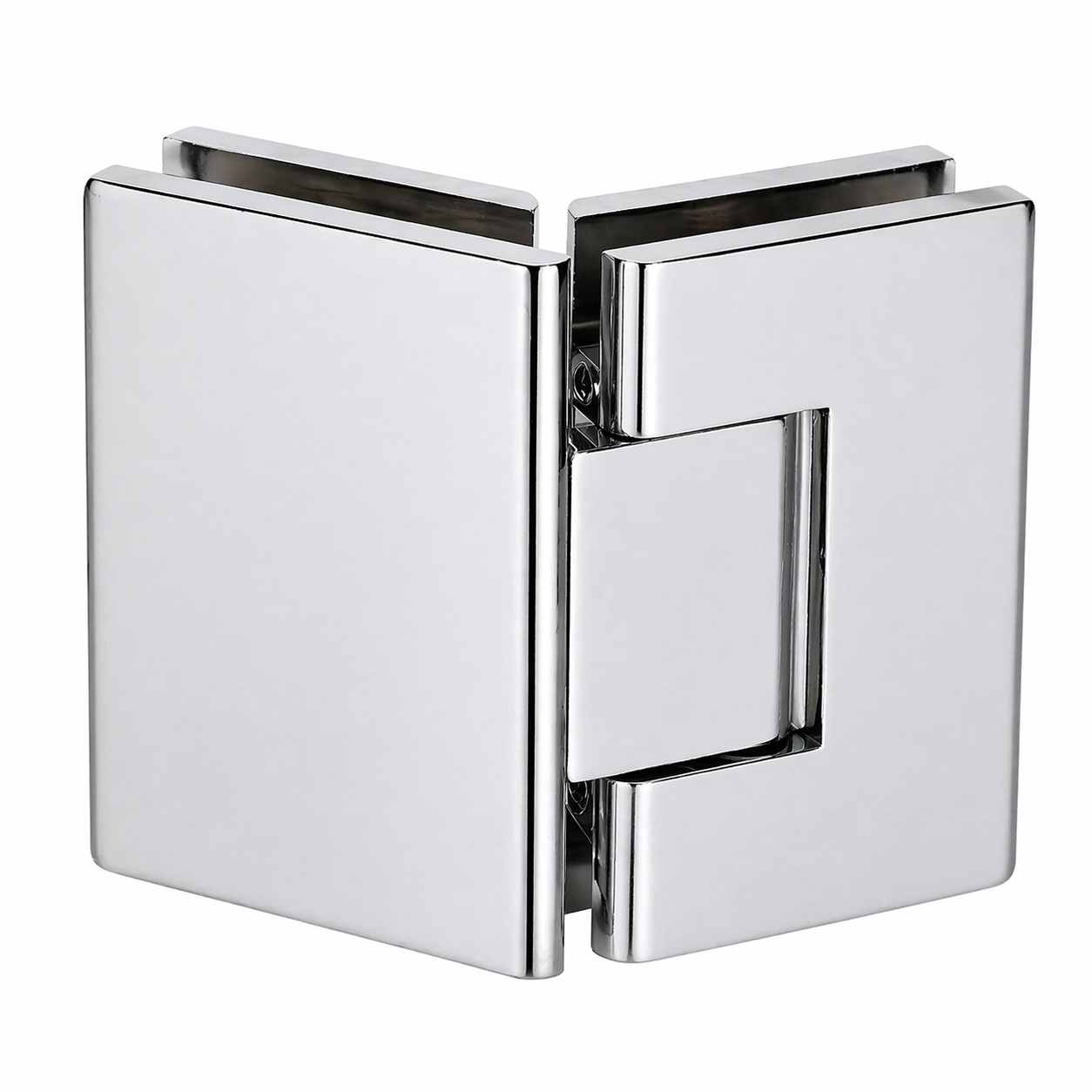

Legacy Series 135° Hinge

To see the price please, Sign In

Technical Drawing

Same Day Shipping, Orders placed Before 3pm EST

Quality Guarantee

In stock, ready to ship

  • Barcode:
Description

Glaze Hardware Heavy duty 135° glass-to-glass hinge with reversible pin for a positive closing position. As the Legacy Series hinges are factory-set to 135 degrees for a standard closing position, they are able to provide a heavy-duty frameless appearance without requiring extensive hardware.



  • 135° Glass to Glass Heavy Duty Model
  • Self-Centering Within 15° of Closing Position
  • Compatible with Monolithic Tempered Glass
  • Designed For 3/8" or 1/2" Tempered Glass

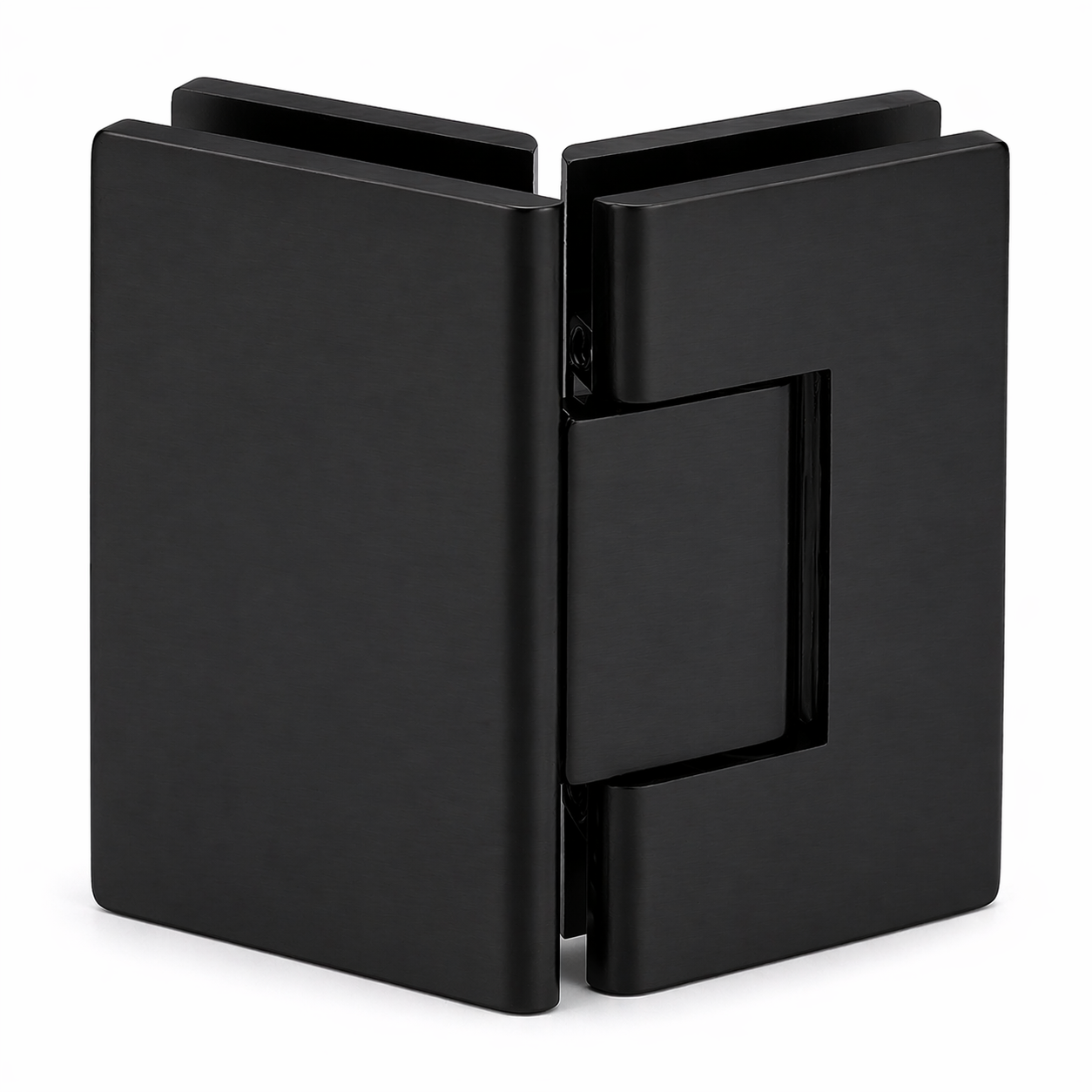

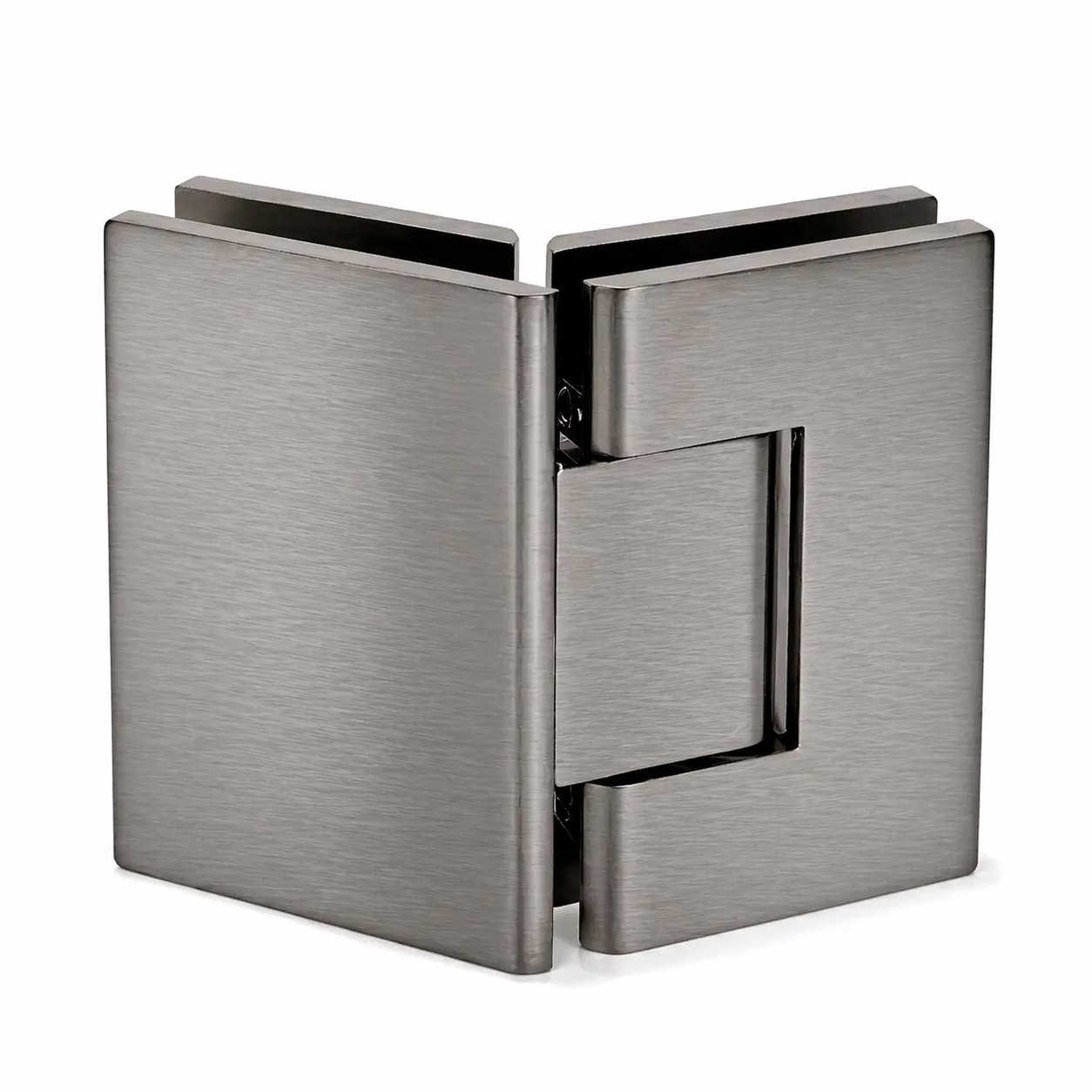

  • Available in Different Finishes
Product Details
  • BACKPLATE:
    135º ANGLE
  • GLASS THICKNESS:
    3/8" - 1/2"
  • MATERIAL:
    BRASS
  • SELF-CENTERING:
    YES
  • 5 DEGREE PRE-SET:
    NO
  • MAX DOOR WEIGHT:
    110 LBS (2 HINGES)
  • MAX DOOR WIDTH:
    36 INCH (2 HINGES)
  • MODEL:
    HEAVY DUTY - LEGACY
  • MOUNT:
    GLASS TO GLASS
  • ADJUSTABLE:
    NO
