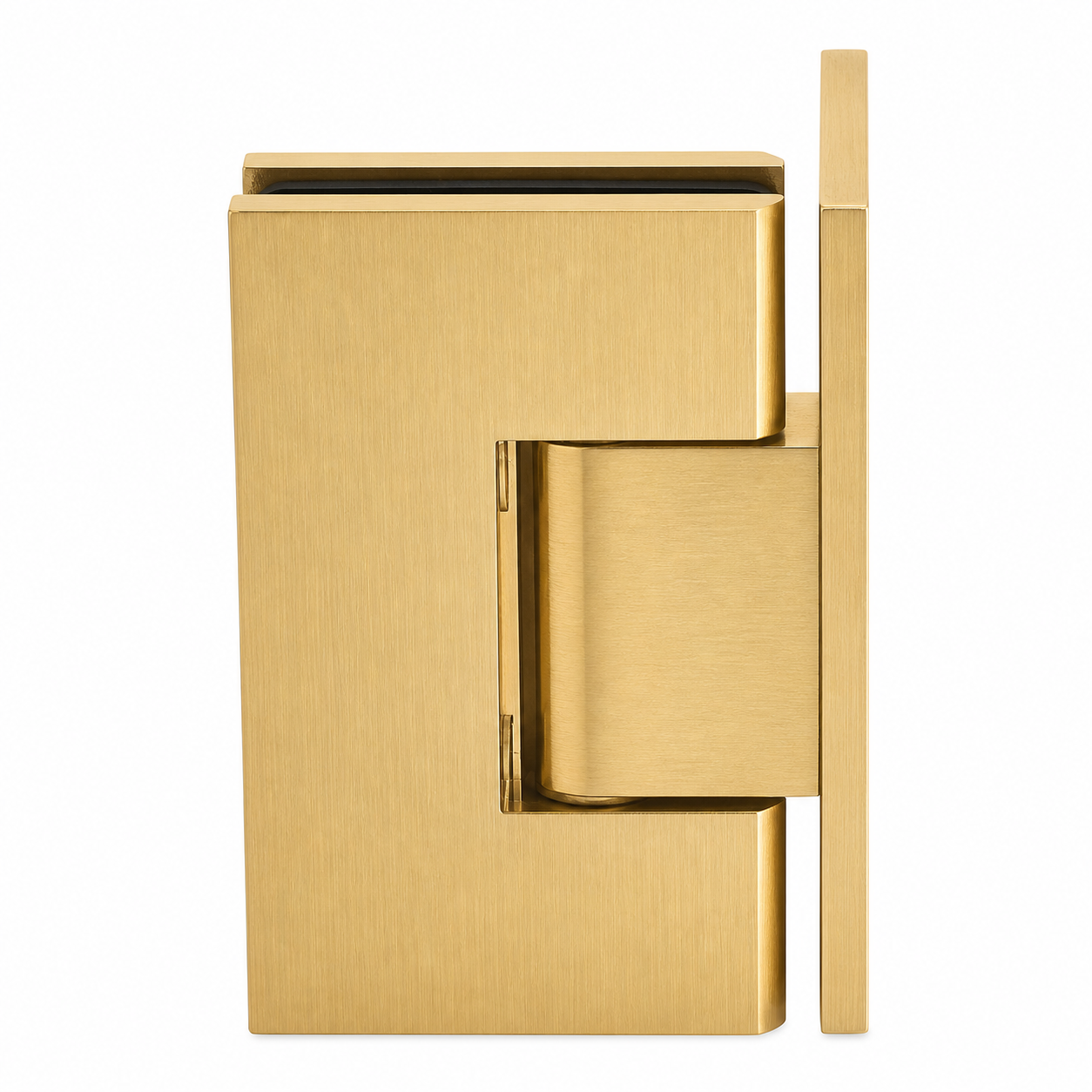

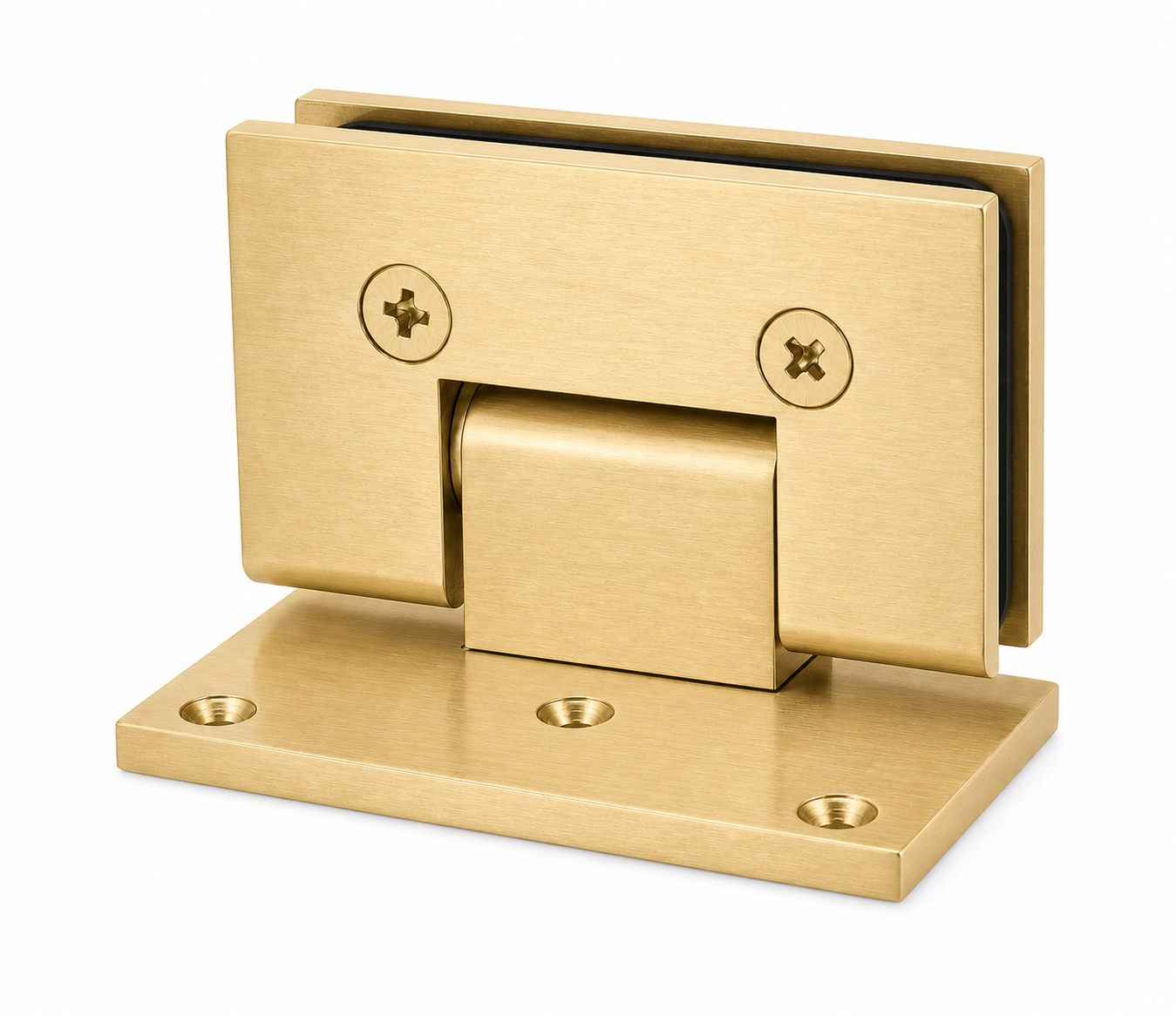

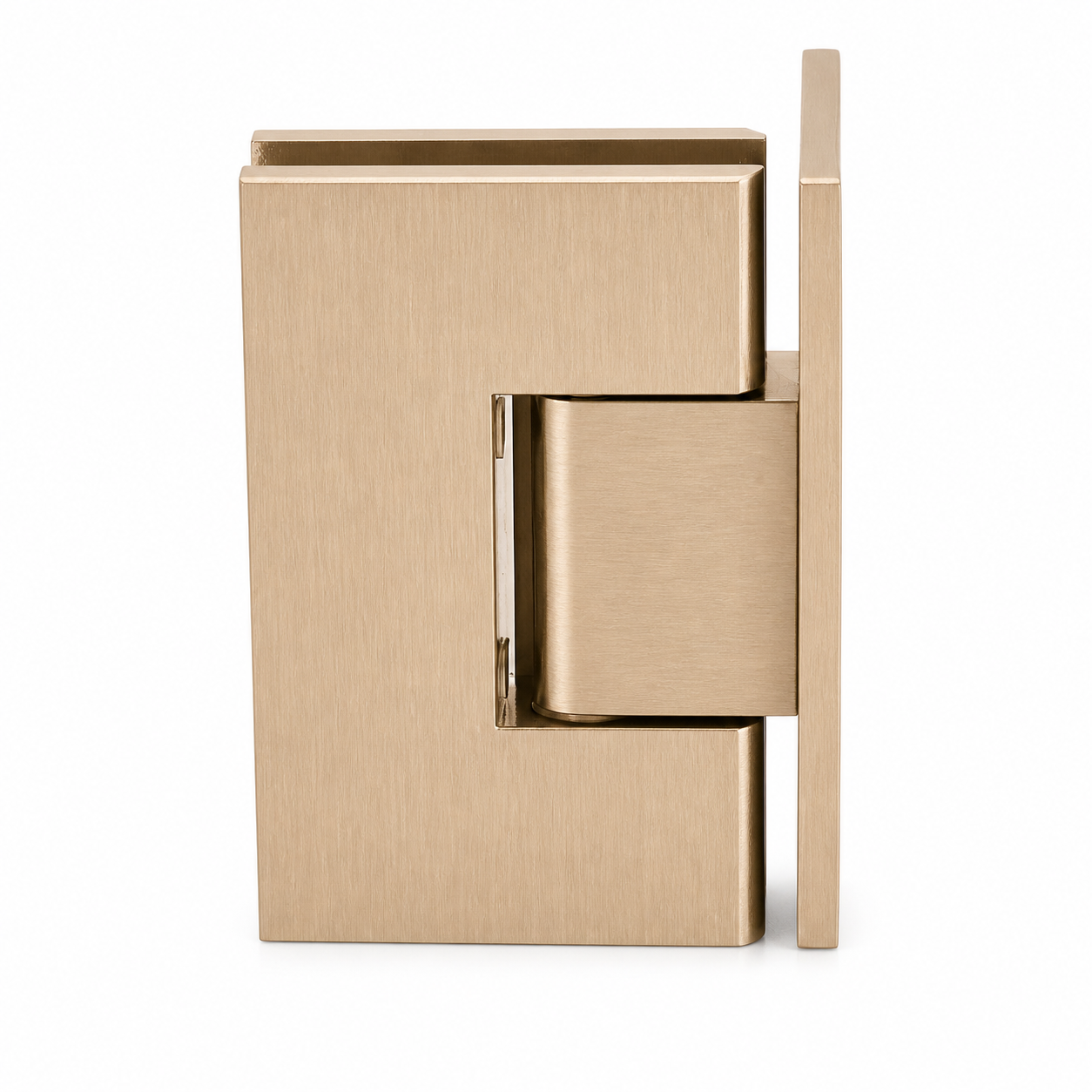

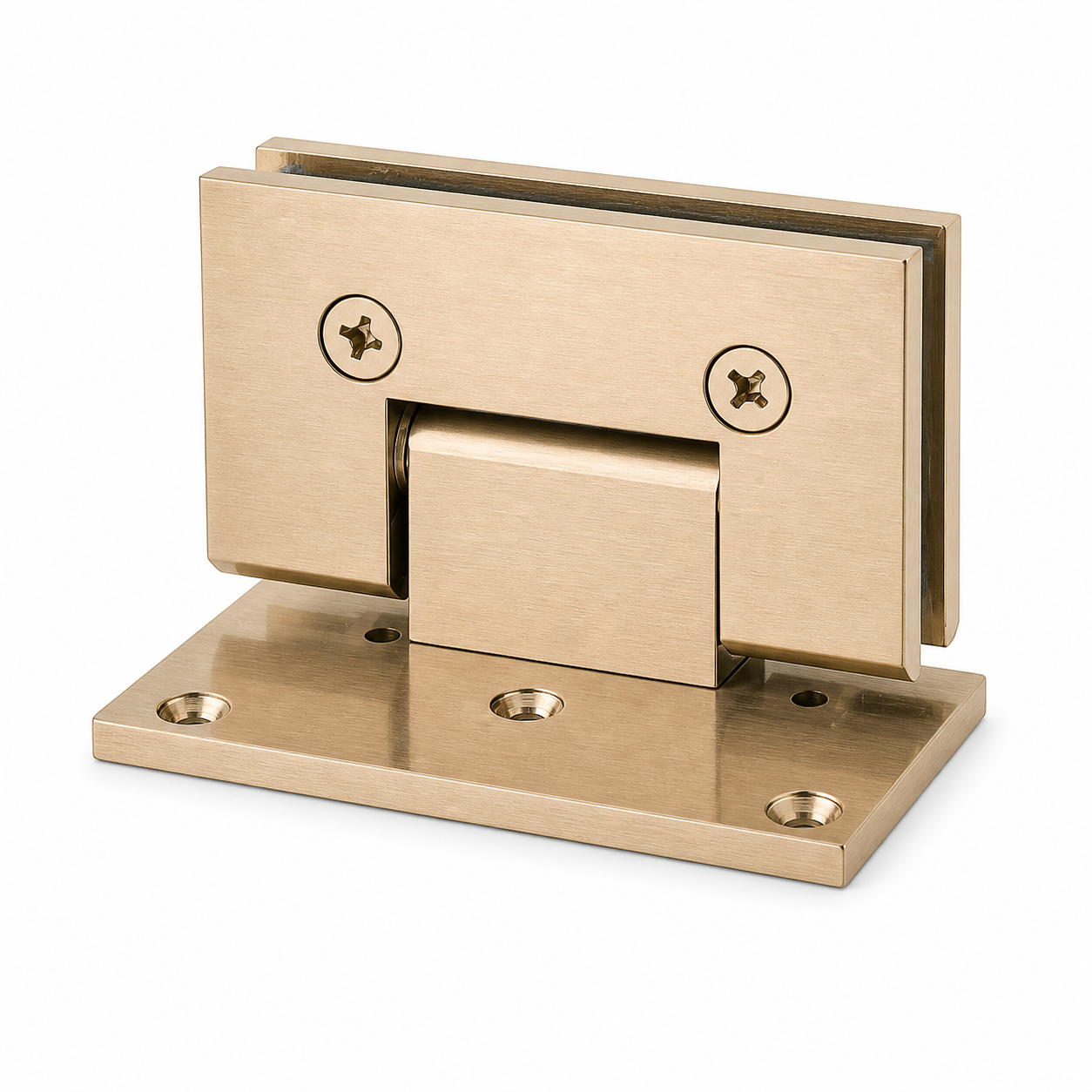

Sublime Series Offset Hinge 2.0
Sublime Series Offset Hinge 2.0
Sublime Series Offset Hinge 2.0
Sublime Series Offset Hinge 2.0
Sublime Series Offset Hinge 2.0
Sublime Series Offset Hinge 2.0
Sublime Series Offset Hinge 2.0
Sublime Series Offset Hinge 2.0
Sublime Series Offset Hinge 2.0
Sublime Series Offset Hinge 2.0
Sublime Series Offset Hinge 2.0
Sublime Series Offset Hinge 2.0
Sublime Series Offset Hinge 2.0
Sublime Series Offset Hinge 2.0
Sublime Series Offset Hinge 2.0
  • SKU: SUB10-OS-BN

Sublime Series Offset Hinge 2.0

To see the price please, Sign In

Technical Drawing
Shipping Ask about this product
  • Barcode:
Description

Glaze Hardware standard duty wall-mounted hinge with offset backplate allowing full access to the opening. The Sublime Series hinge is factory-set at 90 degrees for a standard closing position, allowing a frameless appearance without the need for extensive hardware.



  • Wall-Mount Offset Back Plate Standard Model
  • Self-Centering Within 15° of Closing Position
  • Compatible with Monolithic Tempered Glass
  • Designed For 3/8" Tempered Glass
  • Available in Different Finishes
Product Details
  • BACKPLATE:
    OFFSET
  • GLASS THICKNESS:
    5/16" - 1/2"
  • MATERIAL:
    BRASS
  • SELF-CENTERING:
    YES
  • 5 DEGREE PRE-SET:
    NO
  • MAX DOOR WEIGHT:
    80 LBS (2 HINGES)
  • MAX DOOR WIDTH:
    28 INCH (2 HINGES)
  • MODEL:
    STANDARD DUTY - SUBLIME
  • MOUNT:
    WALL MOUNT
  • ADJUSTABLE:
    NO
