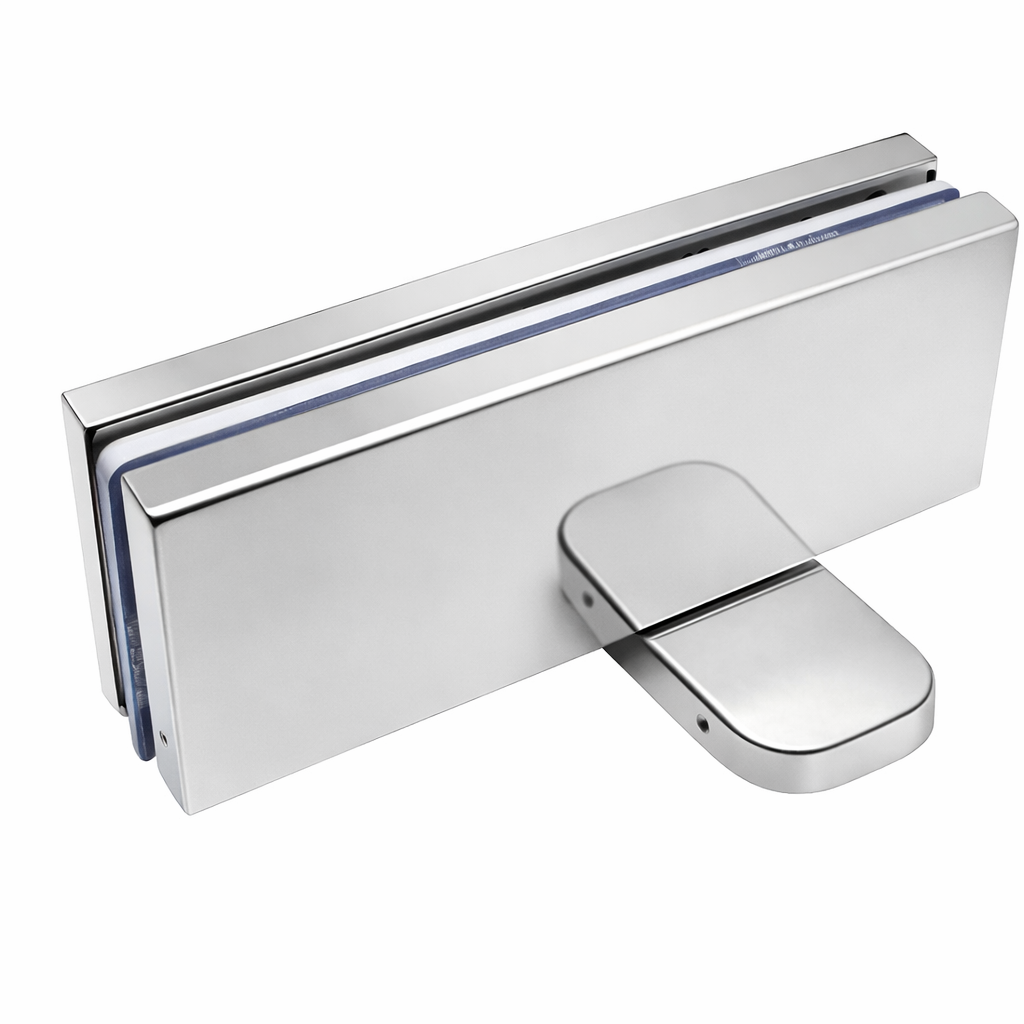

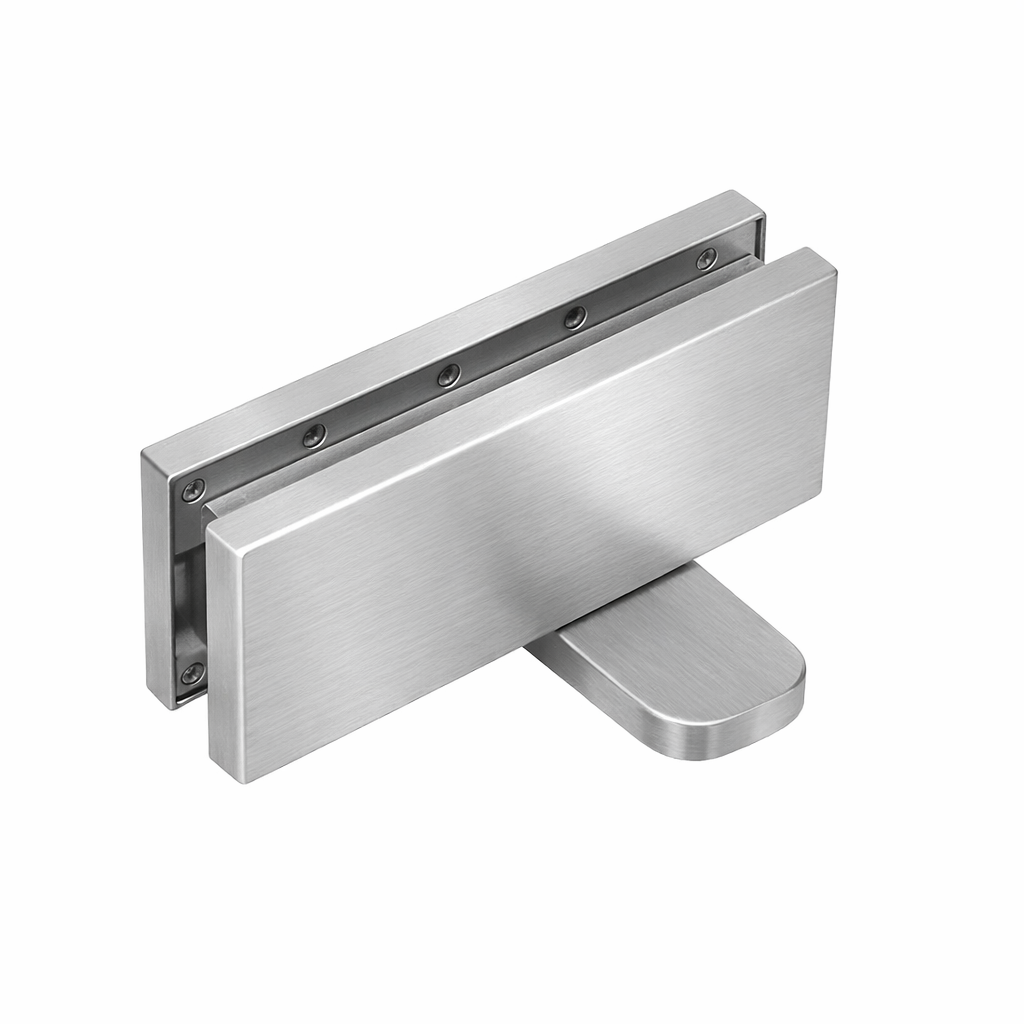

Hydraulic Patch Fitting with 2-9/16″ Setback (NHO)

Product Description

Glaze Hardware Hydraulic Patch Fittings are specifically engineered for use with E201 top patches, eliminating the need for overhead or floor-mounted closing devices. Designed for interior applications, these medium-duty hydraulic fittings provide smooth, controlled door operation with adjustable performance.

Equipped with two adjustable screws, the fittings allow precise control of both latching speed and swing speed, ensuring reliable and consistent door movement. Suitable for doors up to 39″ wide with a maximum weight of 220 lbs, these fittings require glass fabrication for proper installation and deliver a clean, flush-mounted appearance.

Features & Specifications

• Hydraulic patch fittings

• Designed for use with E201 top patches

• Flush mount – no floor holes required

• 2-9/16″ pivot point

• Adjustable latching and swing speed

• Non-hold open

• For interior use only

• Suitable for 3/8″ to 1/2″ tempered glass

• Maximum door width: 39″

• Maximum door weight: 220 lbs

• Glass fabrication required

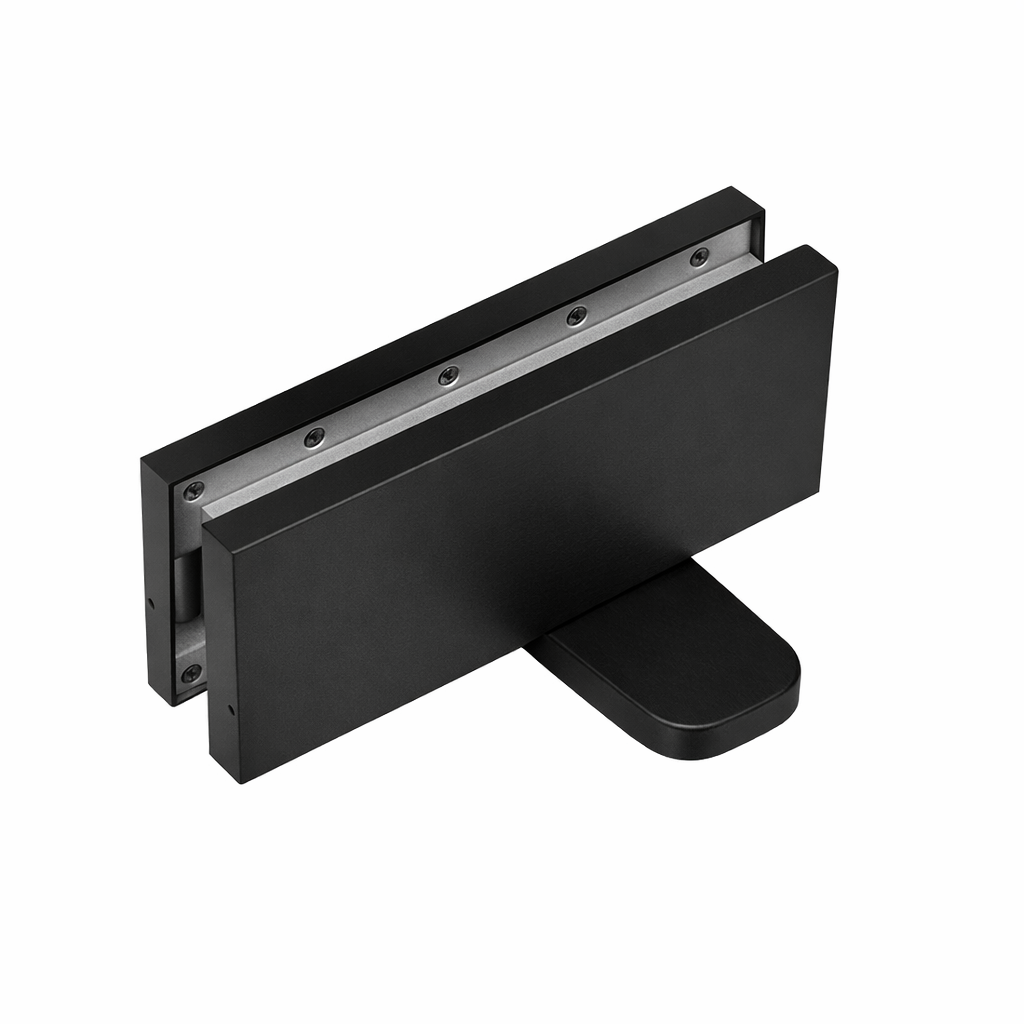

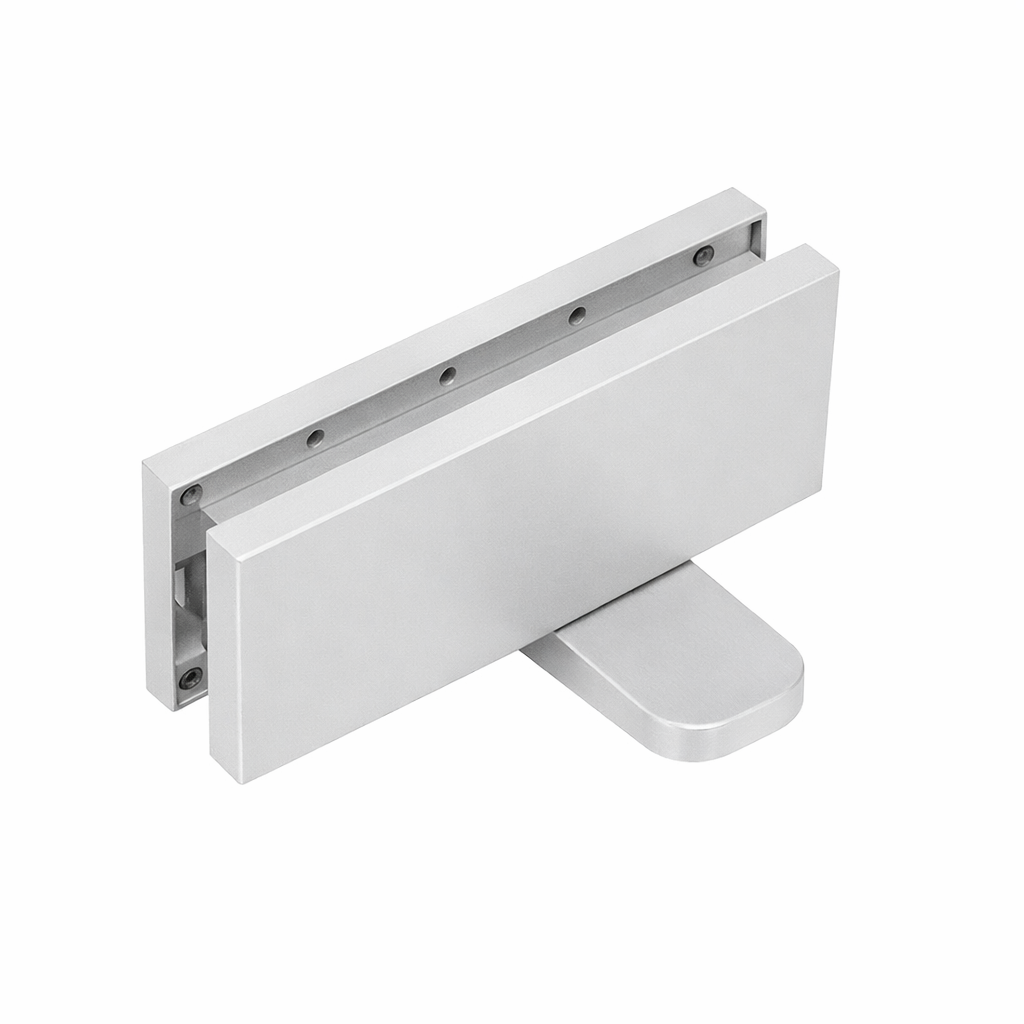

• Available in a variety of finishes
