SKU: LPHGTG-HD-BN

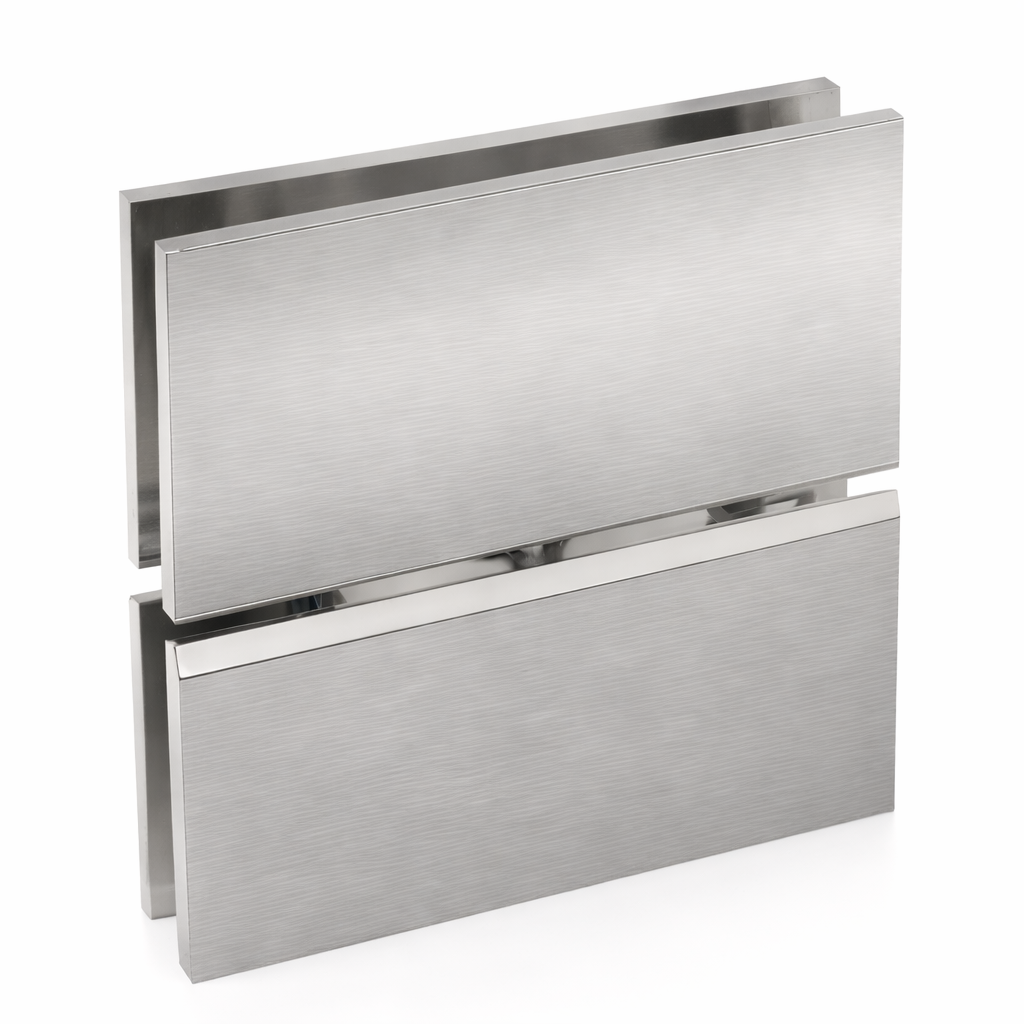

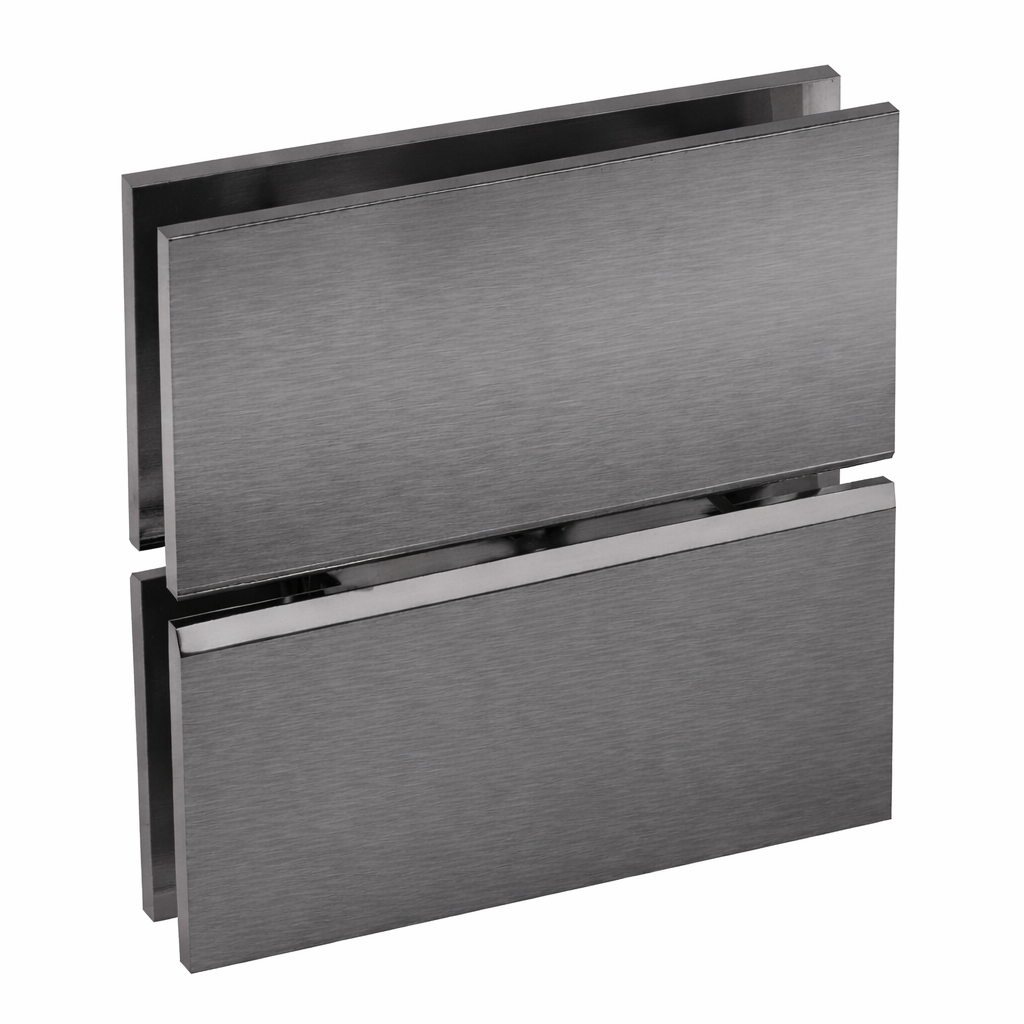

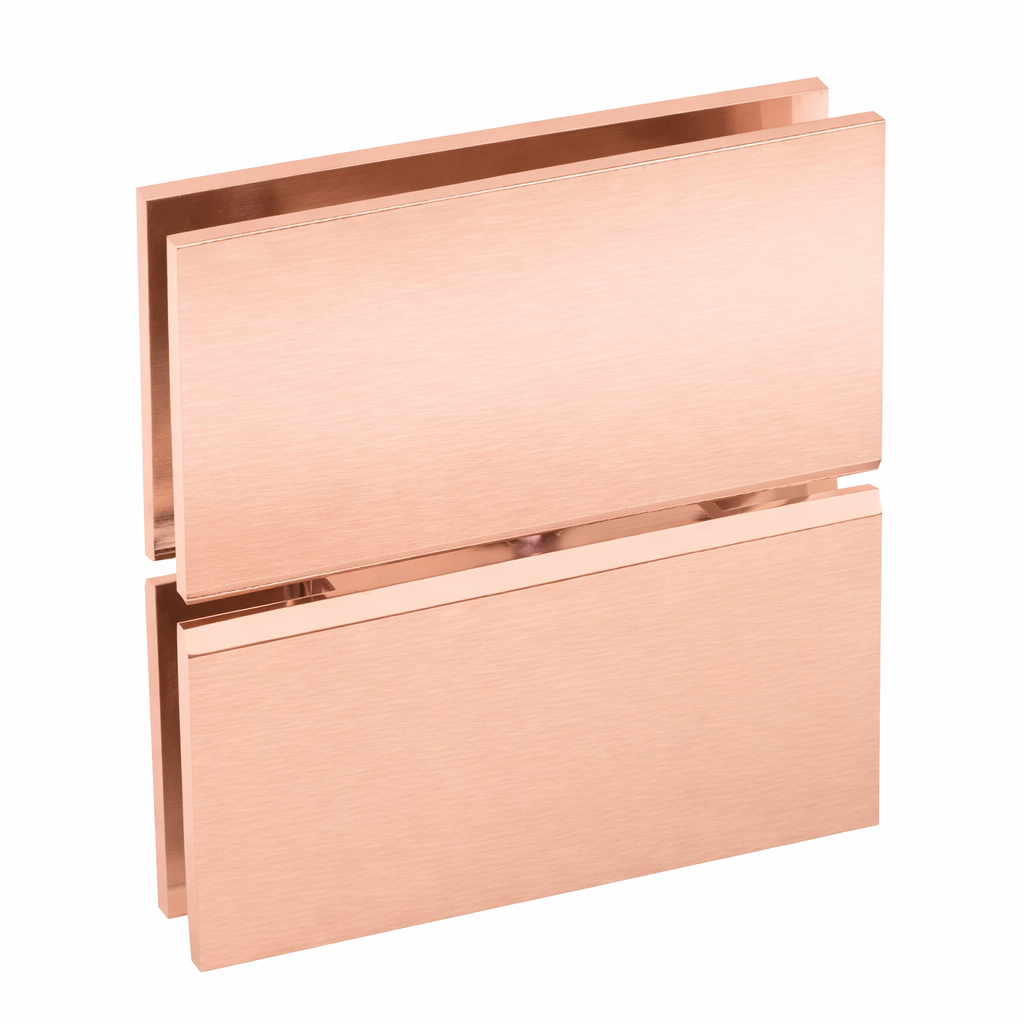

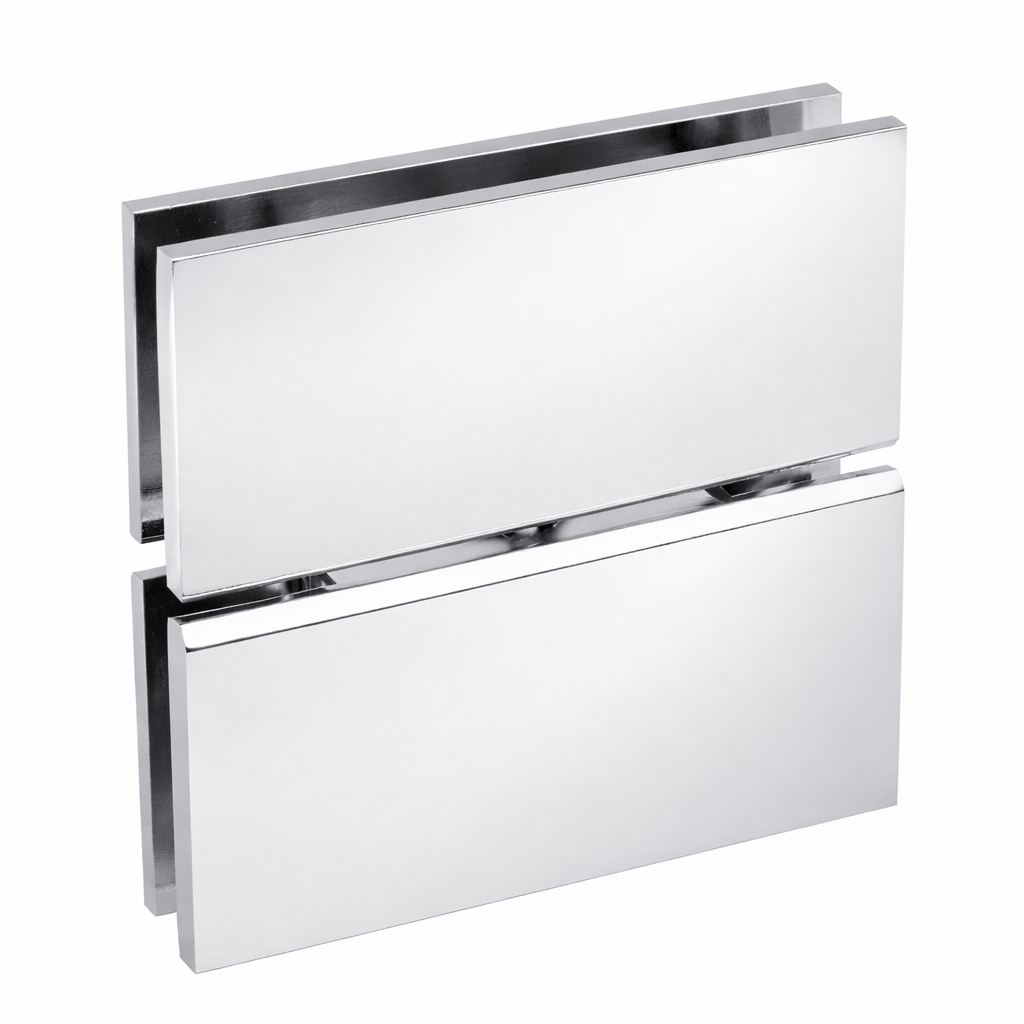

Legion Series Glass to Glass Hinge Heavy Duty

To see the price please, Sign In

Technical Drawing

Same Day Shipping, Orders placed Before 3pm EST

Quality Guarantee

In stock, ready to ship

Shipping Ask about this product

Barcode:

Description

Ideal for vertical hinging off a glass transom panel. Factory set to self center for a standard closing position, the heavy duty Legion Series hinge allows a frameless look without the need for extensive hardware.

HD Square Glass to Glass Transom Pivot Hinge

Self-Centering

Compatible with Monolithic Tempered Glass

Designed For 3/8" Tempered Glass

Available in Different Finishes

STYLE:

SQUARE - PIVOT
GLASS THICKNESS:

5/16" - 3/8"
MATERIAL:

BRASS
SELF-CENTERING:

YES
MAX DOOR WEIGHT:

145 LBS (2 HINGES)
MAX DOOR WIDTH:

36 INCH (2 HINGES)
MODEL:

HEAVY DUTY - LEGION
MOUNT:

GLASS TO GLASS
