SKU: LPH360

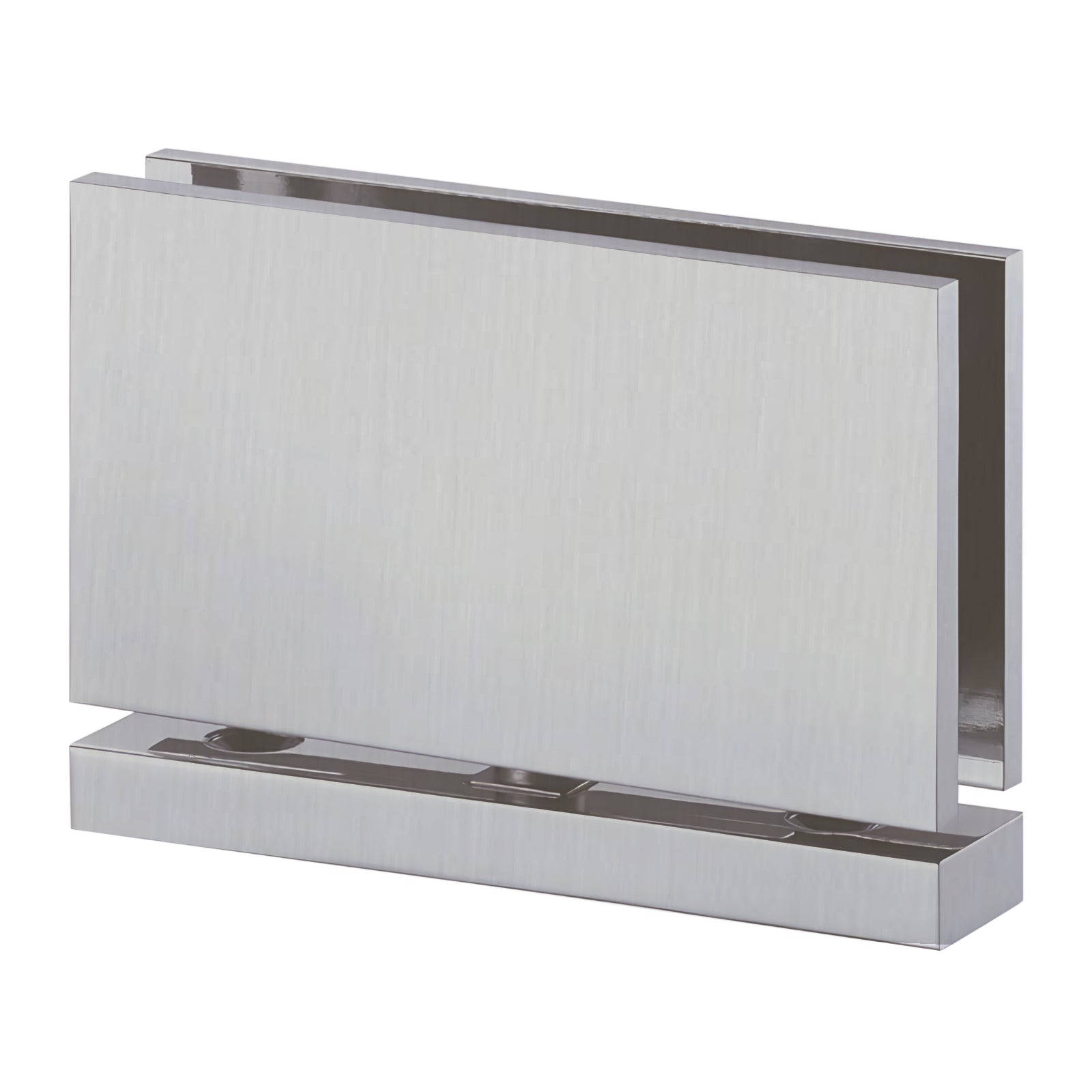

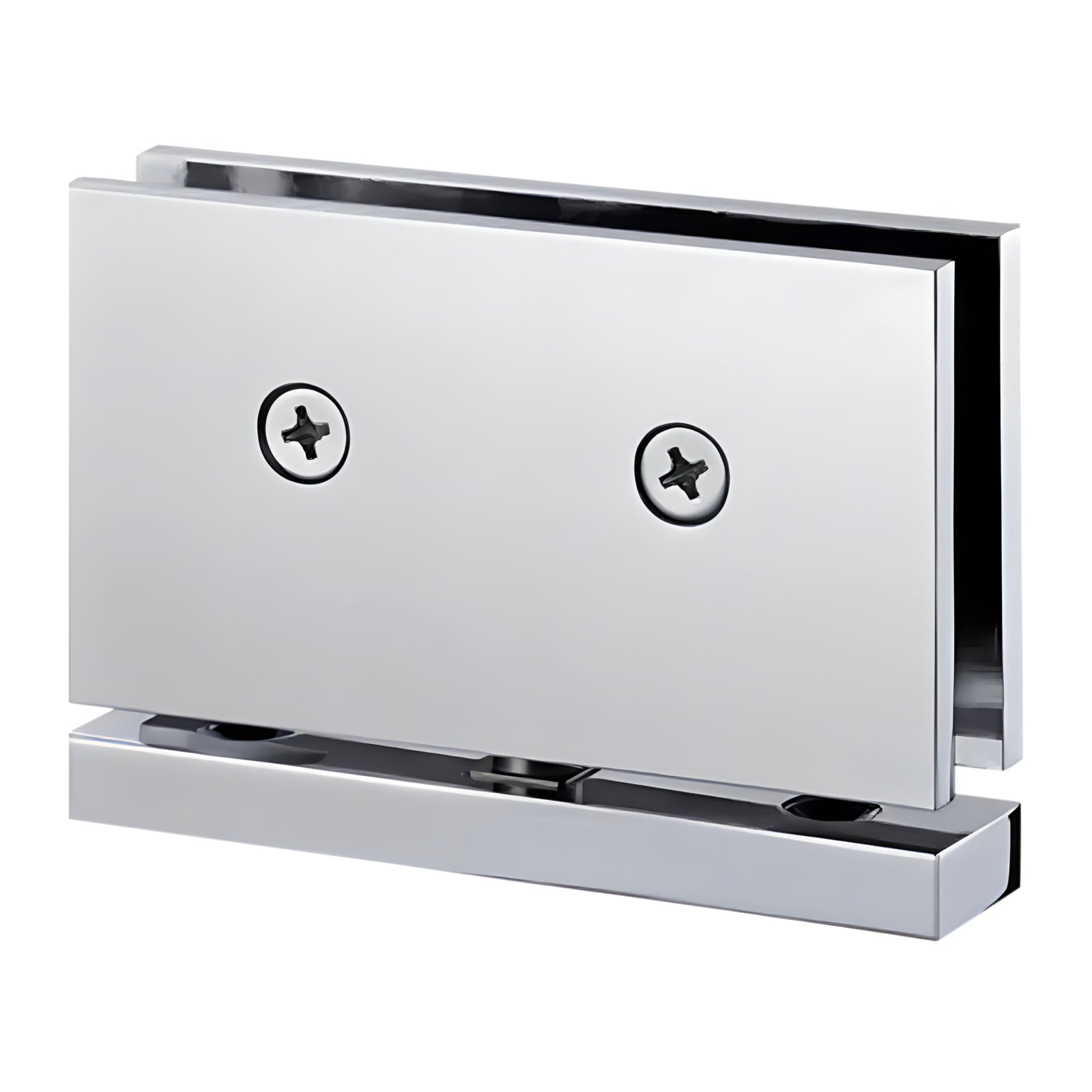

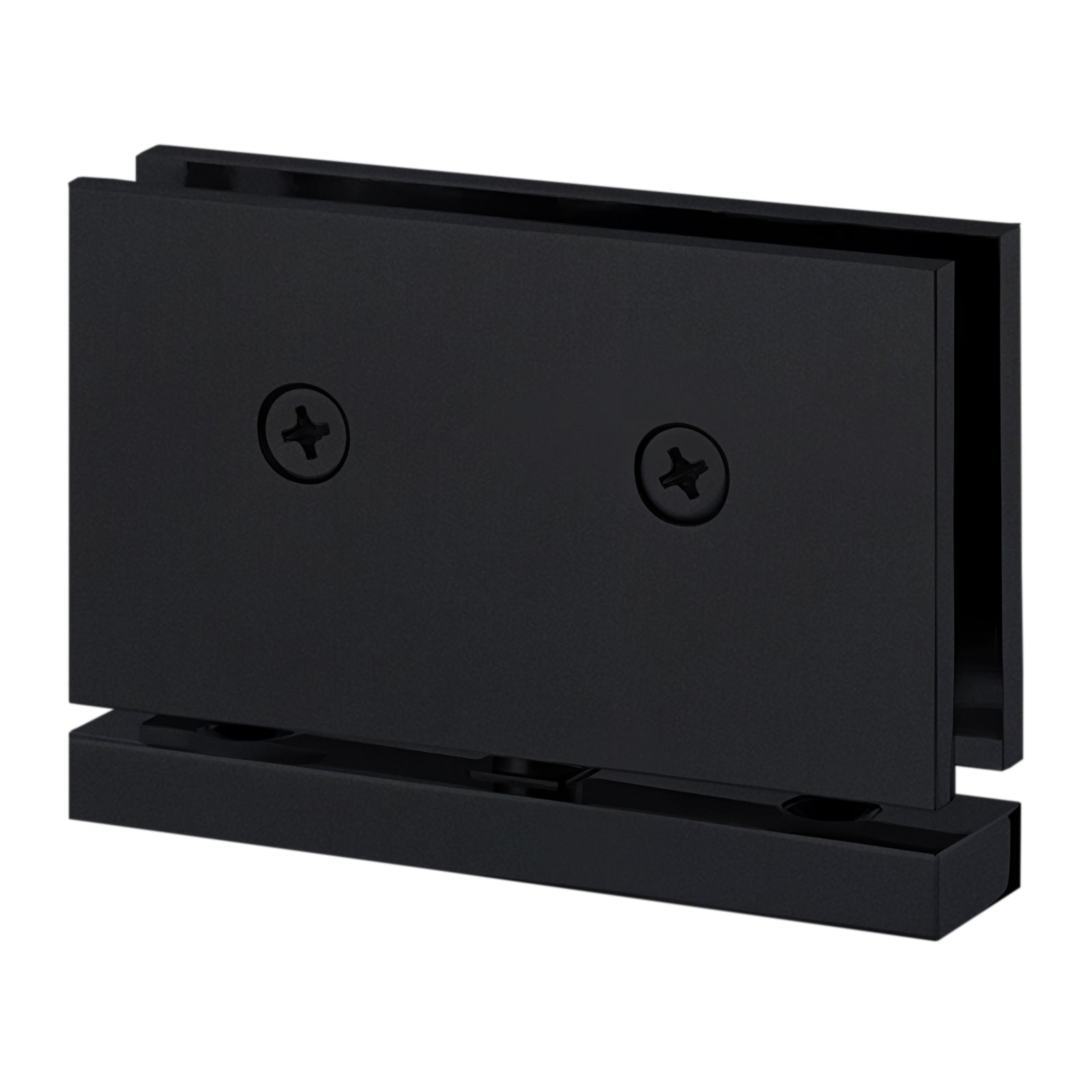

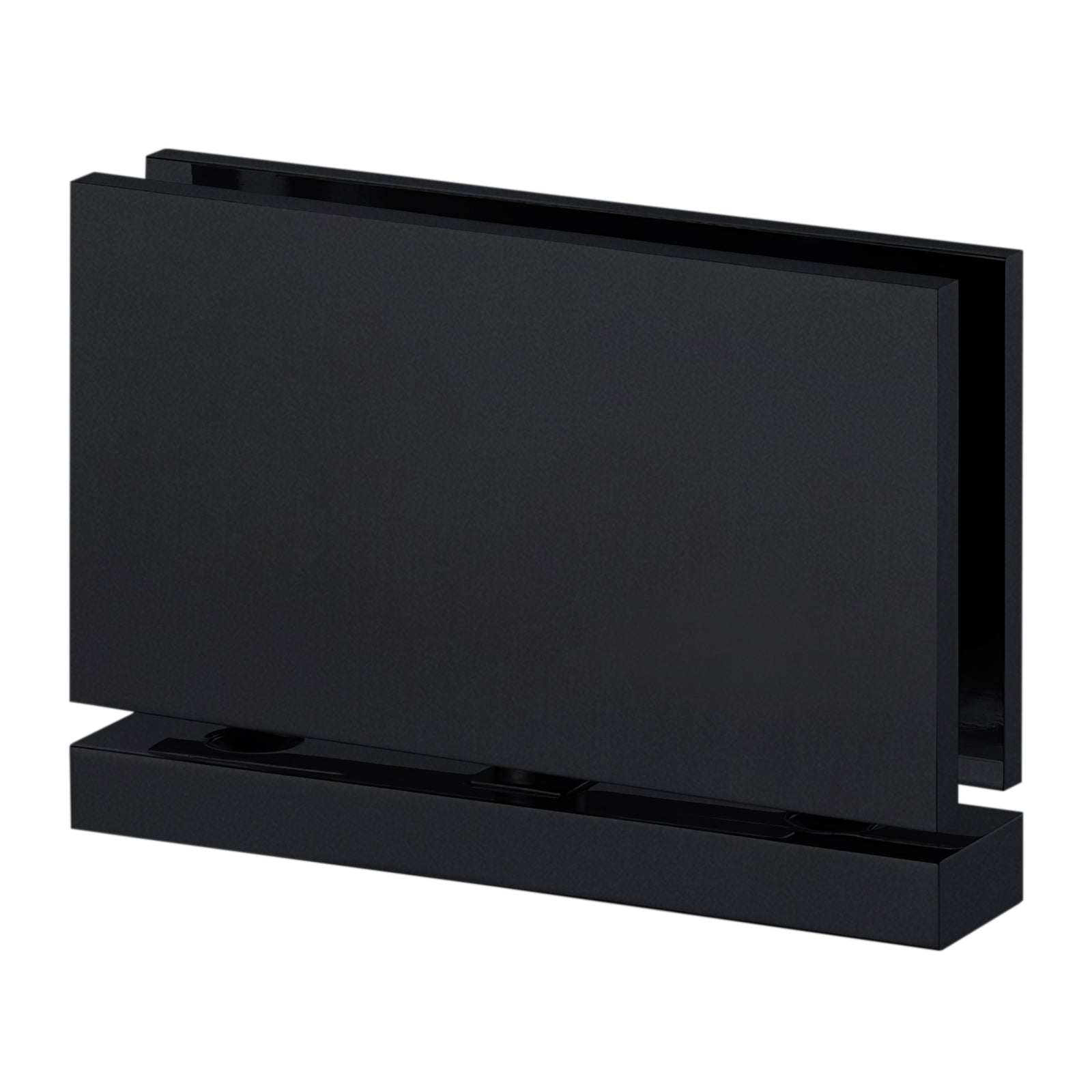

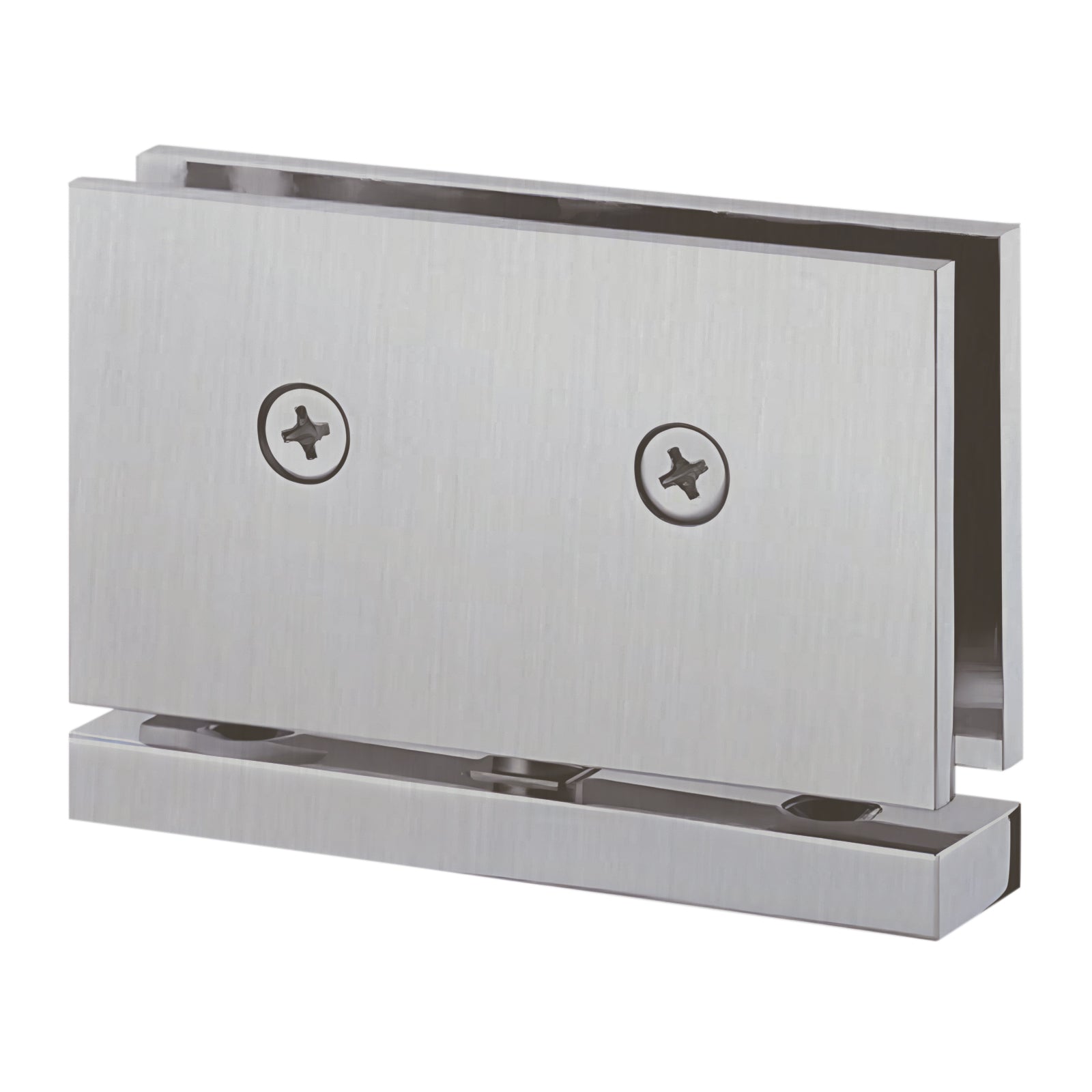

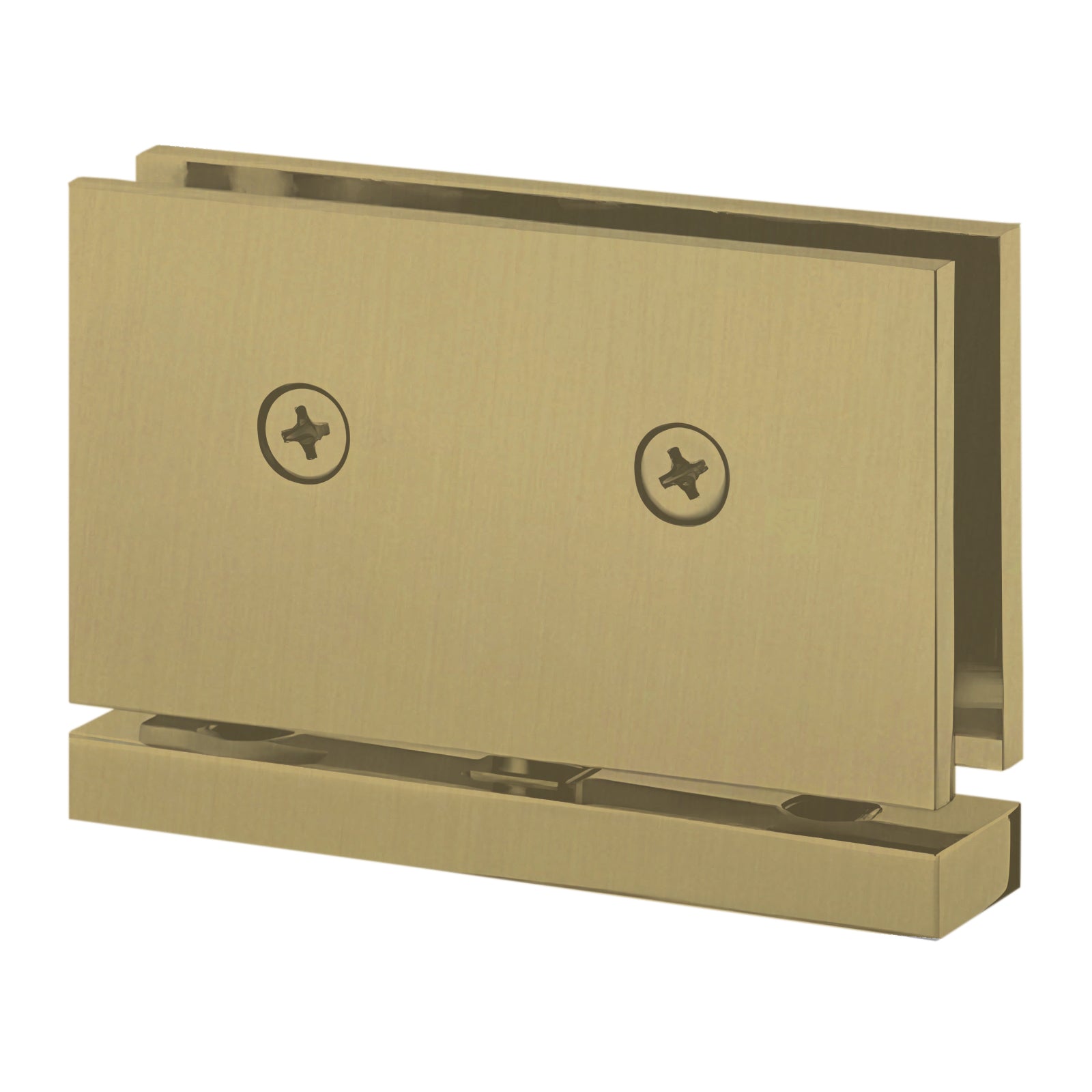

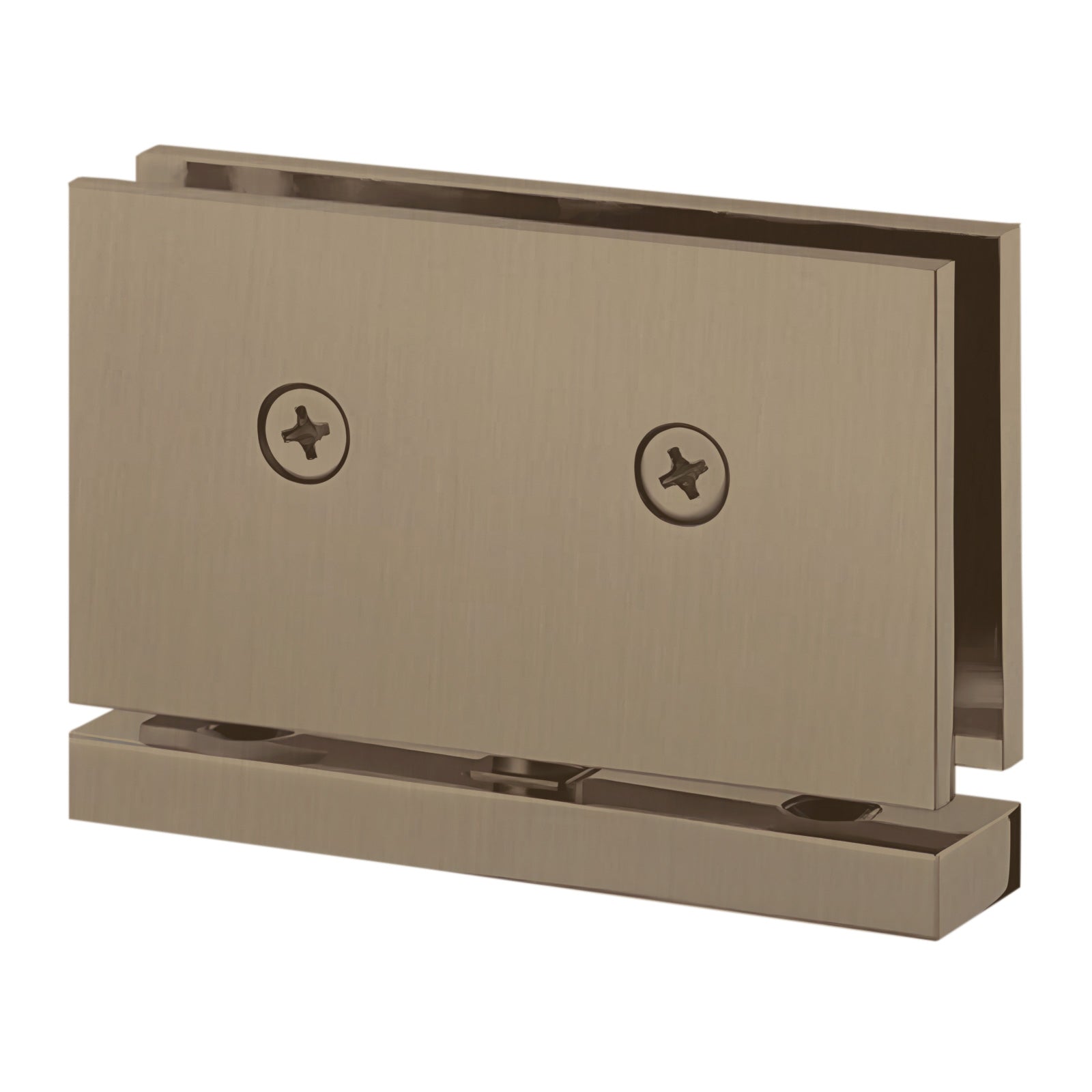

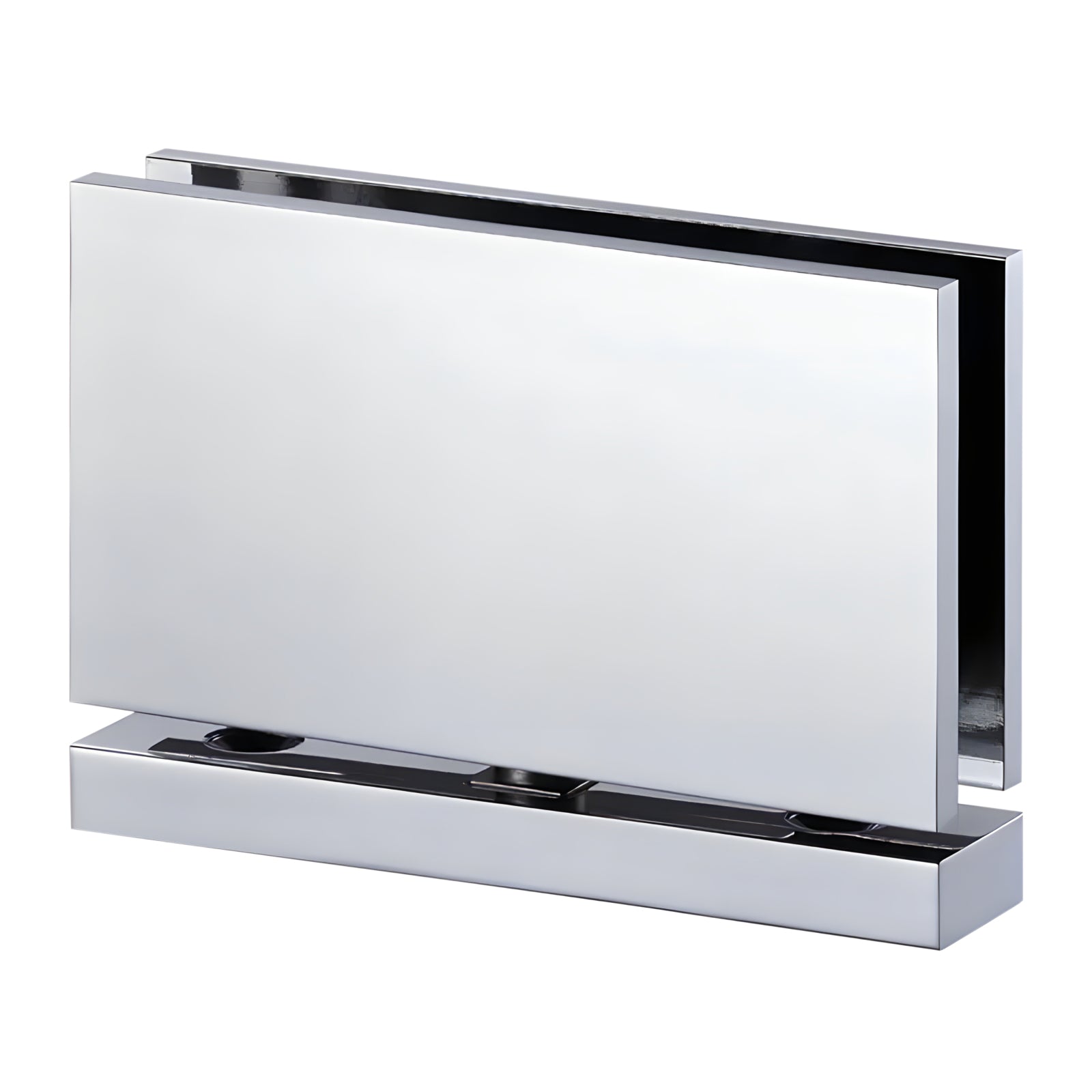

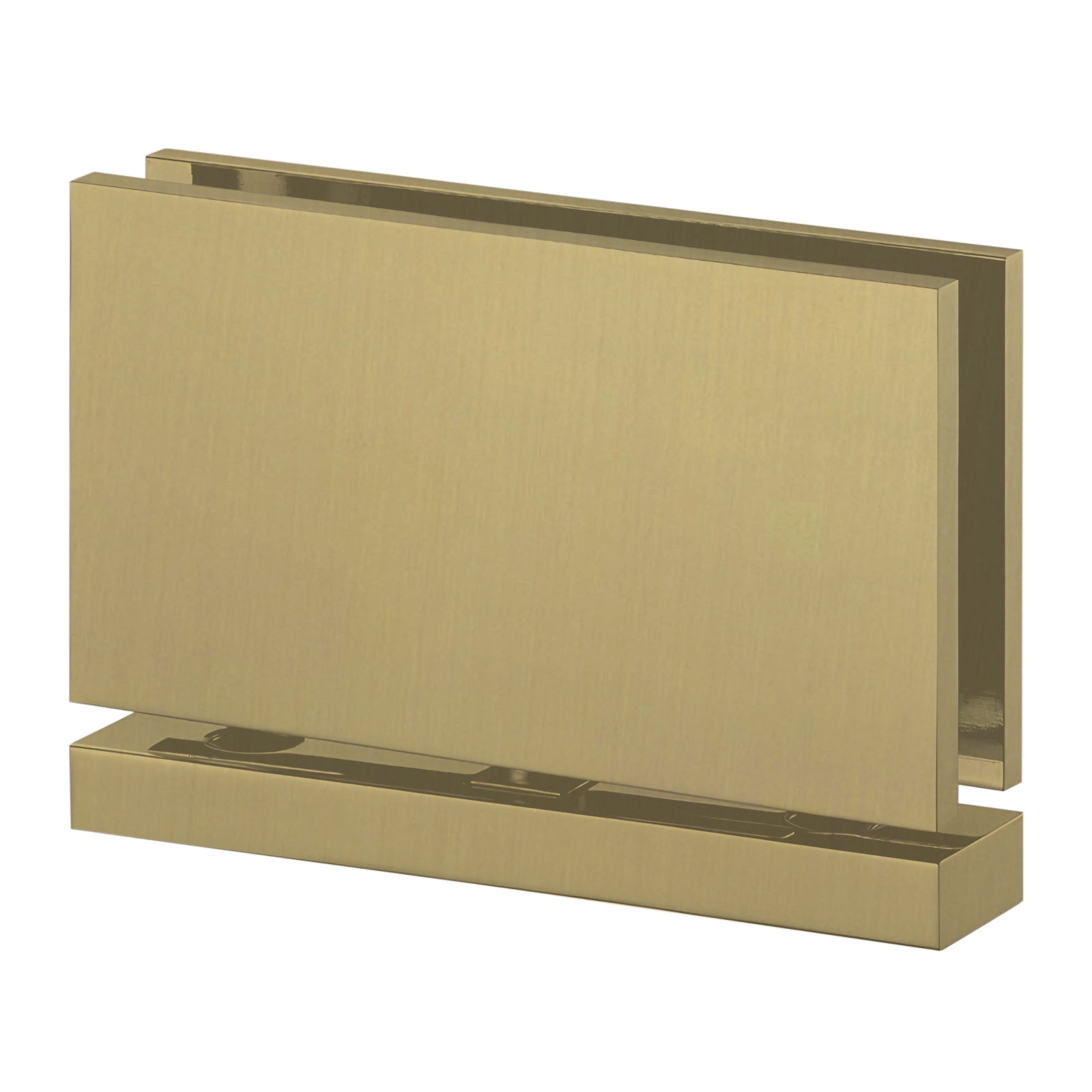

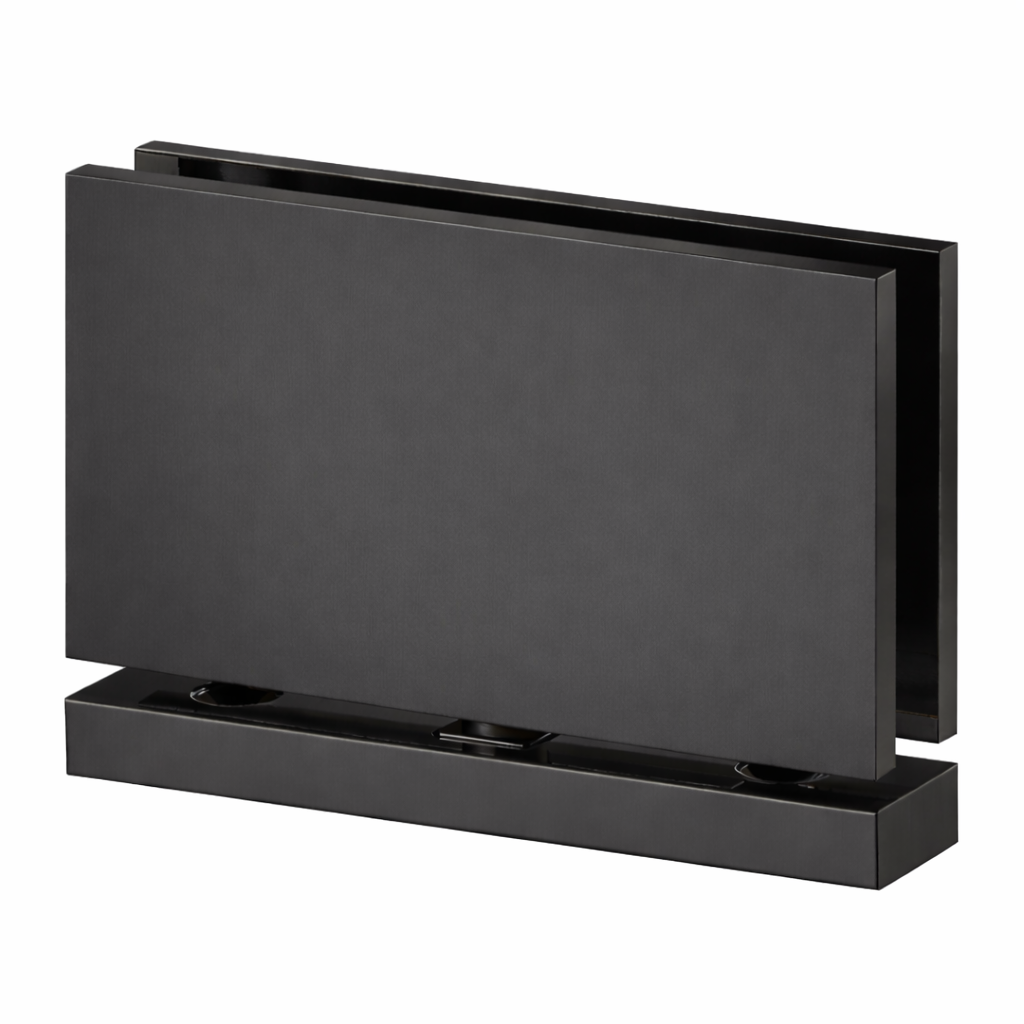

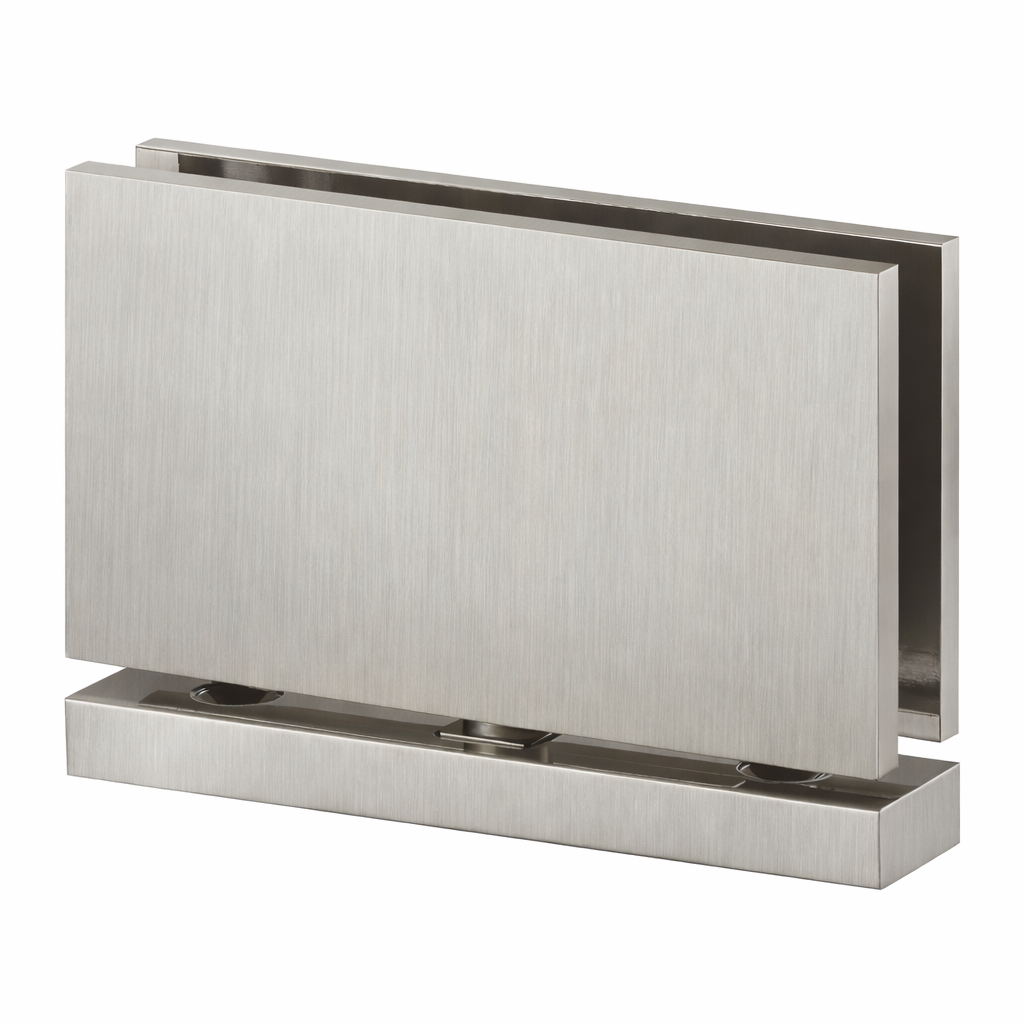

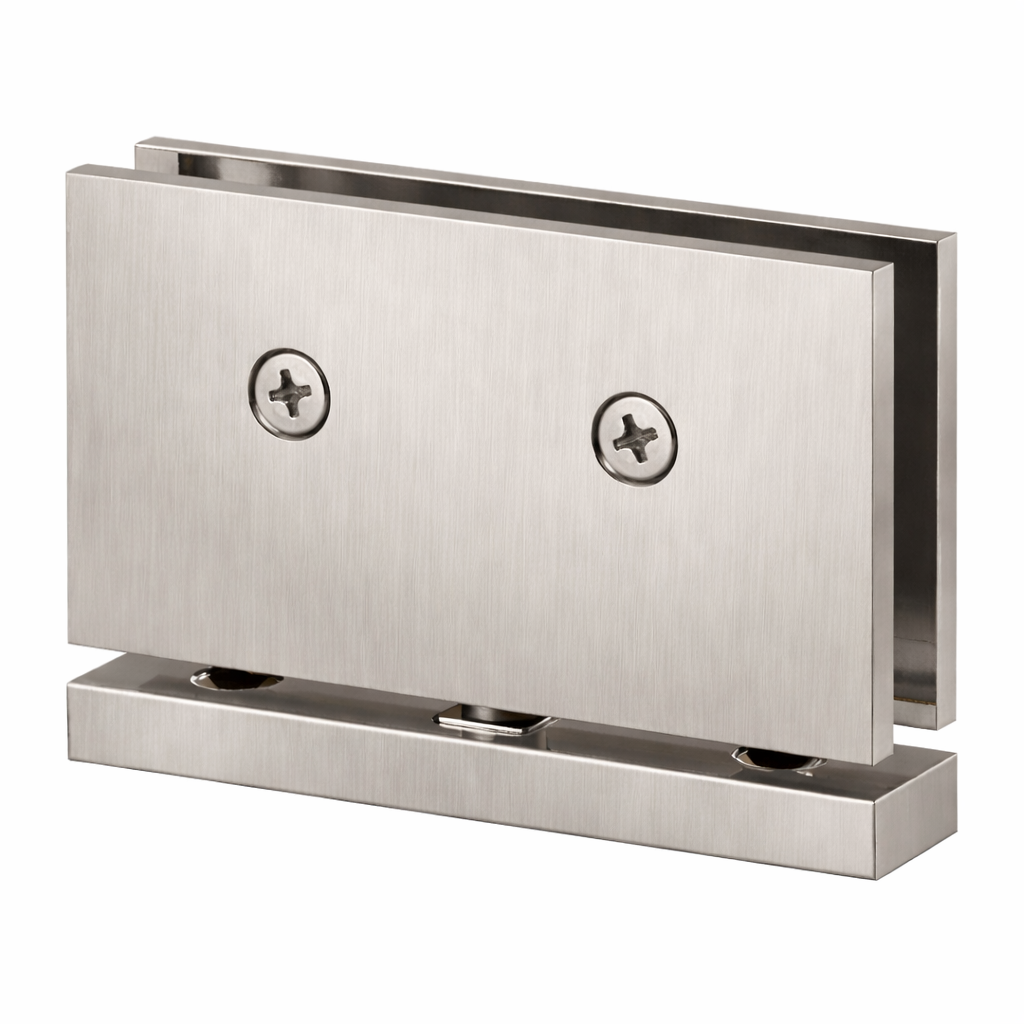

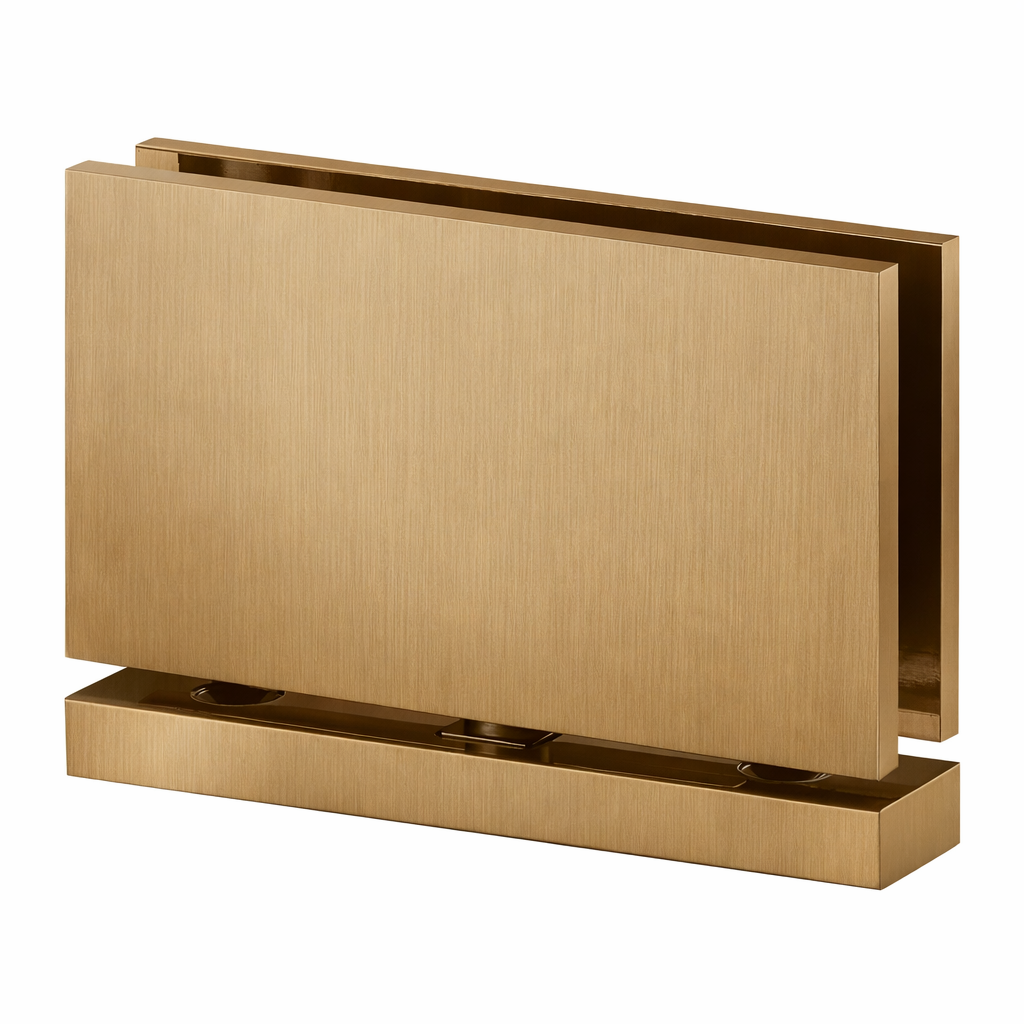

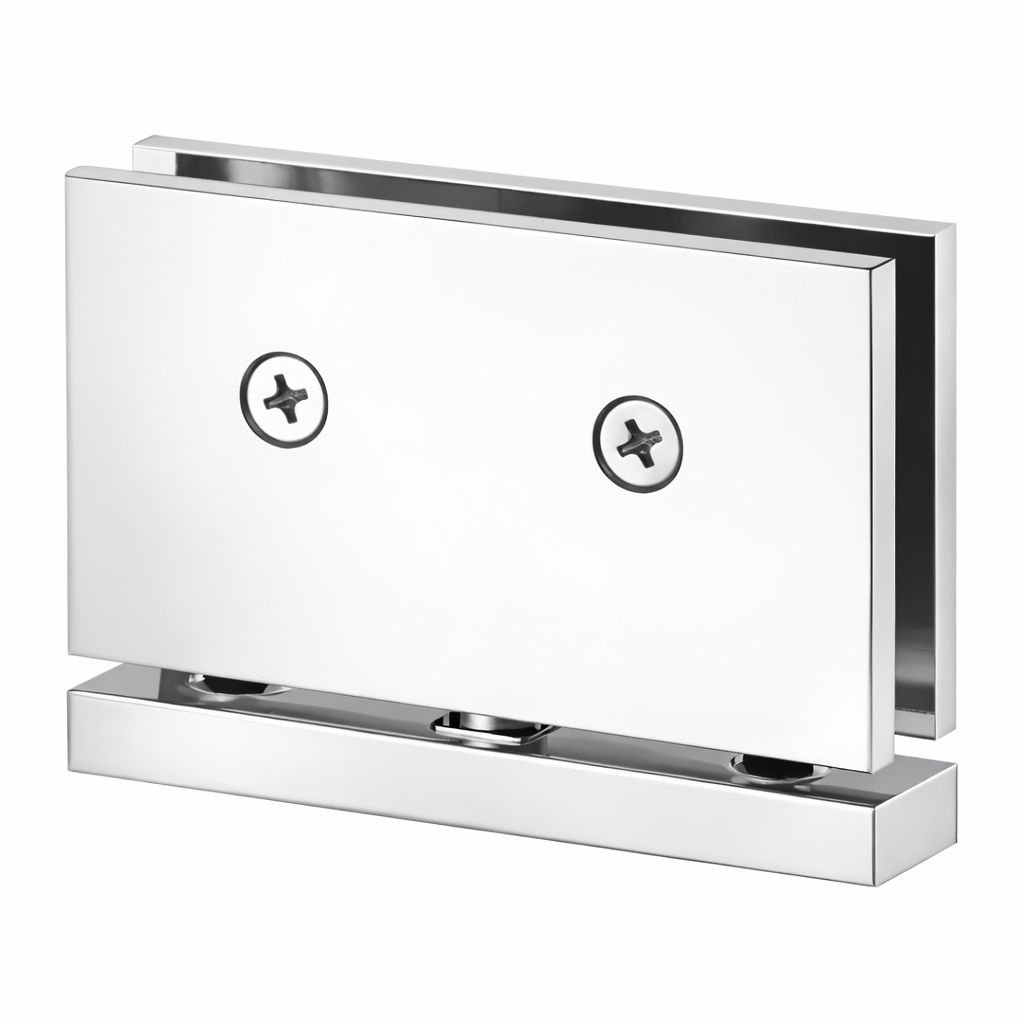

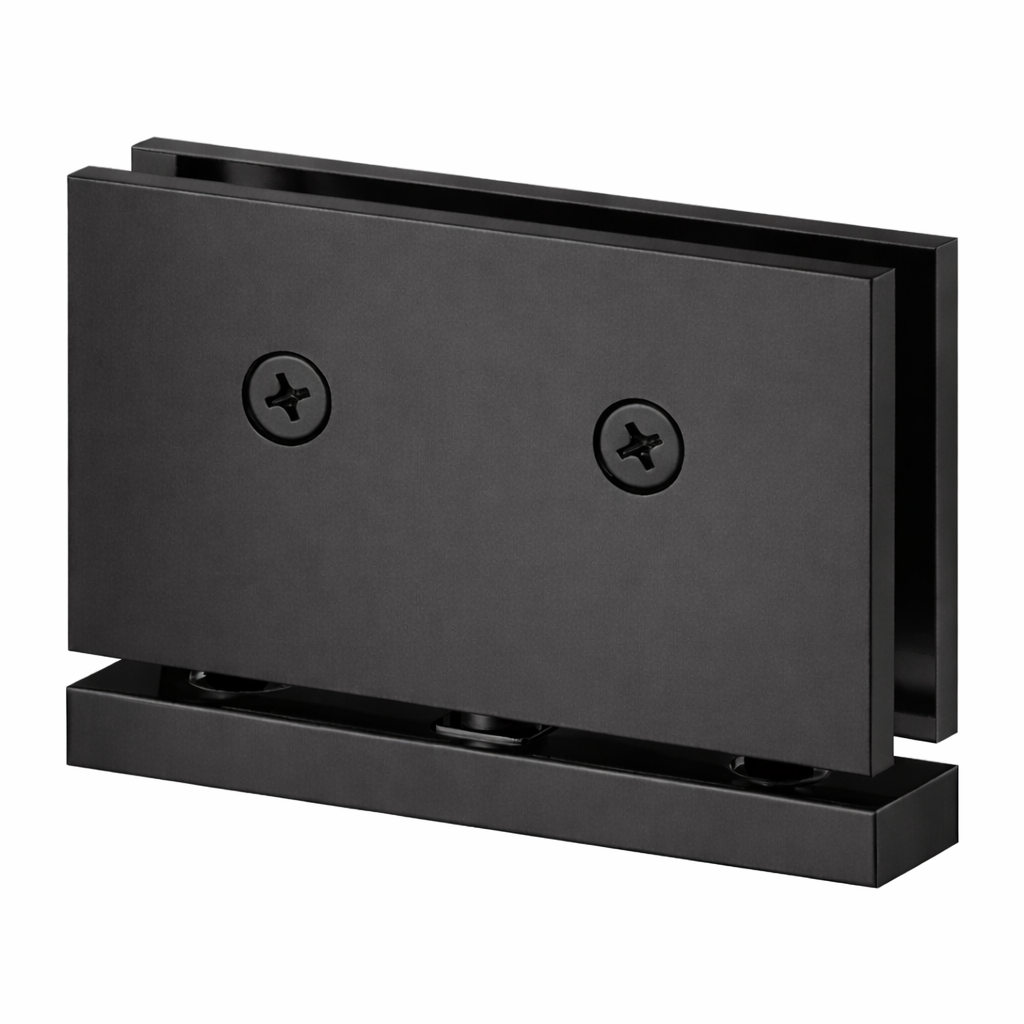

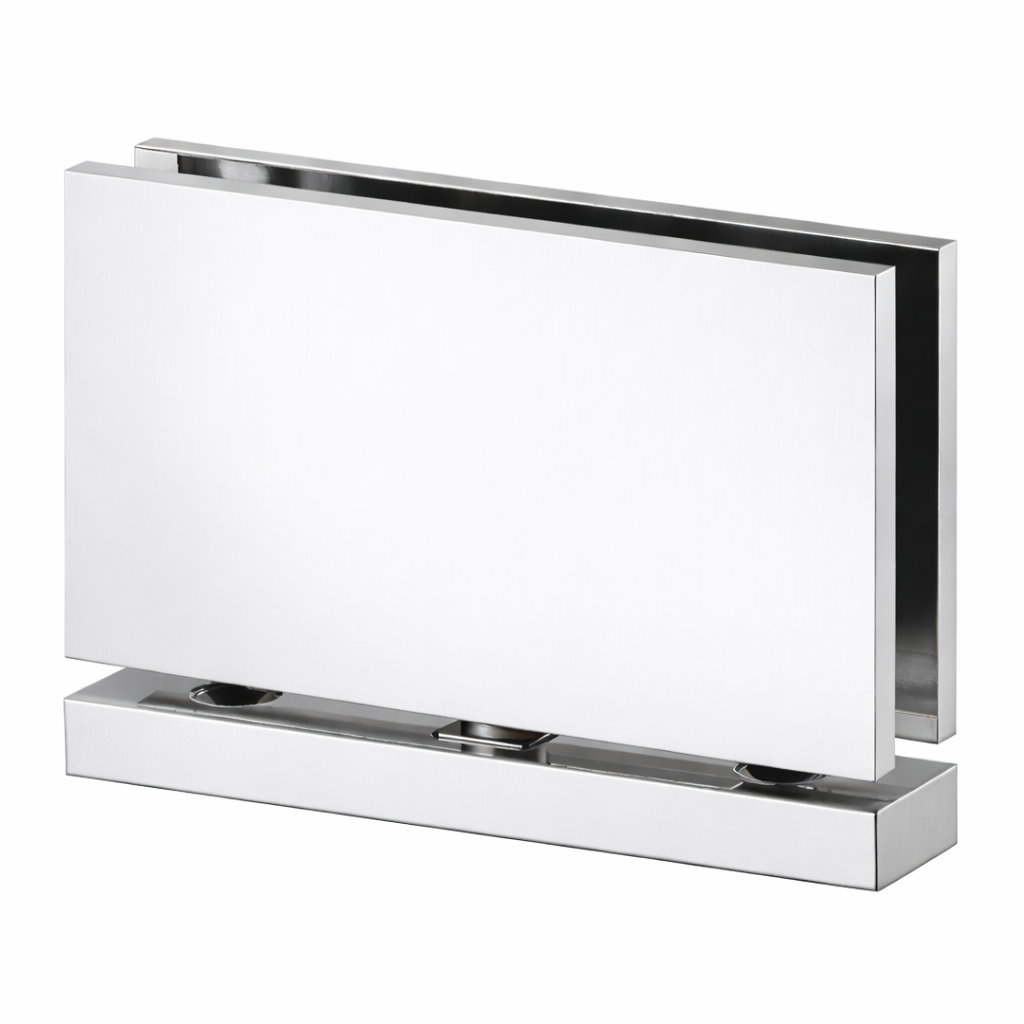

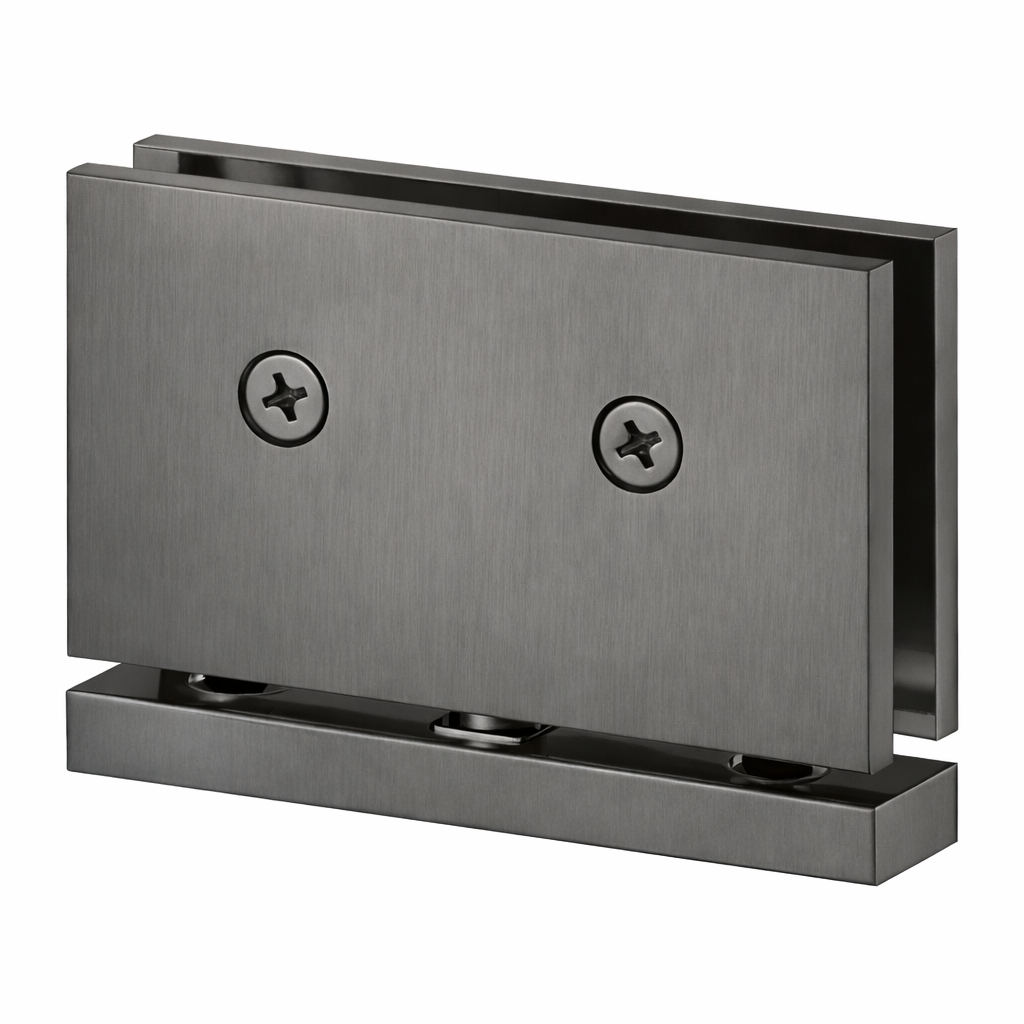

Legion Square Pivot Hinge

To see the price please, Sign In

Technical Drawing

Same Day Shipping, Orders placed Before 3pm EST

Quality Guarantee

In stock, ready to ship

Shipping Ask about this product

Barcode:

Description

Standard duty pivot hinge for 180° swing in both directions. Factory set to self center for a standard closing position, the Legion Series hinge allows a frameless look with a modern square design.

Pivot Hinge Standard Duty Model

Modern Square Design

Self-Centering Within 15° of Closing Position

Compatible with Monolithic Tempered Glass

Designed For 3/8" Tempered Glass

STYLE:

SQUARE PIVOT
HEIGHT:

2 INCH (51 MM)
GLASS THICKNESS:

5/16" - 3/8" (8 MM - 10 MM)
MATERIAL:

BRASS
SELF-CENTERING:

YES
5 DEGREE PRE-SET:

NO
MAX DOOR WEIGHT:

100 LBS (2 HINGES)
MAX DOOR WIDTH:

31 INCH (2 HINGES)
MODEL:

STANDARD DUTY - LEGION
MOUNT:

HEAD & SILL MOUNT
ADJUSTABLE:

NO
