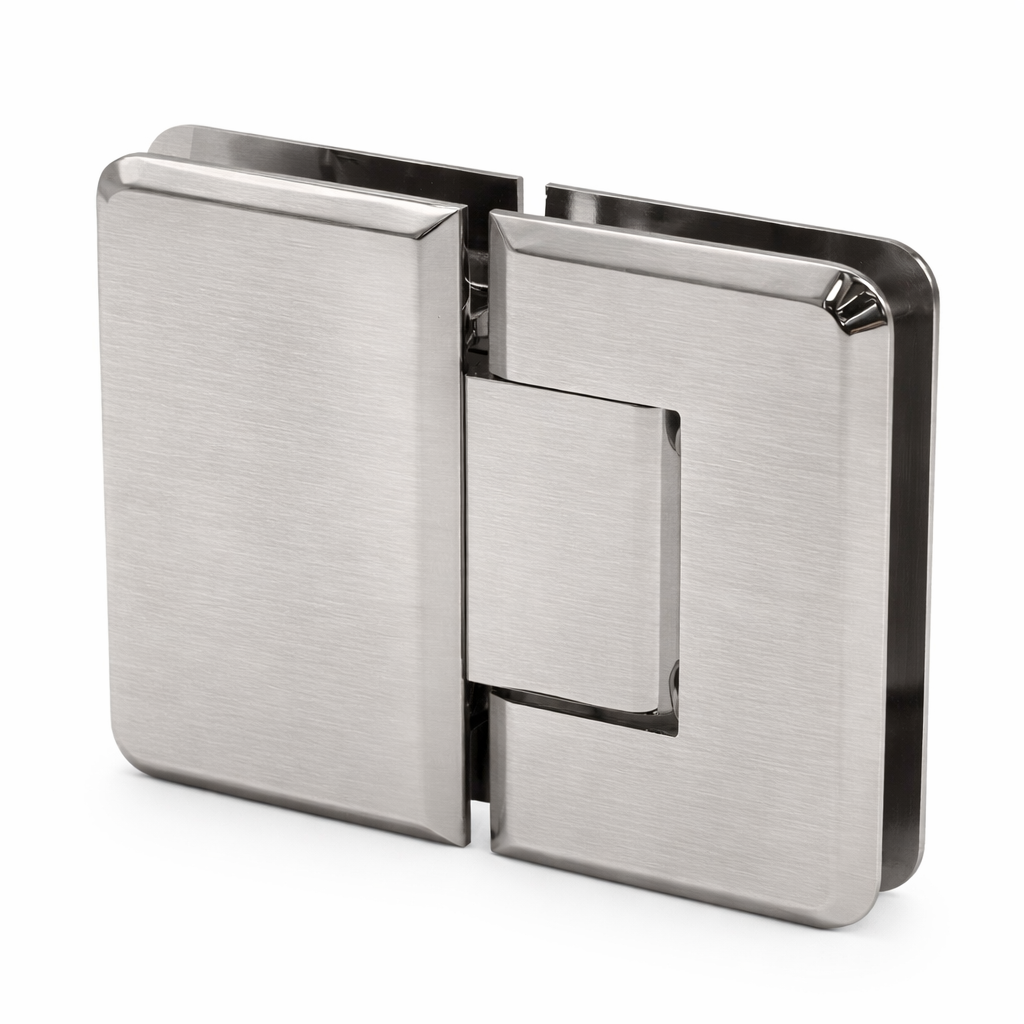

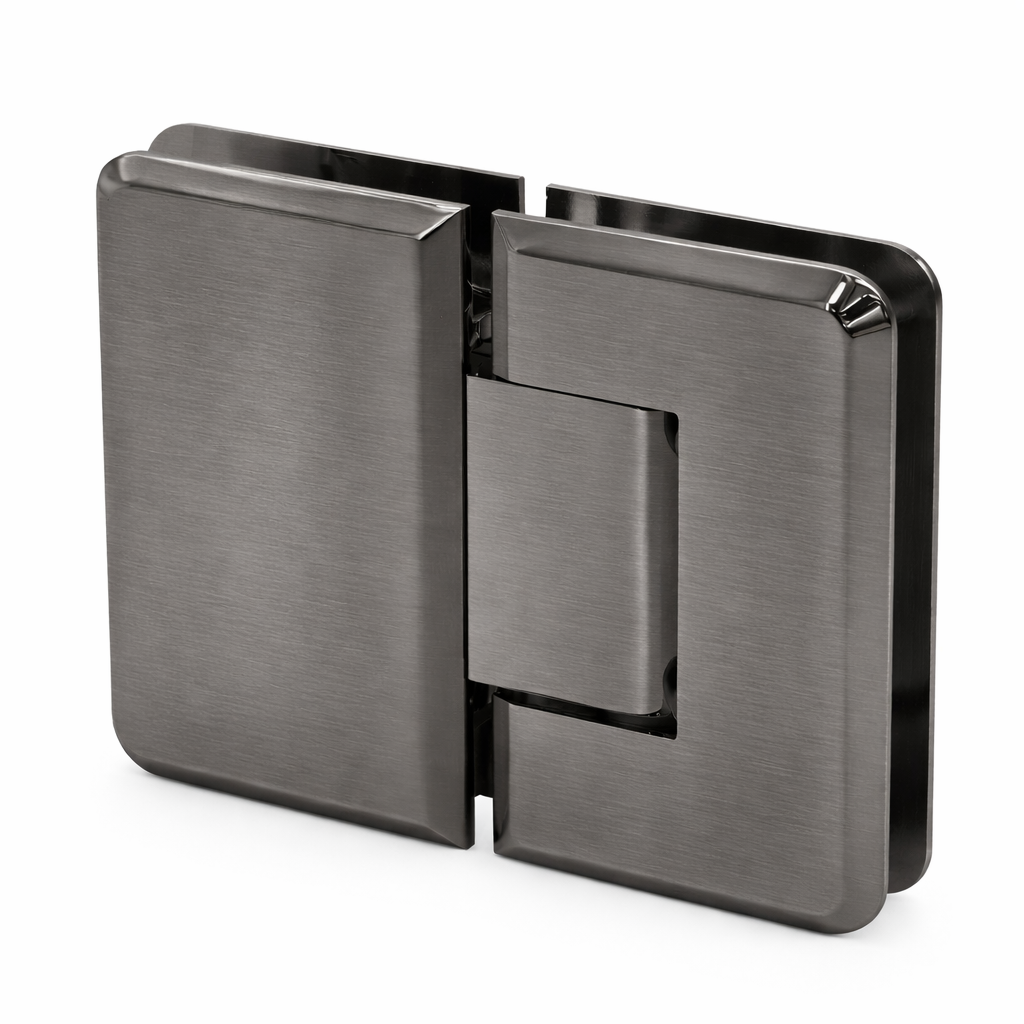

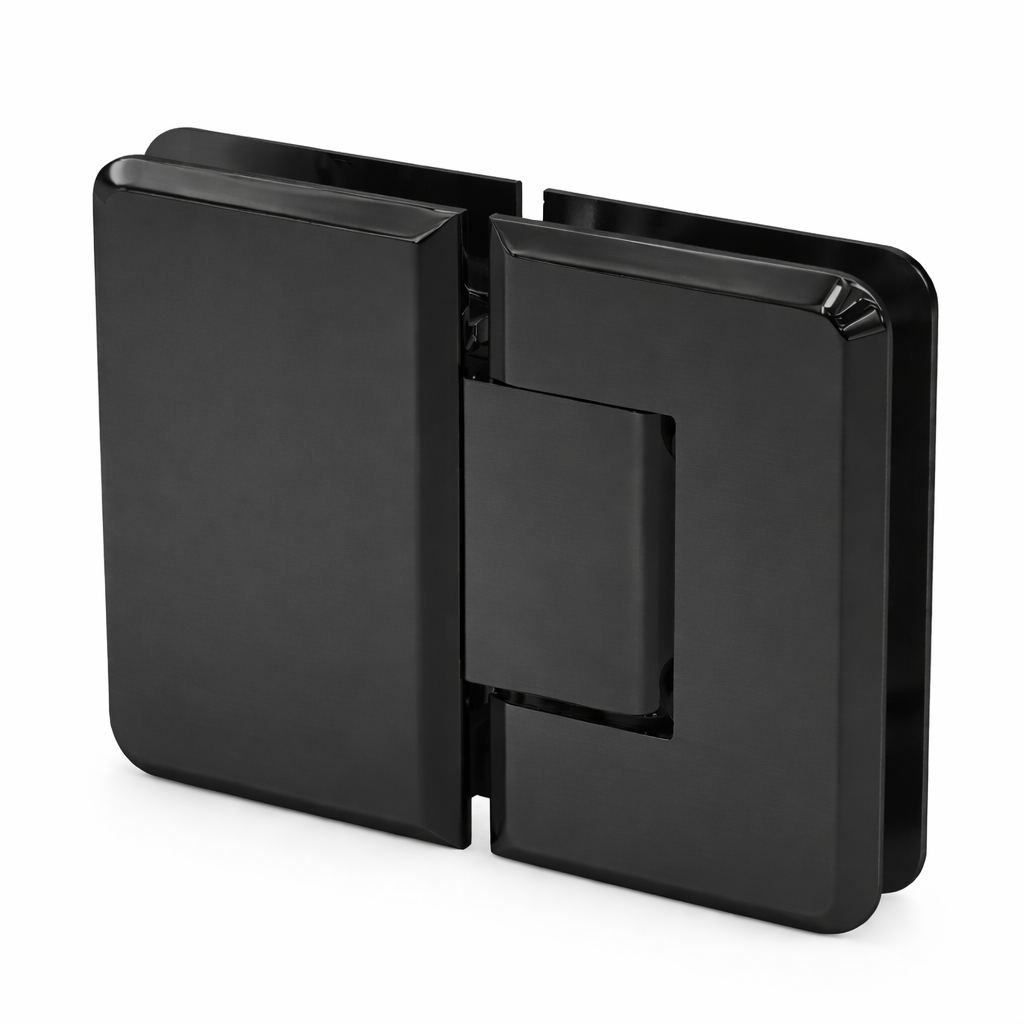

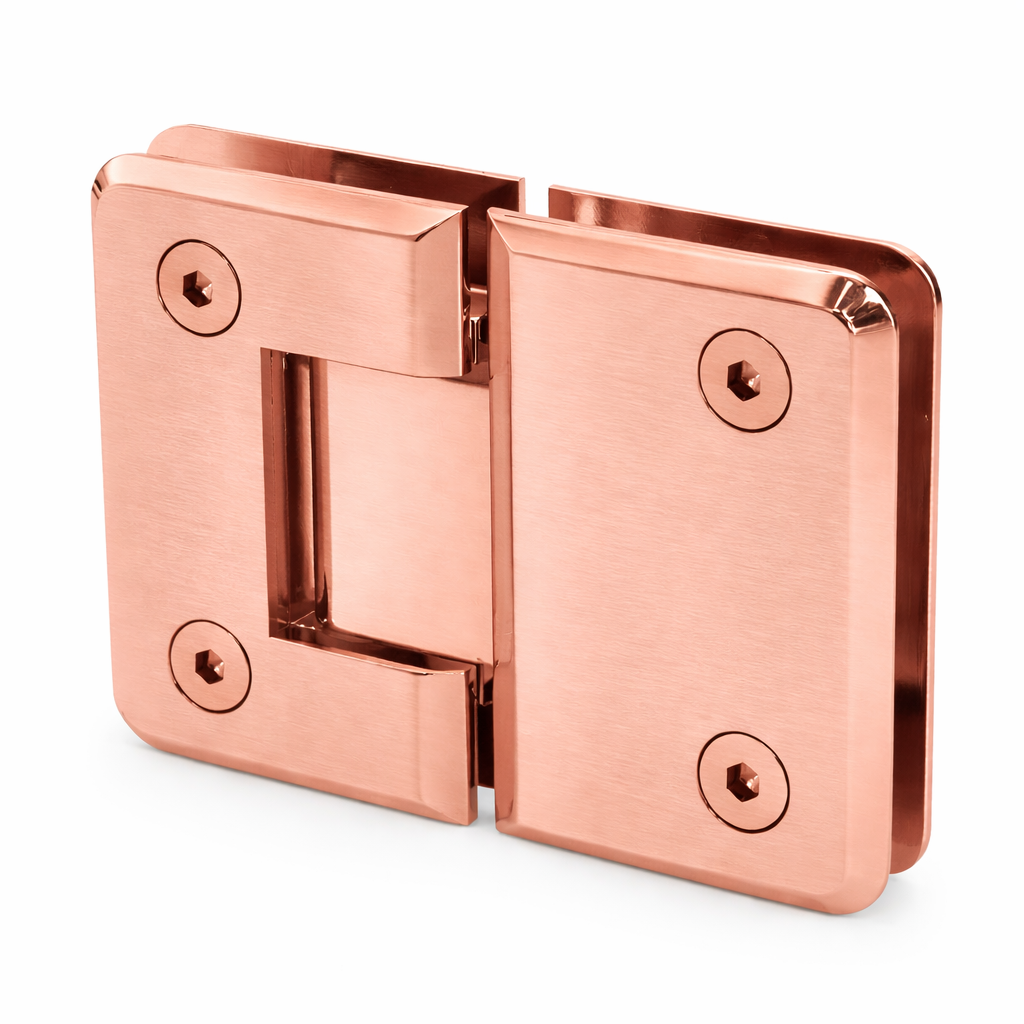

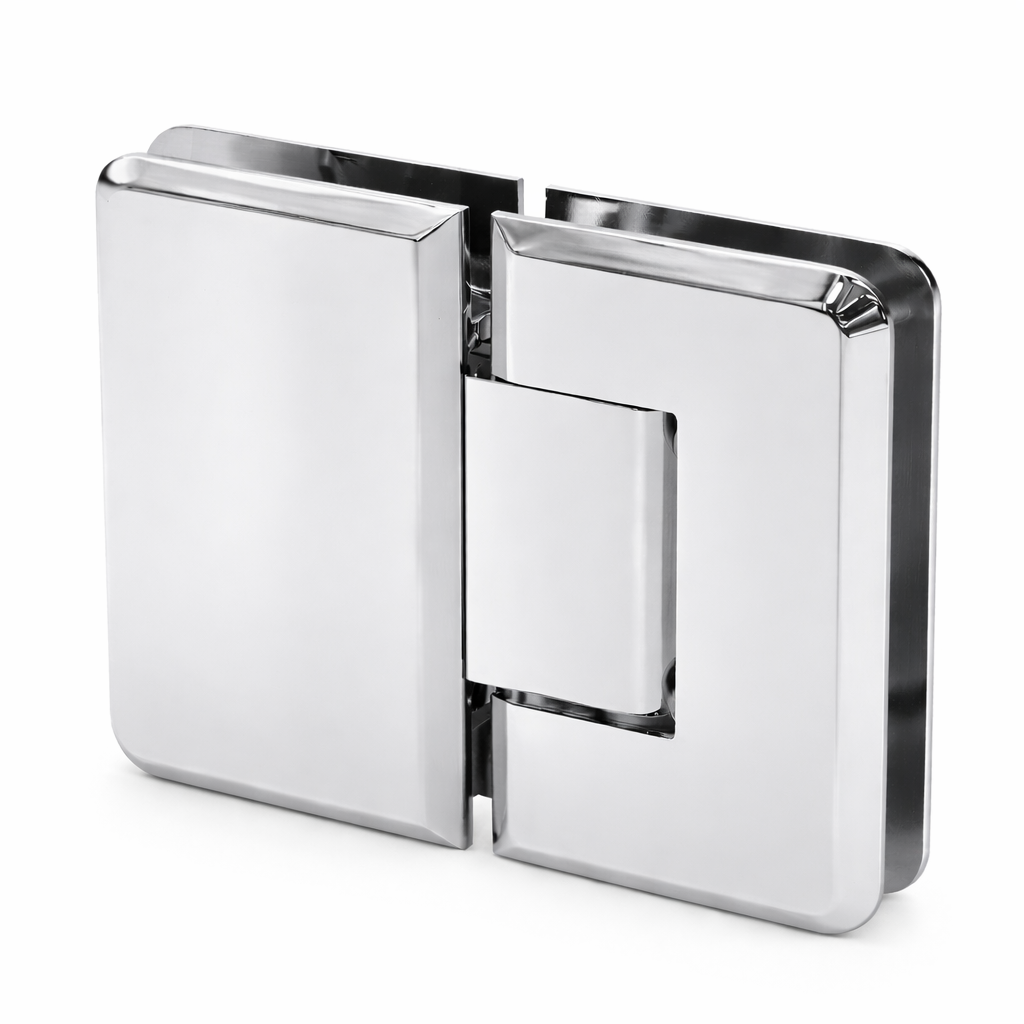

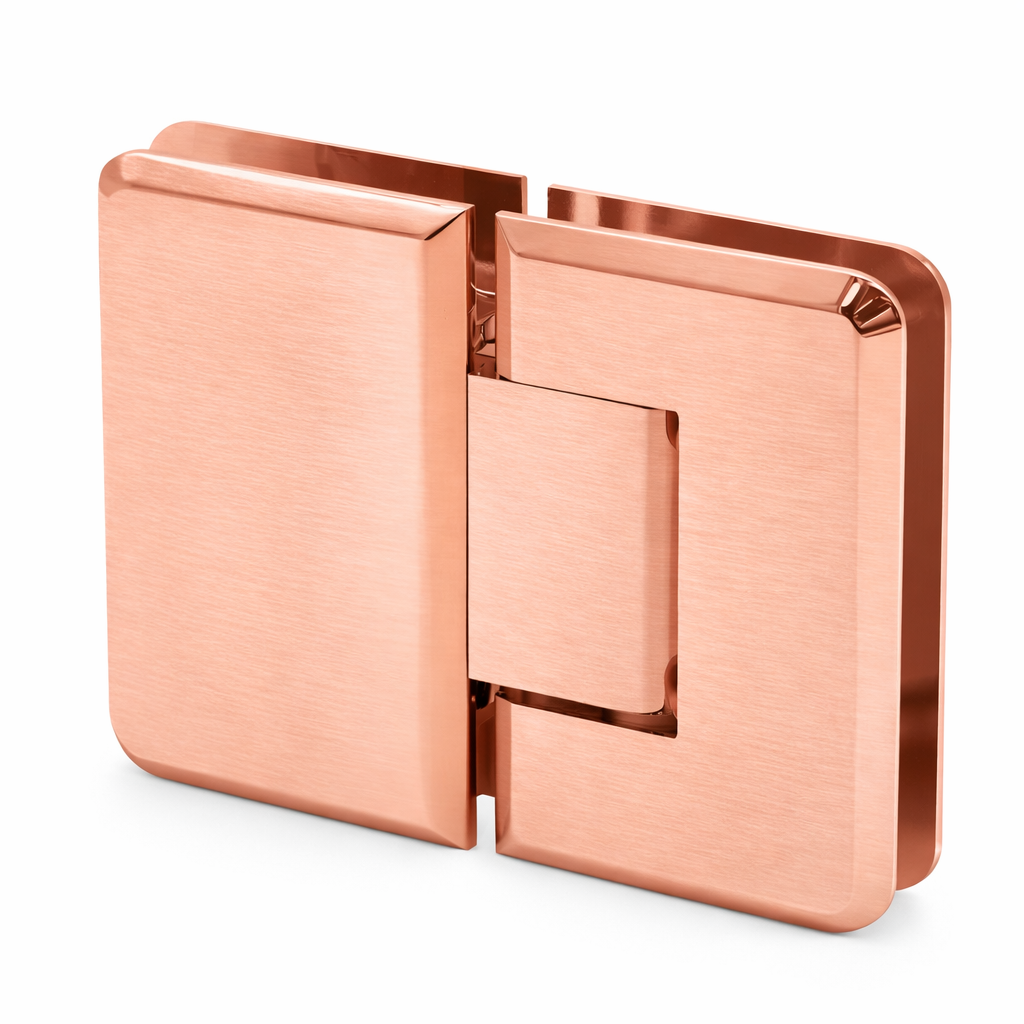

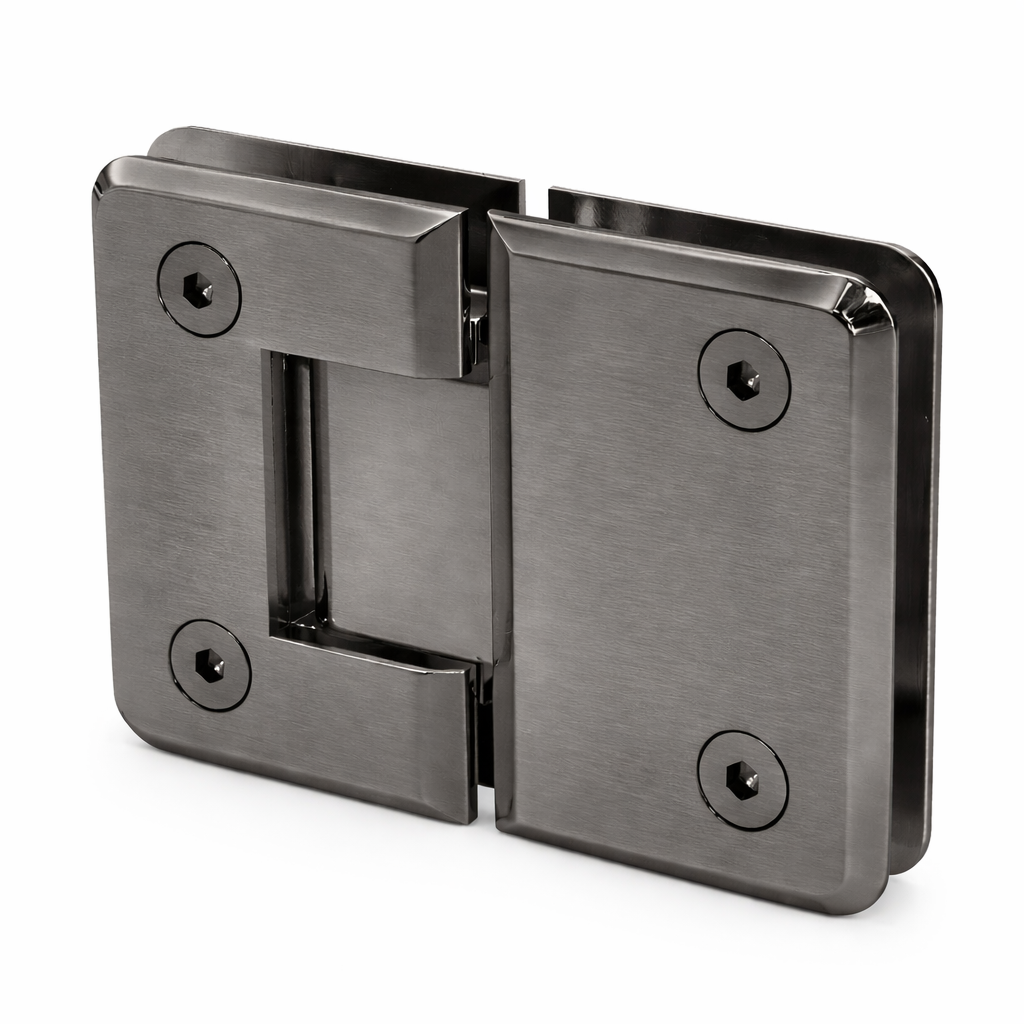

Regal Series 180° Glass to Glass Hinge Beveled

Product Description

The Glaze Hardware Regal Series 180° Glass-to-Glass Hinge is designed to deliver a clean, frameless appearance while providing reliable performance in inline glass door installations.

This standard-duty hinge features a reversible pin for a positive and consistent closing position and is factory-configured at 180° for standard inline applications. Engineered for smooth operation and durability, it is ideal for modern frameless shower enclosures using monolithic tempered glass. Available in multiple finishes, it integrates seamlessly with a wide range of bathroom designs.

Features & Specifications

• Regal Series inline 180° glass-to-glass hinge

• Standard-duty model, factory-set at 180° closing position

• Reversible pin for positive closing action

• Self-centering within 15° of the closed position

• Compatible with monolithic tempered glass

• Designed for 3/8″ tempered glass

• Ideal for inline glass door configurations

• Available in multiple finishes

Load Capacity Guidelines

Using Two Hinges:

• Glass thickness: 3/8″ to 1/2″ (10–12 mm)

• Maximum door weight: 80 lbs (36 kg)

• Maximum door width: 28″ (711 mm)

Using Three Hinges:

• Glass thickness: 3/8″ to 1/2″ (10–12 mm)

• Maximum door weight: 120 lbs (54 kg)

• Maximum door width: 32″ (813 mm)
