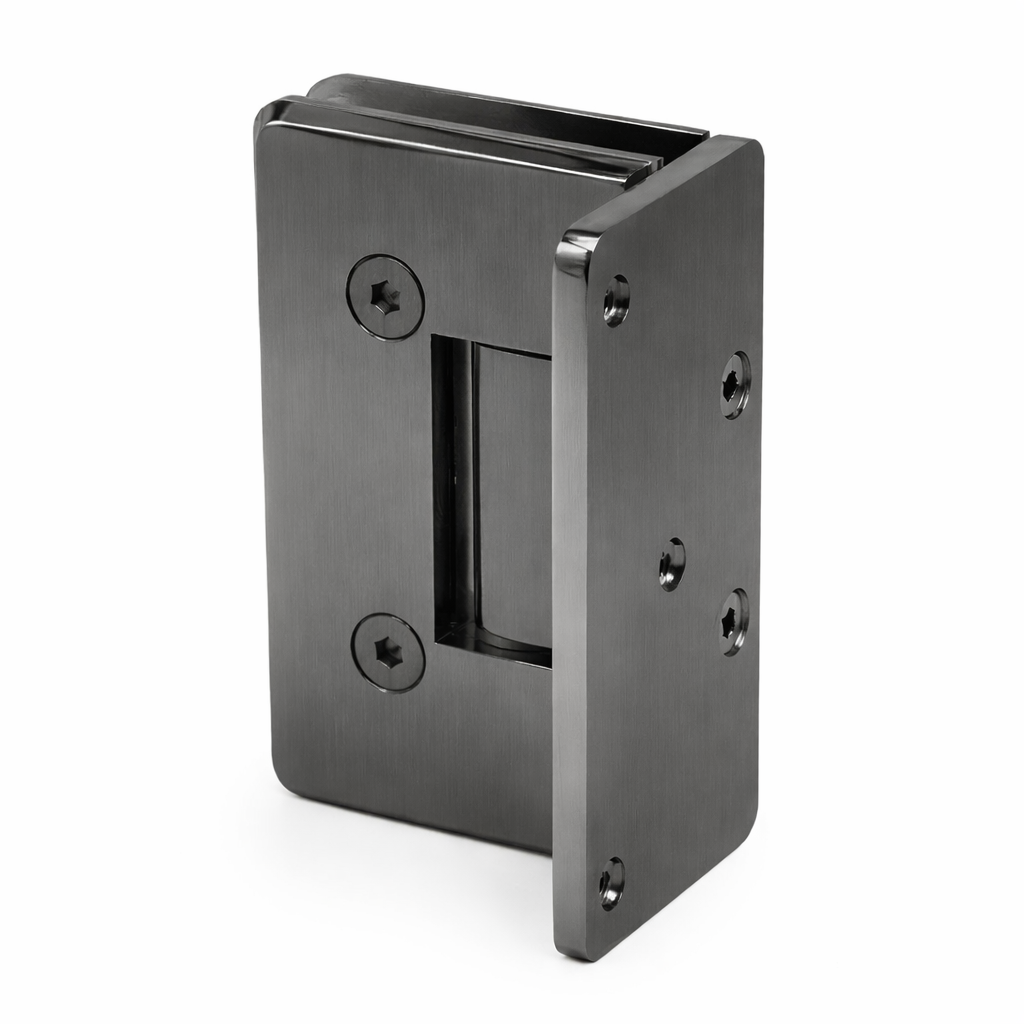

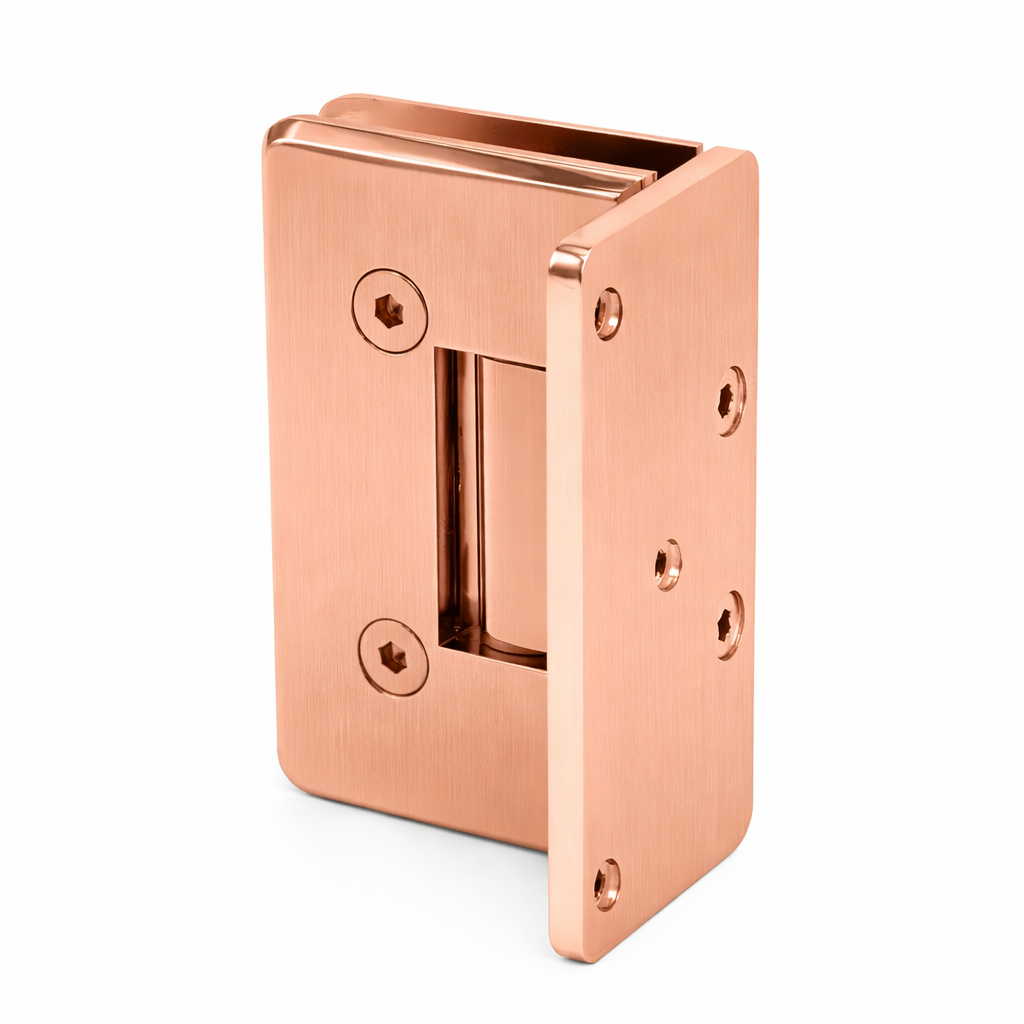

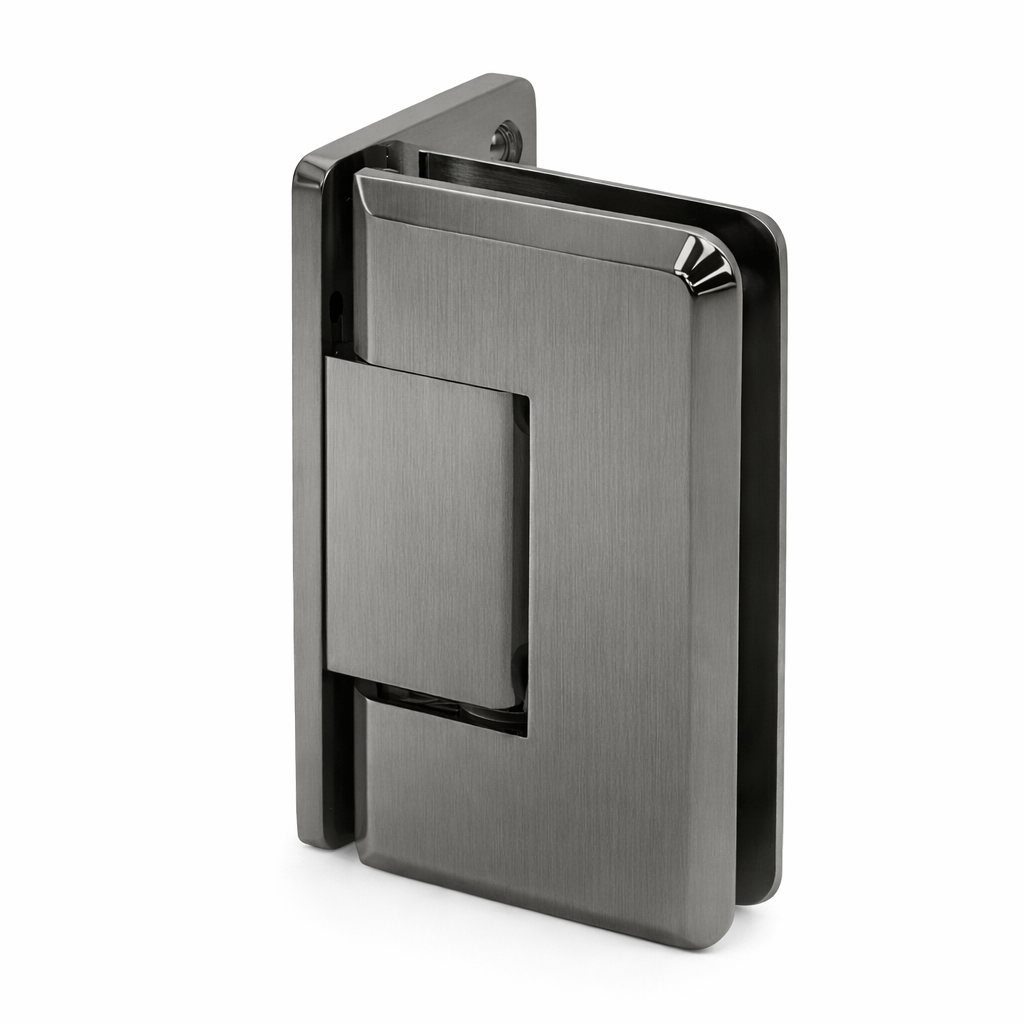

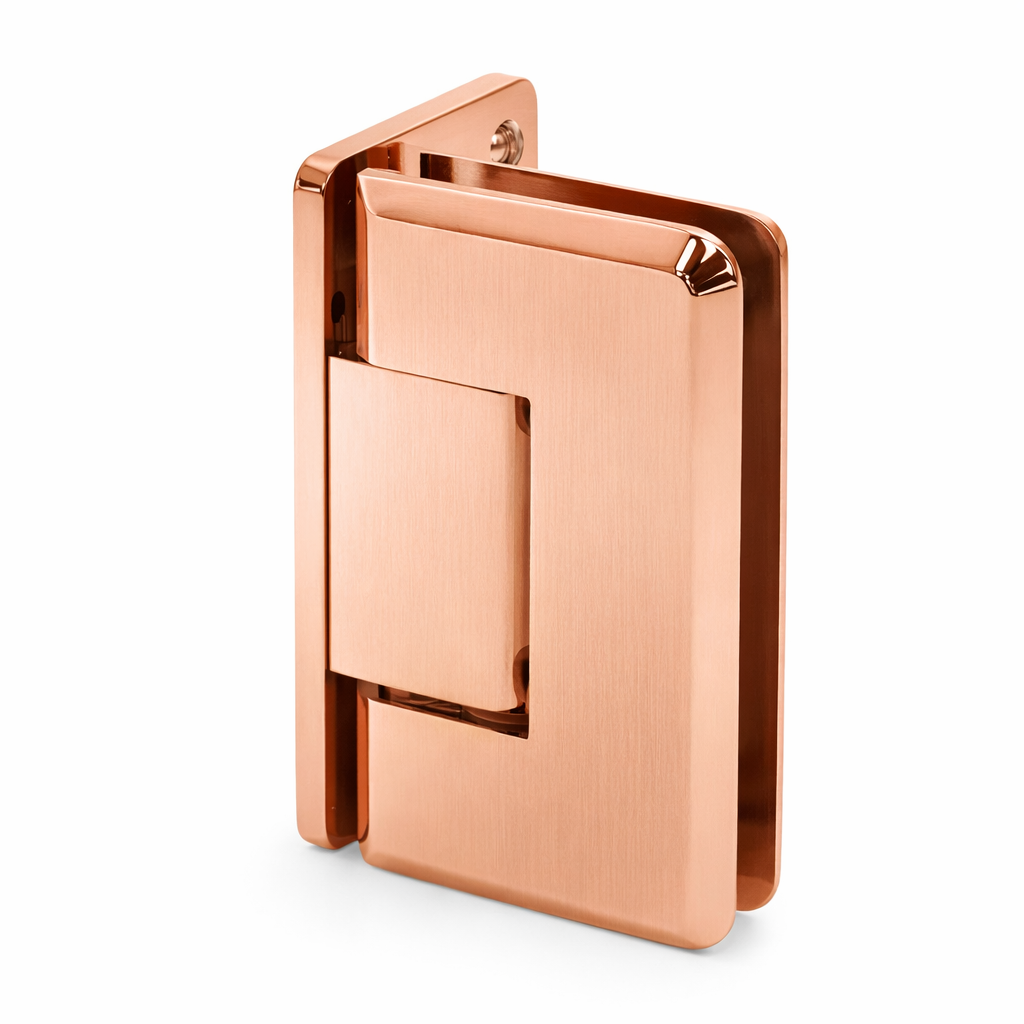

Regal Series Wall to Glass Offset Back Plate Hinge- Beveled

Glaze Hardware standard duty wall-mounted hinge with offset backplate allowing full access to the opening. The Regal Series hinge is factory-set at 90 degrees for a standard closing position, allowing a frameless appearance without the need for extensive hardware.

• Wall-Mount Offset Back Plate Standard Model

• Self-Centering Within 15° of Closing Position

• Compatible with Monolithic Tempered Glass

• Designed For 3/8" Tempered Glass

• Available in Different Finishes

Using Two Hinges: with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 80 lbs. with a maximum door width of 28". (36 kg) with a maximum door width of 28" (711 mm).

Using Three Hinges: with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).
