SKU: SUB10H-ADJ-BN

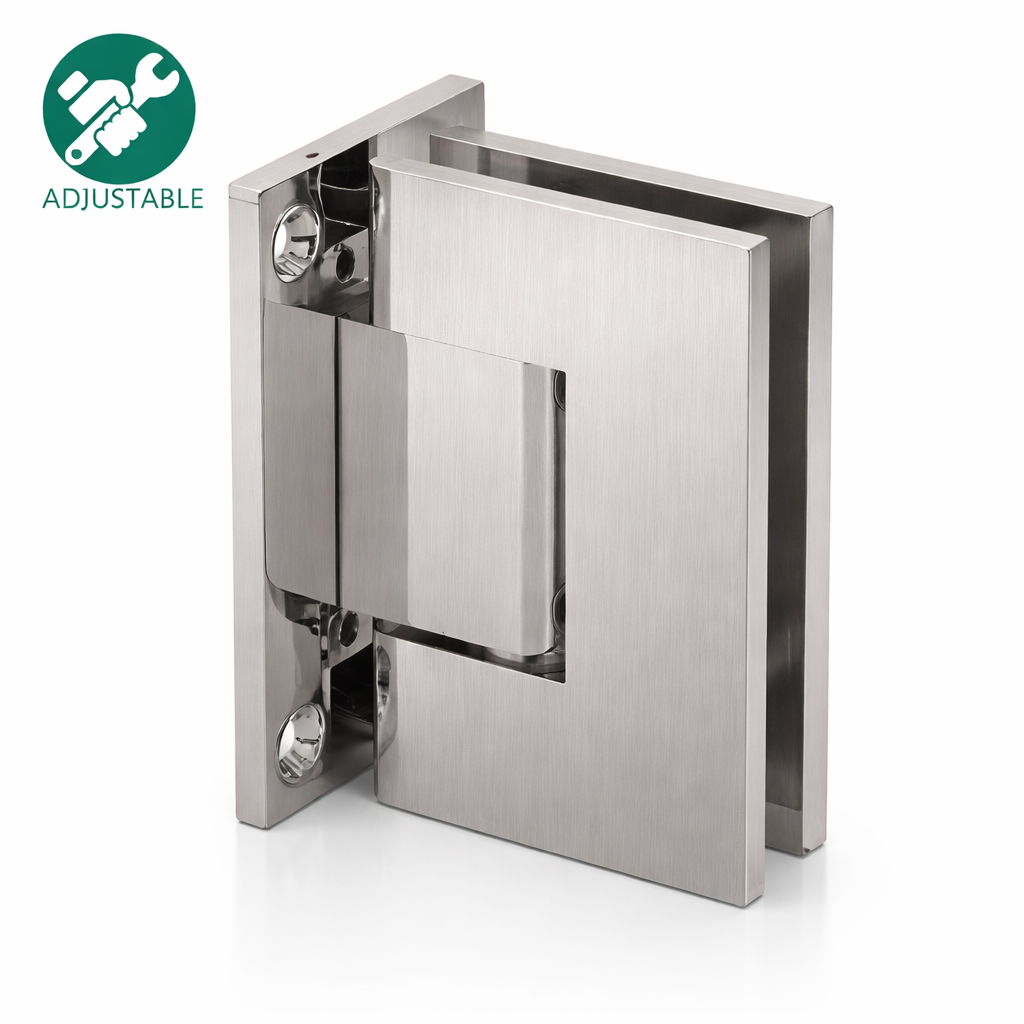

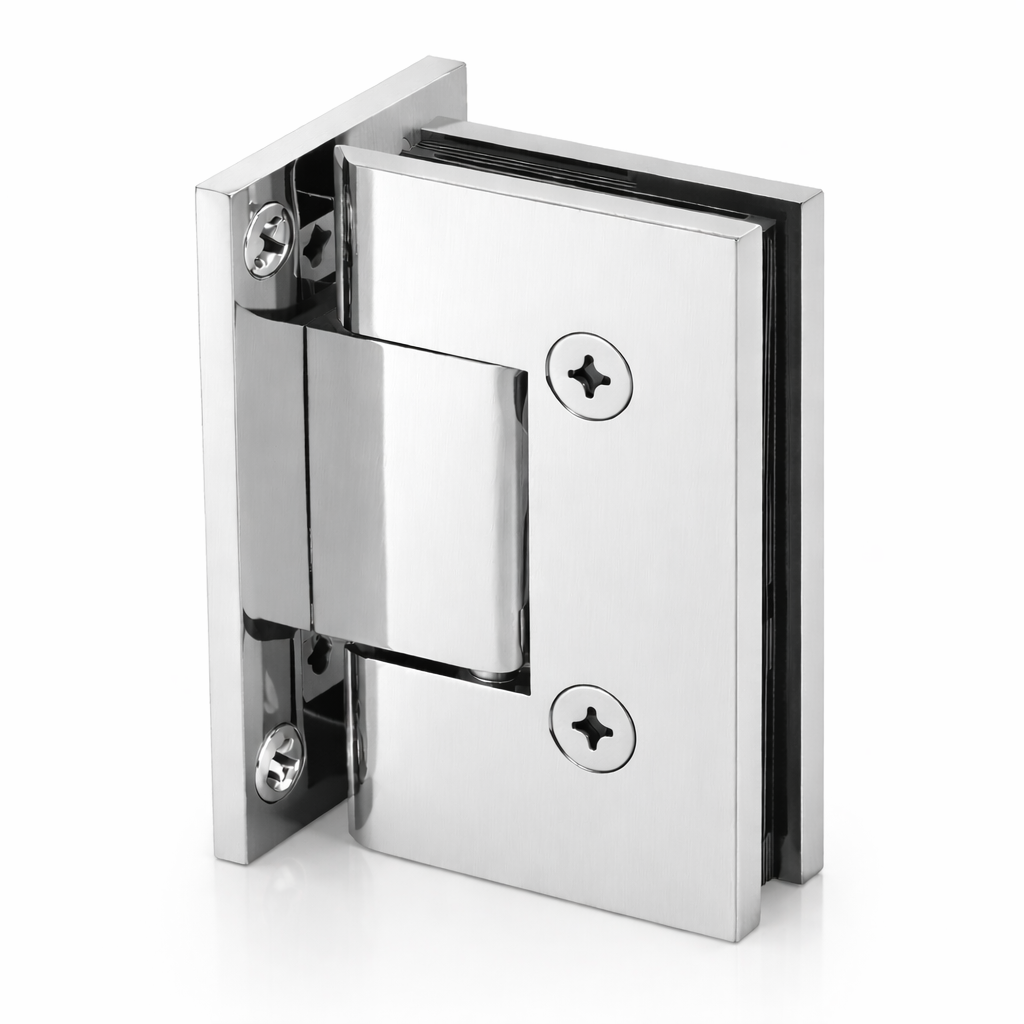

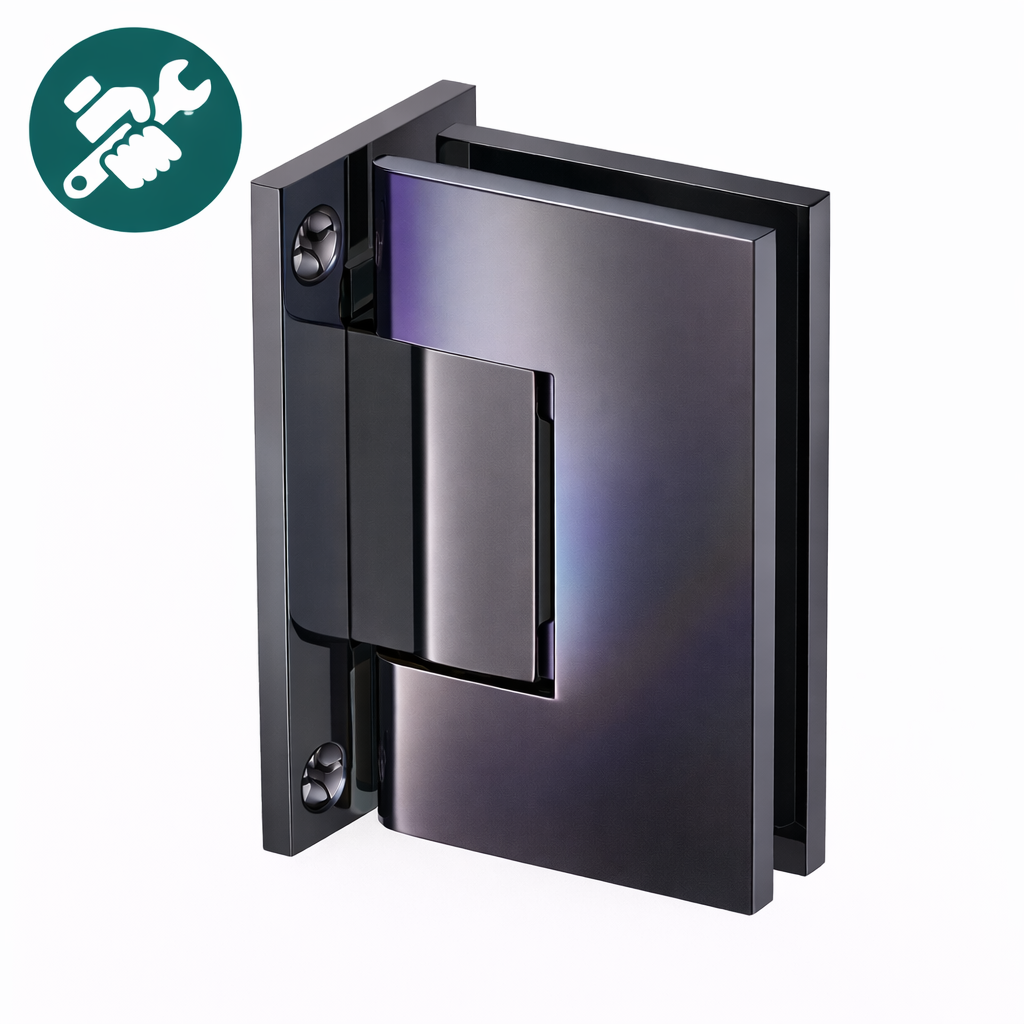

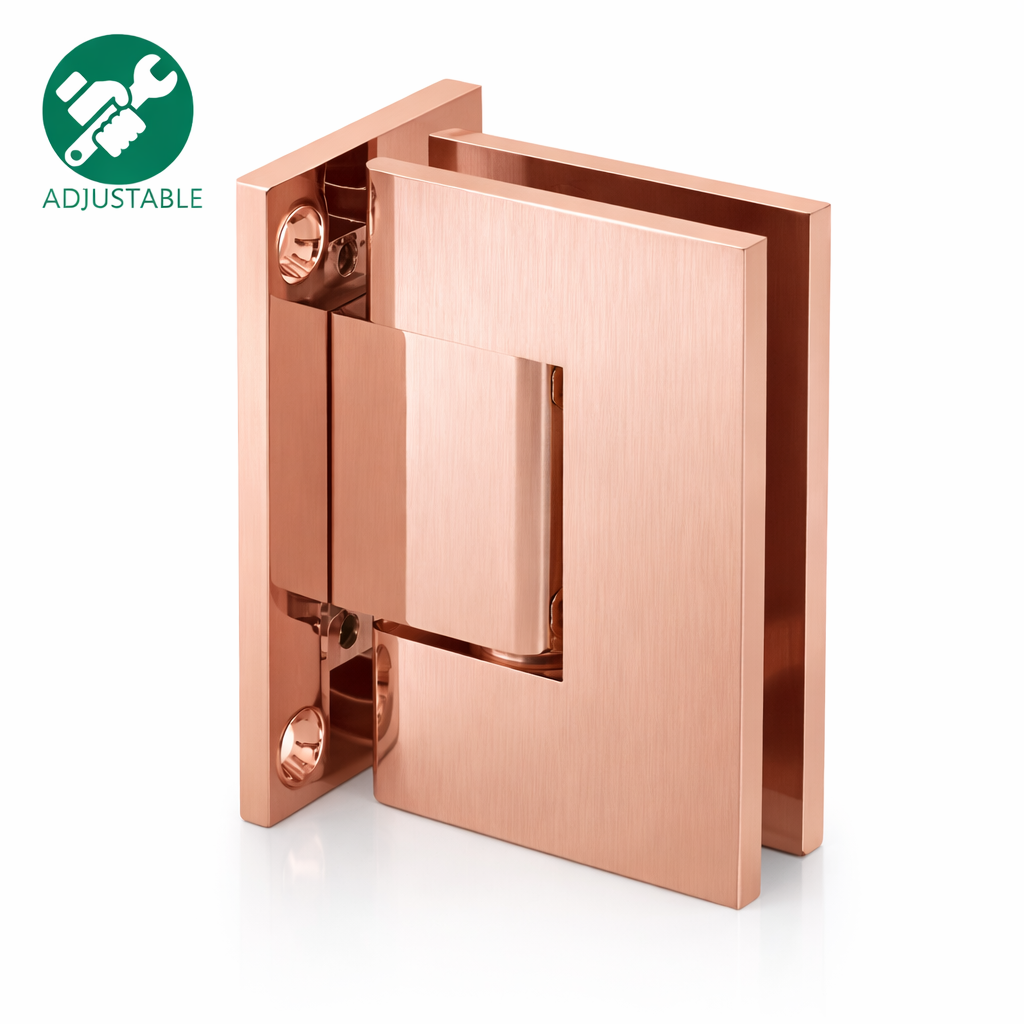

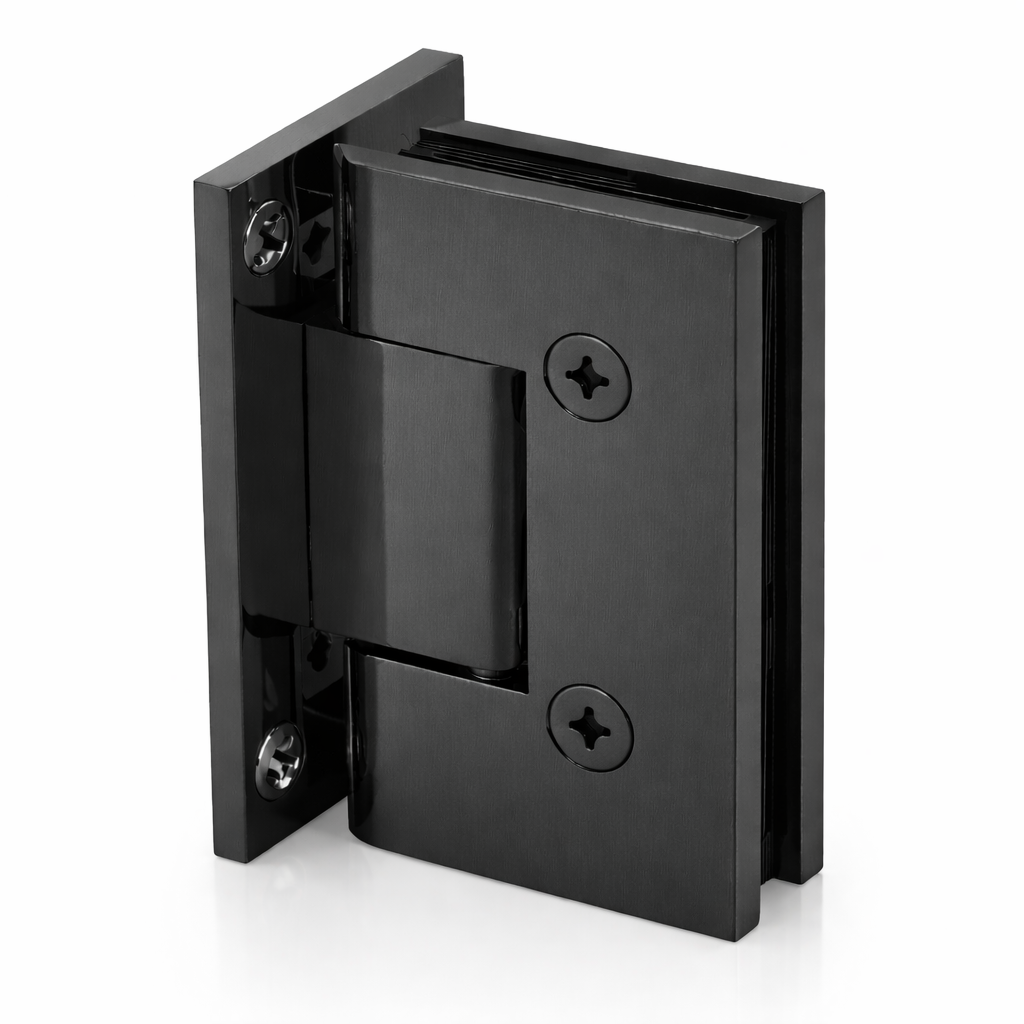

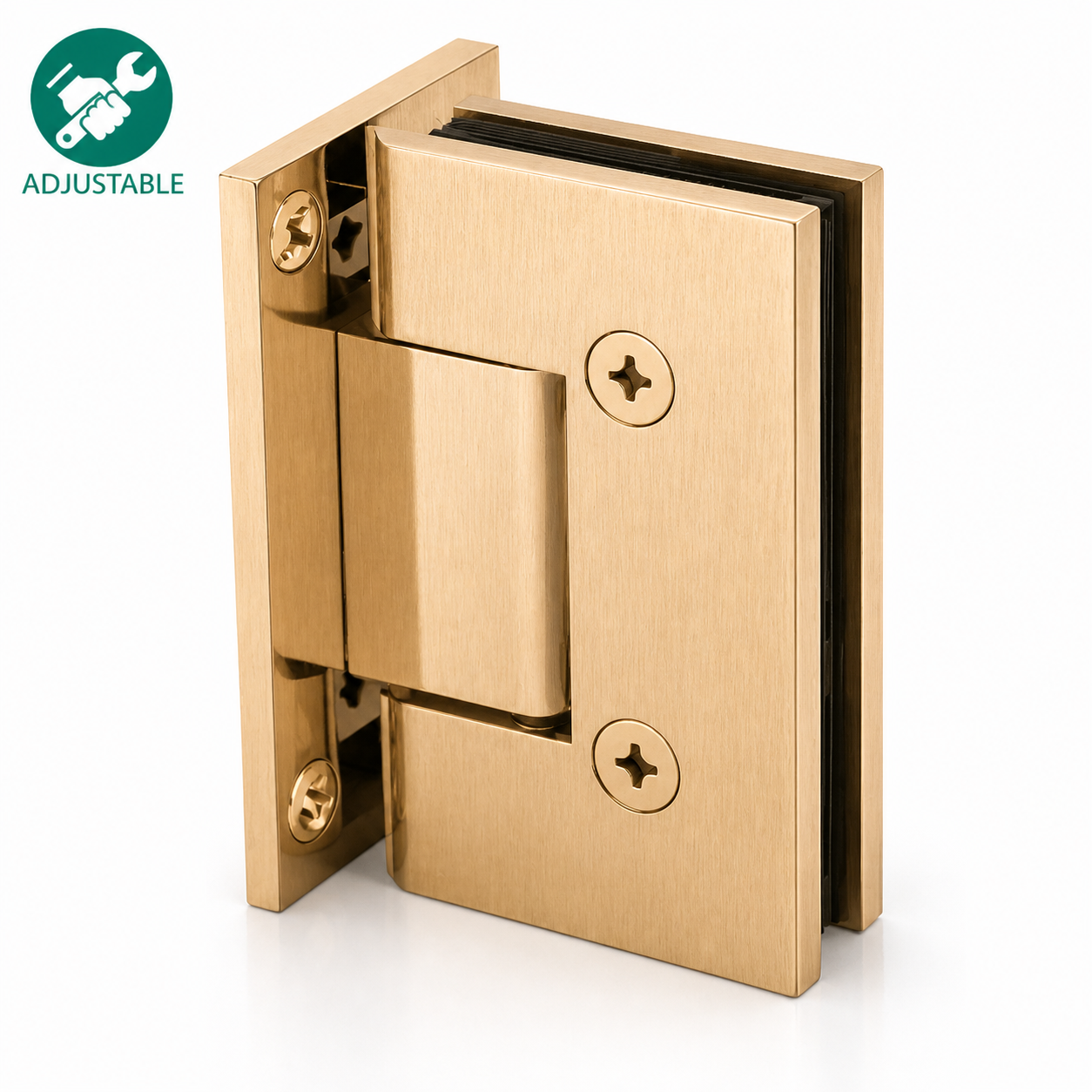

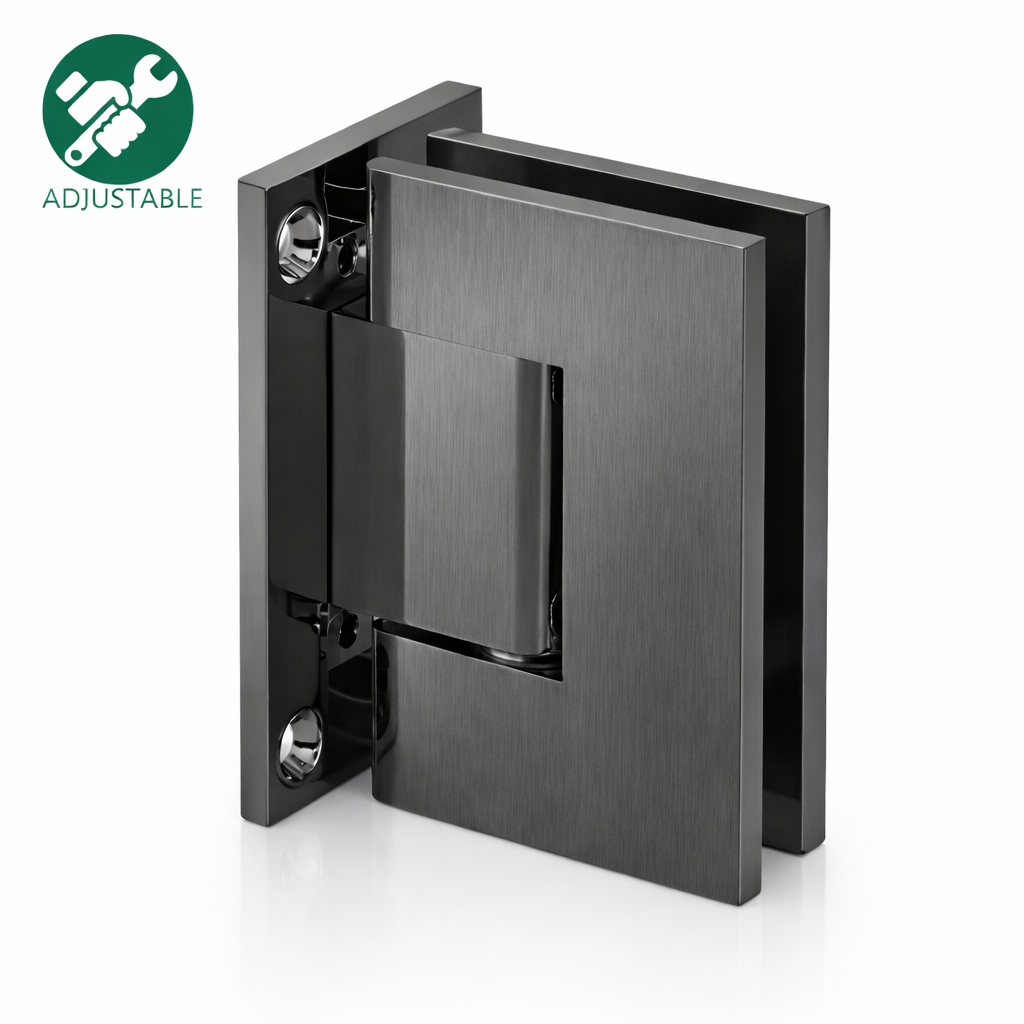

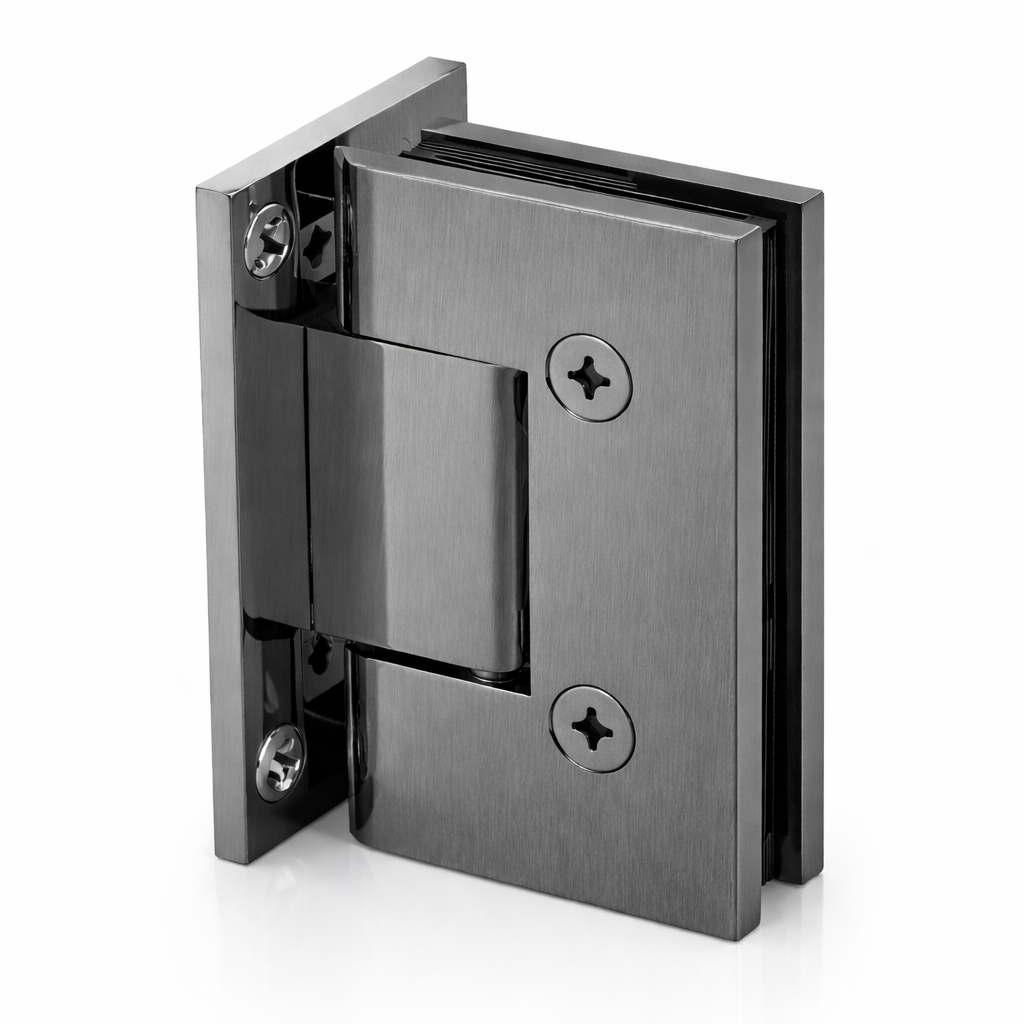

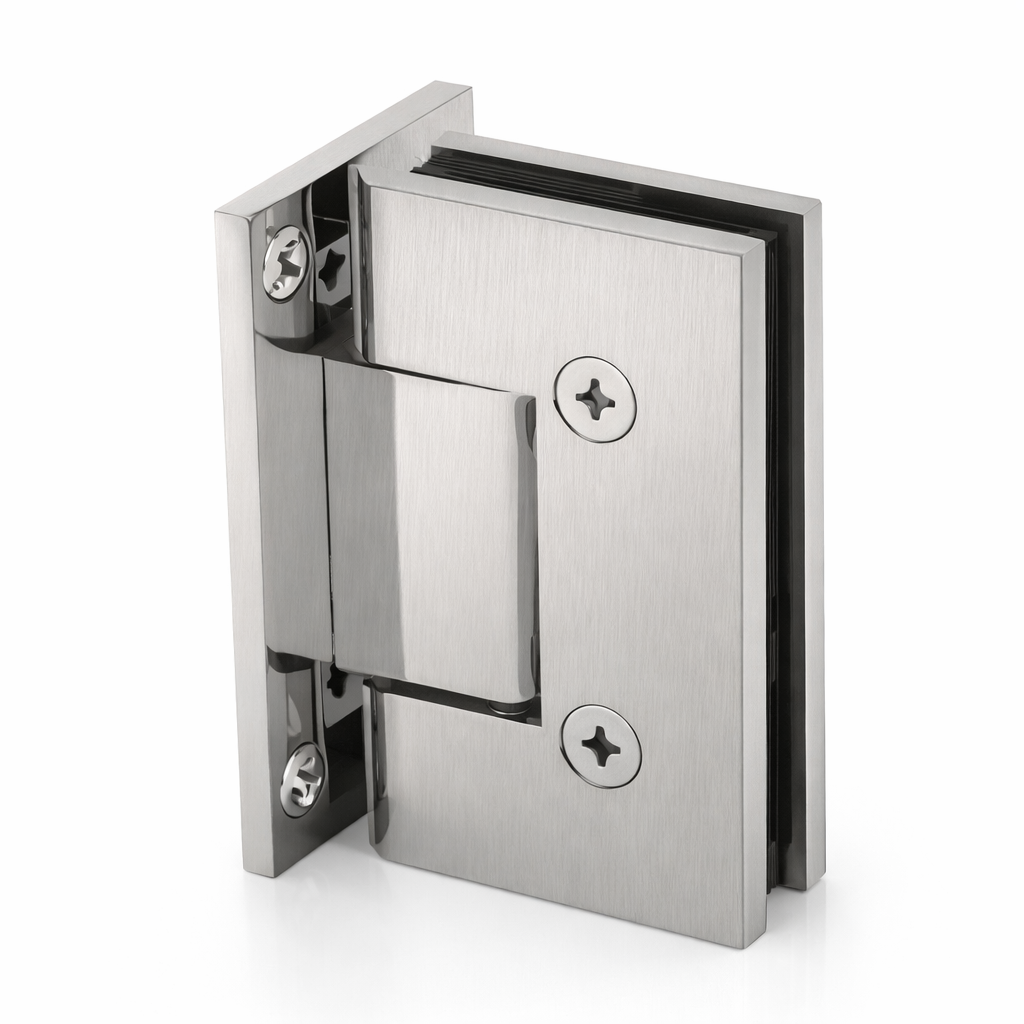

Sublime Series Full Backplate - Adjustable

To see the price please, Sign In

Technical Drawing

Same Day Shipping, Orders placed Before 3pm EST

Quality Guarantee

In stock, ready to ship

Shipping Ask about this product

Barcode:

Description

Glaze Hardware standard duty adjustable Full backplate allows full access to the opening. The Sublime Series hinge is factory-set at 90 degrees for a standard closing position with the adjustability option, allowing a frameless appearance without the need for extensive hardware.

Adjustable Full Back Standard Model

Self-Centering Within 15° of Closing Position

Compatible with Monolithic Tempered Glass

Designed For 3/8" Tempered Glass * Available in Different Finishes

BACKPLATE:

H Plate
GLASS THICKNESS:

5/16" - 1/2"
MATERIAL:

BRASS
SELF-CENTERING:

YES
5 DEGREE PRE-SET:

NO
MAX DOOR WEIGHT:

80 LBS (2 HINGES)
MAX DOOR WIDTH:

28 INCH (2 HINGES)
MODEL:

STANDARD DUTY - SUBLIME
MOUNT:

WALL MOUNT
ADJUSTABLE:

YES
