Tilt-Lock Center Concealed Mounting Spigot

Product Description

The Tilt-Lock Center Concealed Mounting Spigot secures glass panels with a compact, concealed central fixing. Its 2205 Duplex Stainless Steel construction is paired with an adjustable friction-fit clamping system for glass fencing and railing installations.

Position the panel, adjust its alignment from one side, then tighten the locking screws. Designed for 1/2″–11/16″ (12–17.52 mm) glass, the spigot clamps the panel without drilling holes or making cutouts in the glass.

The central connection uses an M12 metric fastening nut.

Features & Specifications

• Concealed center mounting configuration

• Constructed from 2205 Duplex Stainless Steel

• Compatible with 1/2″–11/16″ (12–17.52 mm) glass

• Friction-fit clamping requires no drilled holes or cutouts in the glass

• Tilt-Lock adjustment and locking screws are accessible from one side

• M12 metric central fastening nut

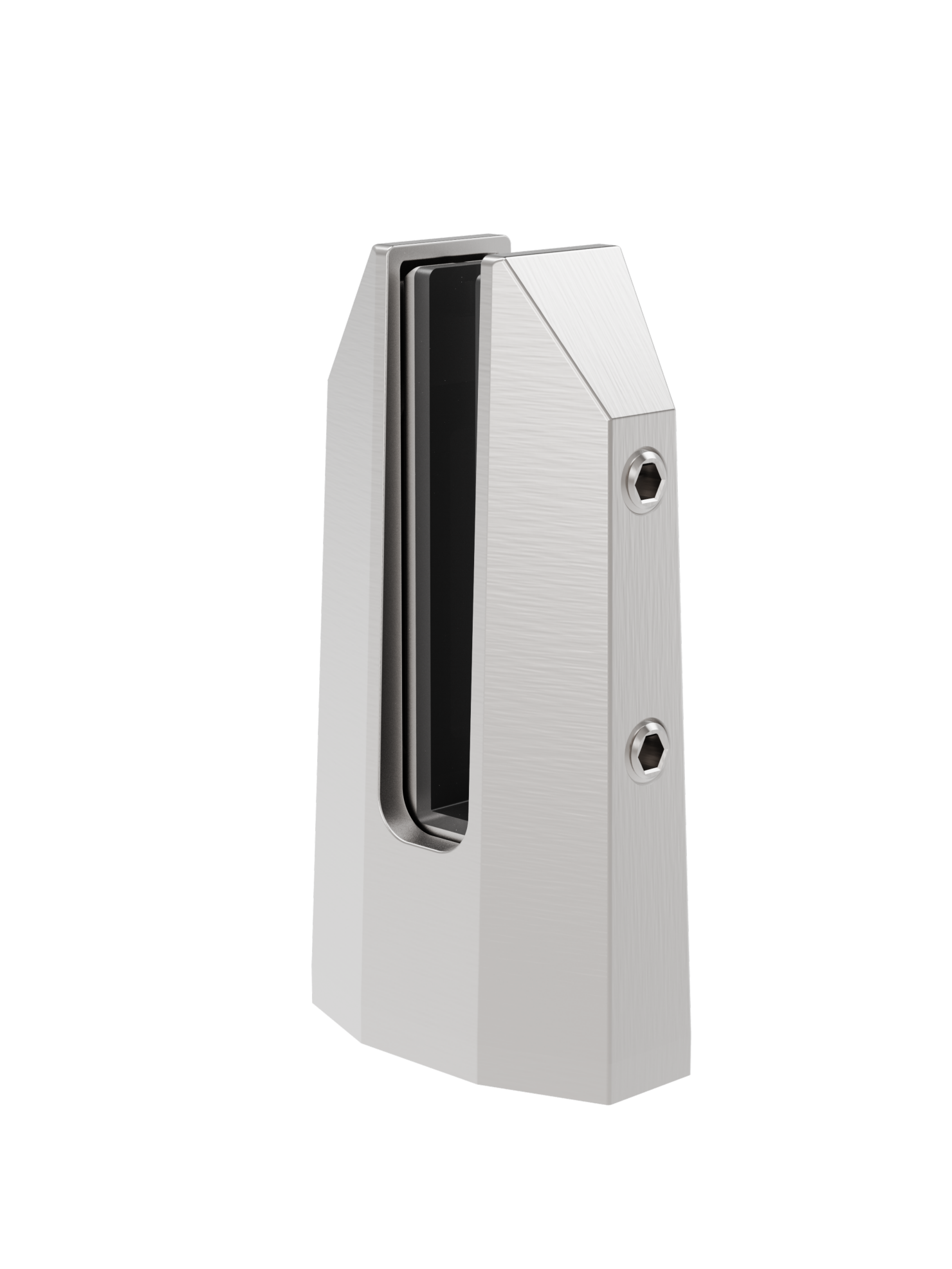

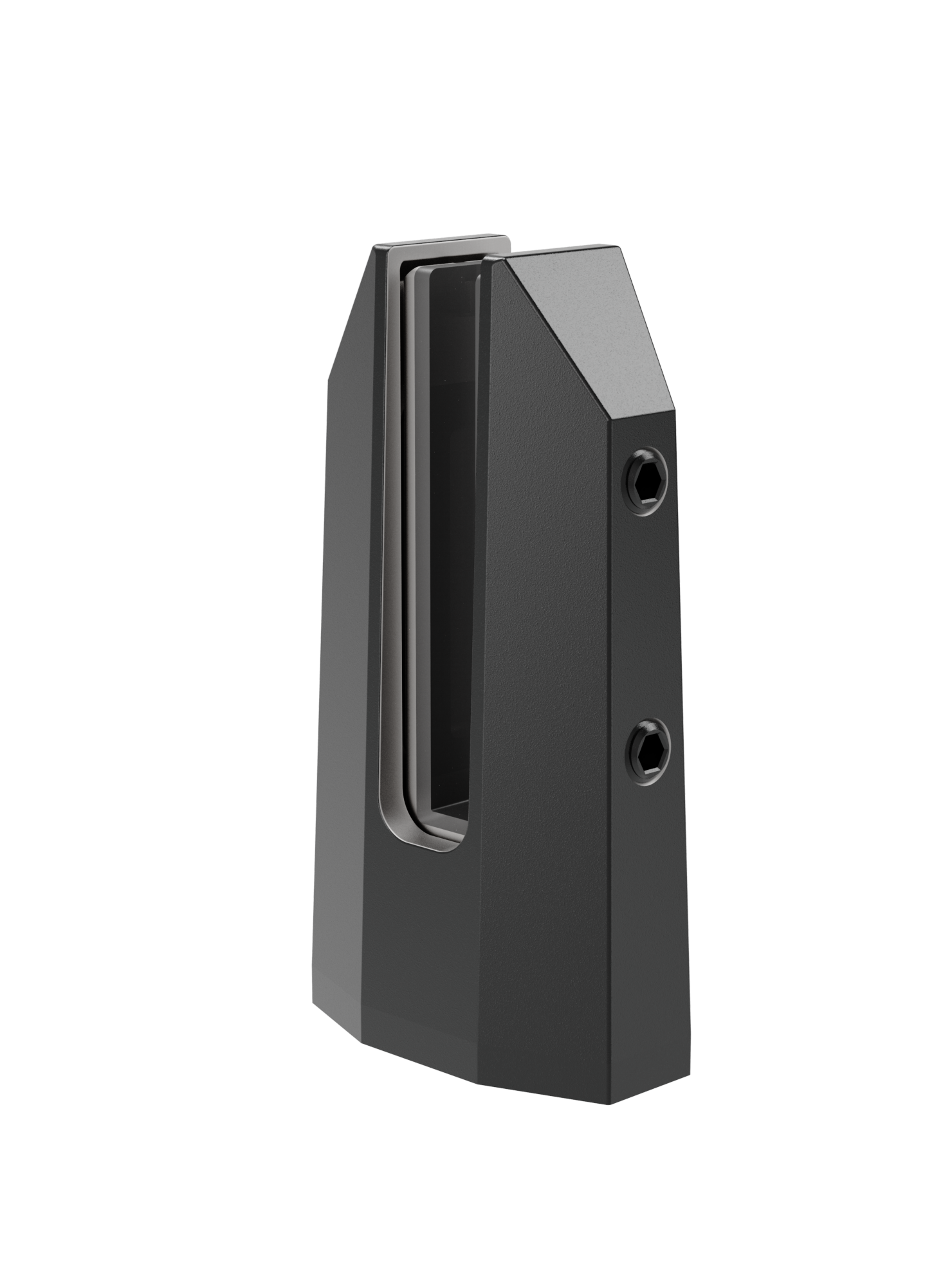

• Finishes: Brushed Stainless and Matte Black
