The Tilt-Lock Side Mounted Spigot uses a fascia-mount configuration and 2205 Stainless Steel construction. Its grub-screw adjustment lets you tilt the glass forward or backward by up to 30 mm.
Insert the glass, align the panel with a spirit level, and secure the locking screws. The system requires no drilled holes in the glass and supports 1/2″, 9/16″, 5/8″ and 11/16″ glass.
Mounting type: Fascia Mount
Material: 2205 Stainless Steel
Compatible glass thickness: 1/2″, 9/16″, 5/8″ and 11/16″
Adjustment: Forward or backward tilt up to 30 mm using the grub screws
Glass fabrication: No drilled holes required

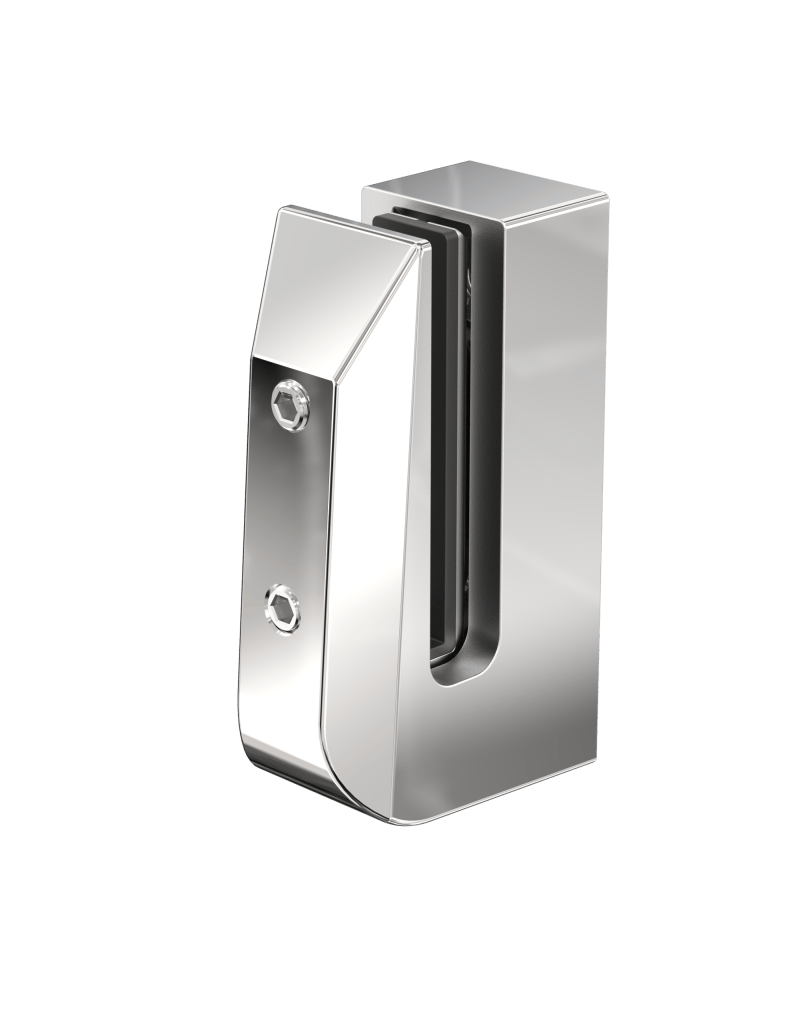

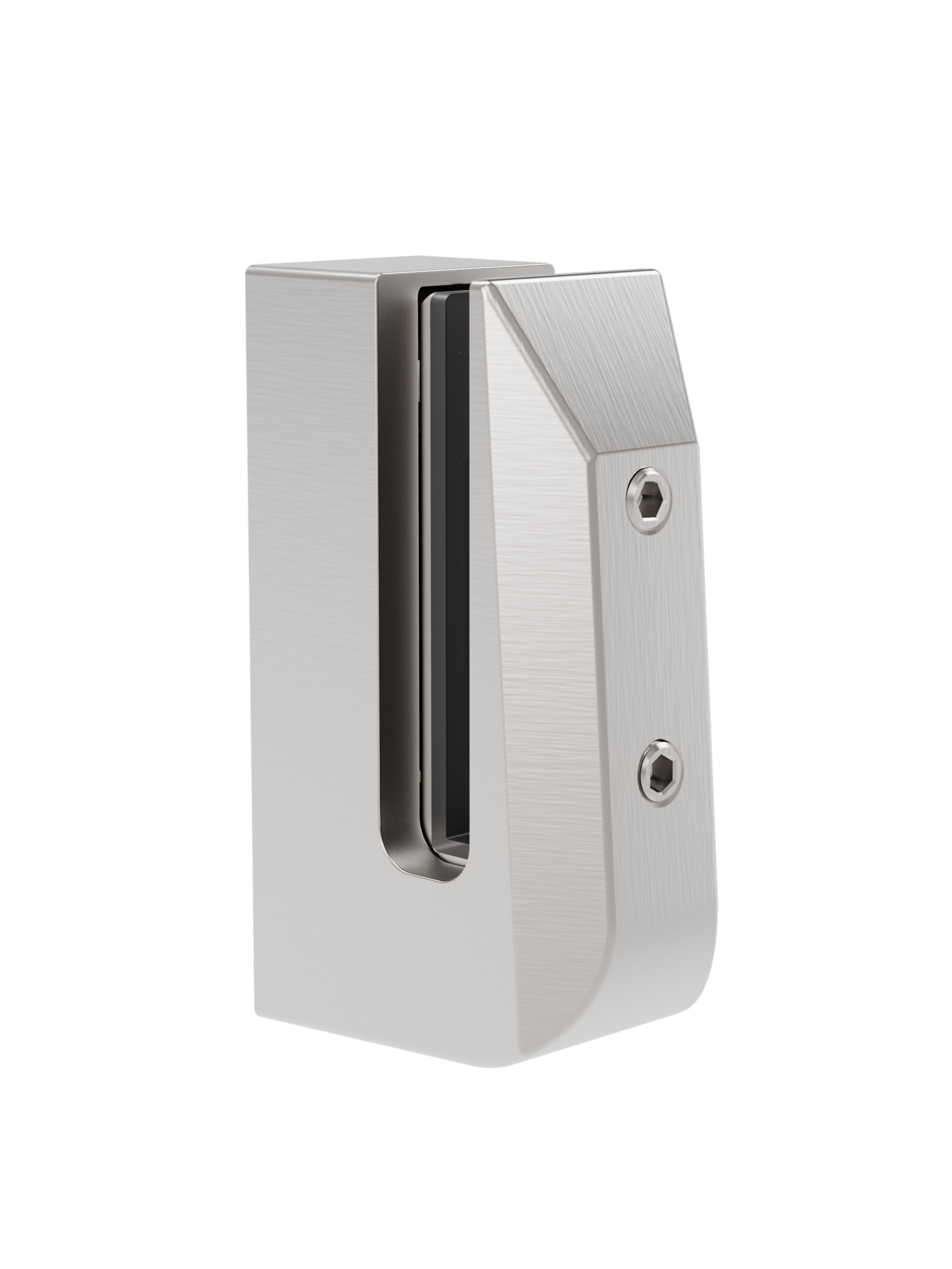

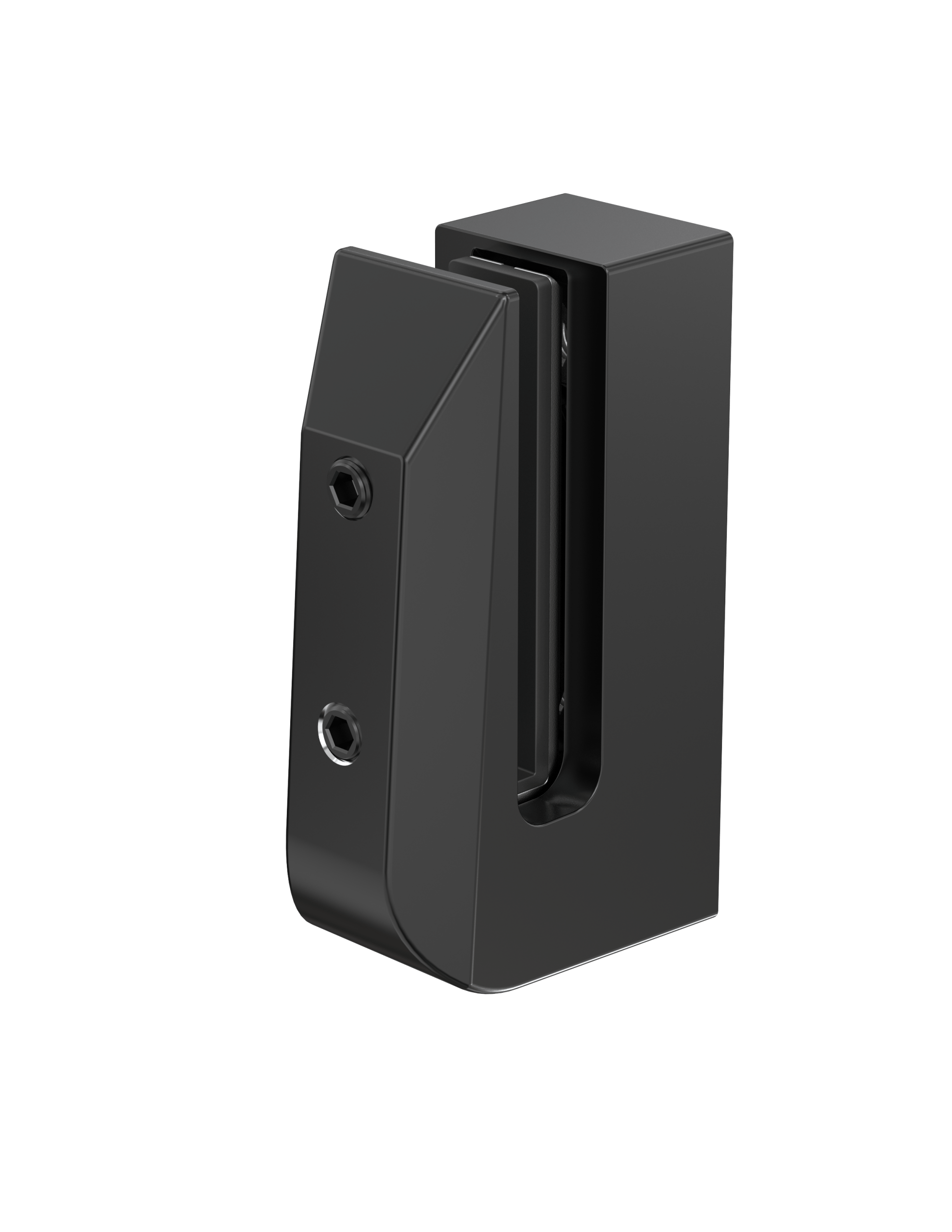

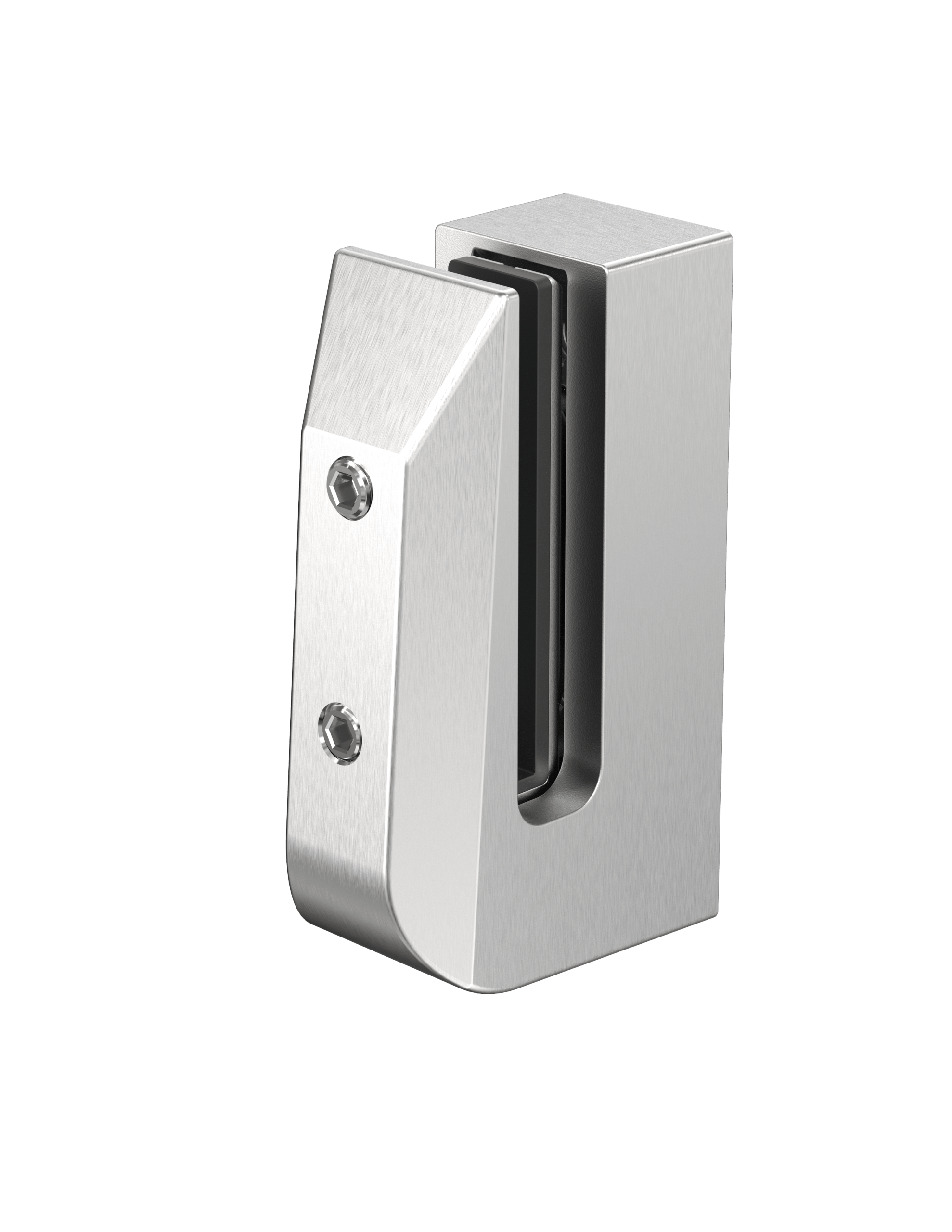

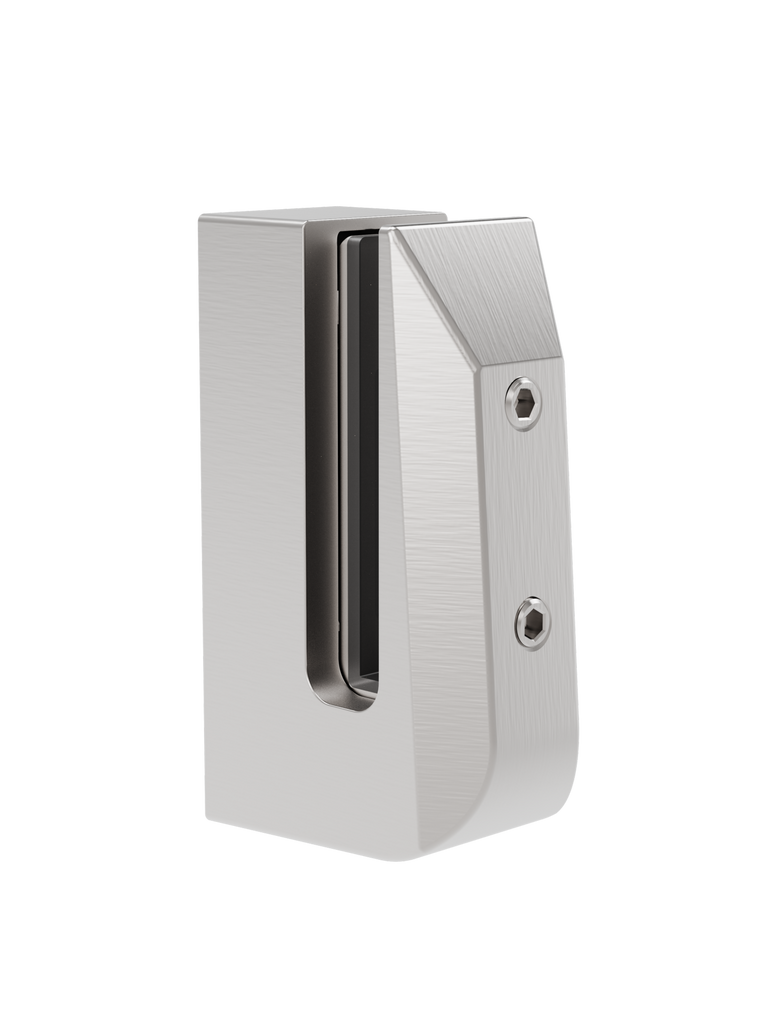

Finishes: Brushed Stainless, Polished Stainless and Matte Black
| Finish | Listed Weight | Package Size |
|---|---|---|
| Brushed Stainless | 1 lb | 6.75 × 2.75 × 1 in |
| Polished Stainless | 6.39 lb | 6.75 × 4.625 × 2.75 in |
| Matte Black | 6.39 lb | 6.75 × 2.75 × 4.625 in |
Weight and package data follow the supplier’s finish-specific listings. Package dimensions are not installed product dimensions.
