Tilt-Lock Square Base Plate Spigot

Product Description

The Tilt-Lock Square Base Plate Spigot provides a surface-mounted connection for glass fencing and railing panels. Made from 2205 Duplex Stainless Steel, it combines a square mounting plate with an adjustable friction-fit glass clamp.

Designed for 1/2″–11/16″ (12–17.52 mm) glass, the clamp allows alignment and locking from one side without drilling holes or cutting notches in the panel. The included cover plate conceals the mounting fixings for a clean finish.

Features & Specifications

• Square base plate for surface mounting

• Constructed from 2205 Duplex Stainless Steel

• Compatible with 1/2″–11/16″ (12–17.52 mm) glass

• Friction-fit clamping requires no drilled holes or cutouts in the glass

• Tilt-Lock adjustment and locking screws are accessible from one side

• Decorative cover plate included

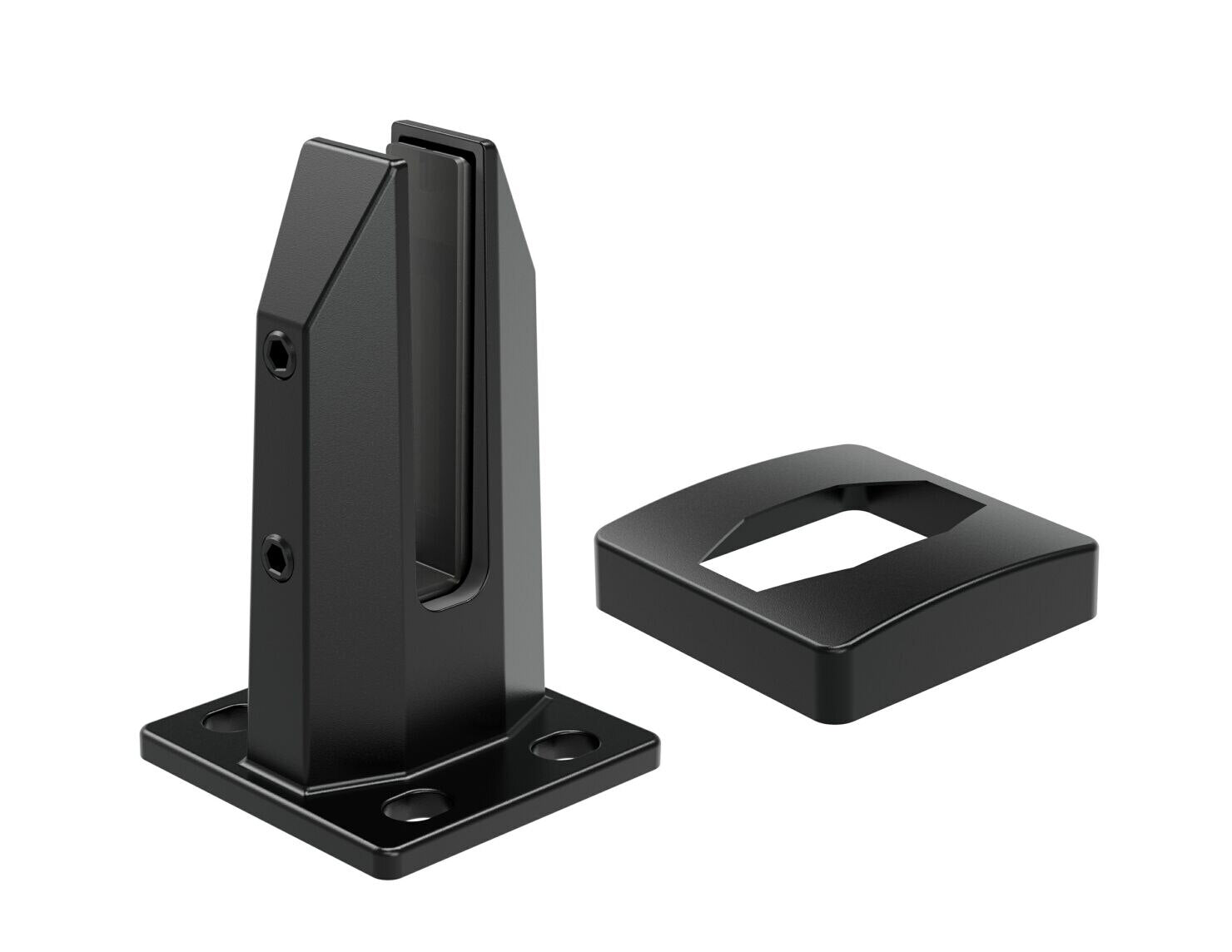

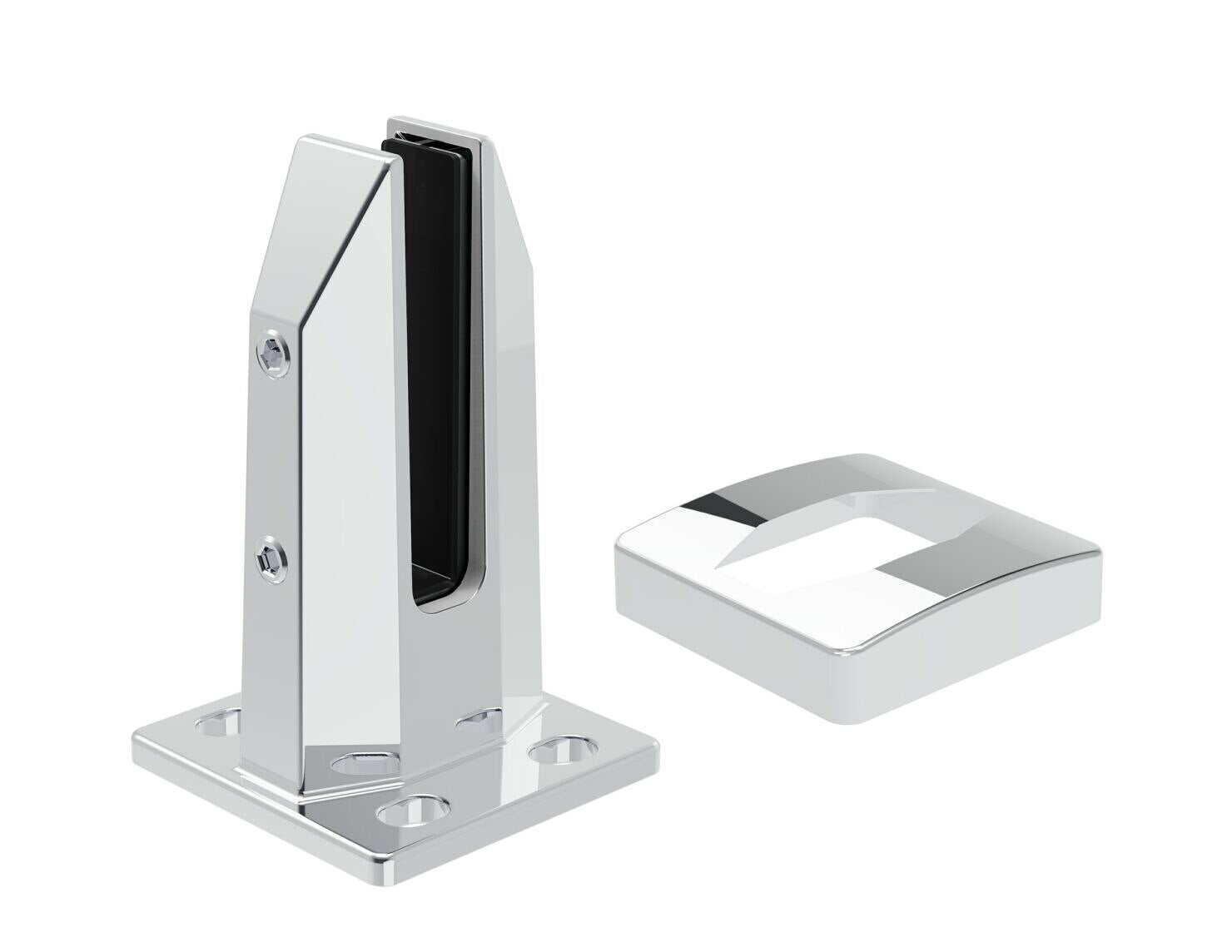

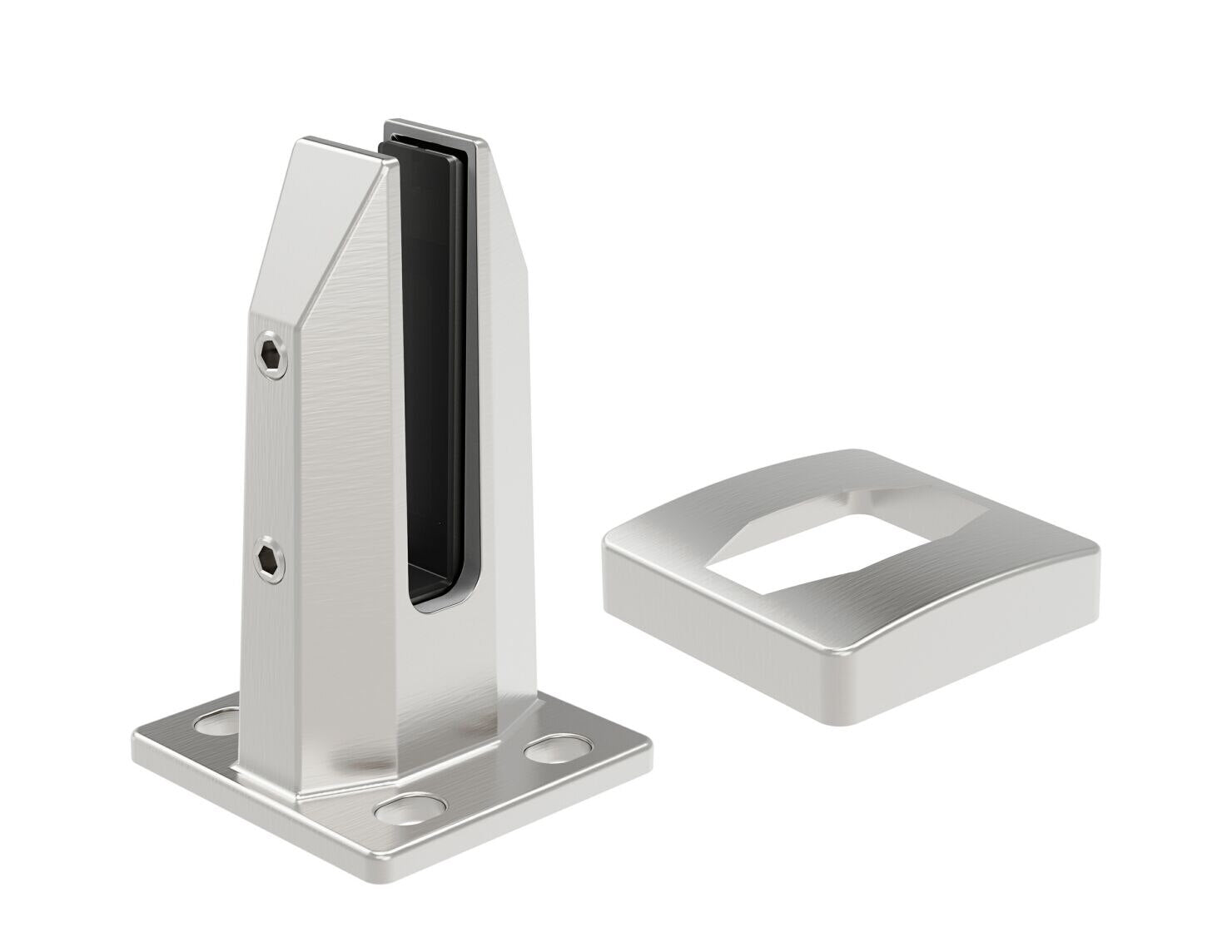

• Finishes: Brushed Stainless, Polished Stainless and Matte Black

Additional Documents

• PDFSTL8242B Technical Spec Sheet
• PDFSTL8242B Technical Drawing
